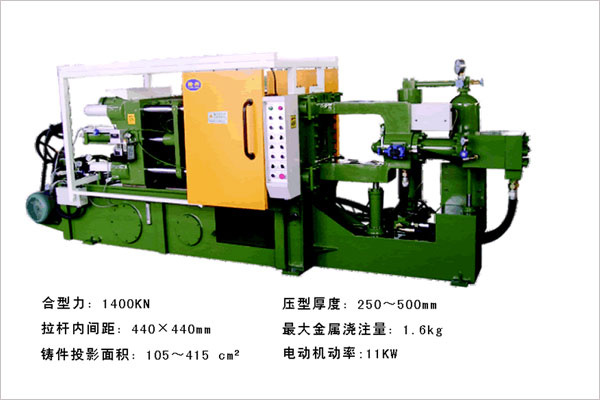

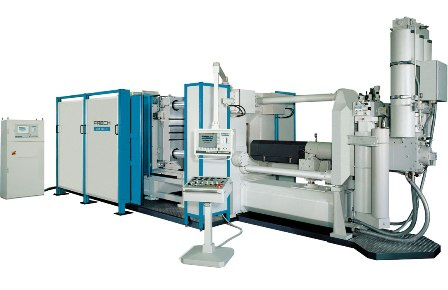

Cold Chamber Die Casting Machine 9#

Cold Chamber Die Casting Machine 9#
Price: US $ 5000/Set
Trade Terms: FOB,CFR,CIF
Min Order: 1/Set
Pay Type: L/C,T/T

The following is 250T parameters. Please contact with me for more model parameters.

Items
Design ParametersUnit
Pressure of work≤13MPa
Rated-locking force≥                 2500KN
Thedistancebetweenpoles (horizontal (vertical)    510*510mm
Big rod diameterΦ90mm
Dynamic type plate L≈400mm
The force that press a shot                   172-250KN
Injection location (0) for the center0  --  160mm
Injection chamber diameterΦ40Φ50Φ60mm
Injection stroke400mm
Allow the biggest casting projection area (including the gating system)183~580CM2
Largest amount of metal casting (aluminum)2.8Kg
Molding thickness200~580mm
Hydraulic ejection device output140KN
Hydraulic ejector ejection stroke90--100mm
A cycle time              7S
The oil pump motor power11Kw
Machine exterior size (length * width * height)5.9*1.5*2.6m
Machine weight≈9T
Mail volume600L

Specification of Brass Cold Chamber Die Casting Machine :


Specification

Unit

HM-C180

Die locking force

KN

1800

Inner space between tie bars(H*V)

mm

480*480

Die thickness

mm

220-550

Die stroke

mm

350

Ejection stroke

mm

90

Ejection force

KN

110

Injection force

KN

110-220

Injection position

mm

0,-140

Injection stroke

mm

350

Diameter of pressure chamber

mm

50,60,70

Weight of feeding metal per time(AL)

Kg

2.0

Casting projected area

Cm2

102-580

Circle period

S

7

Pipe line pressure

Mpa

13

Motor power

KW

11

Machine weight

Kg

7000

Overall dimension(L*H*W)

m

5*1.38*2.08


Prod Model: SS 125T-1600T
Markets: North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe
Warranty: 1 Year
Weight: 4.5~260tons
Power(W): 11~220kw
Voltage: 110-380V
Product: Cold Chamber Die Casting Machine
Type: Steel-Making Equipment
Certification: CE
Our company is a big exporter of various kinds of steel and iron products, metal mineral.

One of our strongest parts is steel rolling mill and machinery/ equipment & metal processing.

Here are our steel products:

Steel plate/sheet/coil, steel pipe/tube, steel bar/rod, section steel (angle bar, flat bar, channel bar, I-beam, H-beam, wire rod/steel wire and stainless steel products.

The steel rolling mill offered by us can produce steel bar/rod, section steel (angle bar, flat bar, channel bar, I-beam, H-beam, steel rails and wire rod/steel wire.

Meantime, we are also dealing with the forging, casting, machining, heat treatment, melted-zinc-bath, other equipment (motor, reducer, etc) and furnace (heating, annealing, tempering, melting and so on).

If you have any doubts, please contact us without hesitate and send us the full inquiry with the detailed specification, material, size & quantity.
