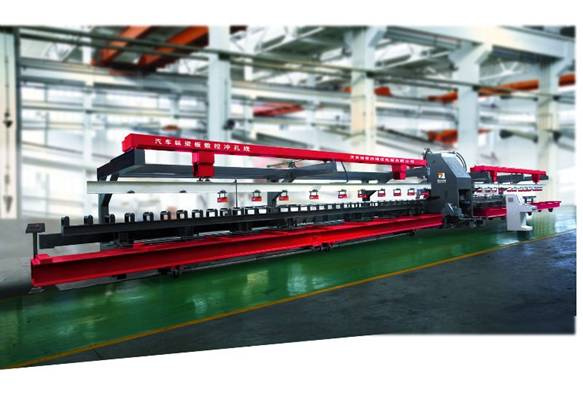

CNC Punch Machine Line for Truck U or Plate Beam (SPE/SPU)

CNC Punch Machine Line for Truck U or Plate Beam (SPE/SPU)
Price: Negotiable/Piece
Trade Terms: FOB
Min Order: 1/Piece
Pay Type: L/C,T/T
Developed the first domestic production of trucks carling board dedicated CNC punch line, especially for the automation of vehicle longitudiual beam volume punching processing, including: Flat carling punching, flat belly dual-purpose punching, ventral punching, U-type stringer wing punching, U-type carling ventral wing surface and three face punching processing at the leading level in the industry, is currently with the world first-class car carling production processing equipment.

Pairs of the Host Ventral Punch Line: With the size of two hosts and small hosts with the XY direction find two holes feature, which greatly improve the processing efficiency. Each host with a before and after detection, the shape of carling and conduct precision of automatic measurement error compensation; Even if the beam with s different wing surfaces for positioning the base.
             Type
specification
STPK SPKA SPU SPU three face
Nominal force KN 800~1200 800~1200 450 800 1200/600 2100/600 1200/600
Max sheet thickness (16Mnl) mm 10 10 6 10 10 12 10
MAX sheet size Beam length mm 12000 12000 7000 12000 12000 12000 12000
Outside width mm 600 600 200 360 400 400 400
Flange height mm - - 80 100 100 100 100
Max one punching diameter mm 50 50 40 40 60/30 60/30 50
Number of stations set 20/50 20/50 20 21 25/6 25/6 20/25
Max workpiece weight kg 560 560 100 500 560 560 560
Clamp of number PC 10 4 2 2 2 2 3
Prod Model: SPE/SPU
Markets: North America,South America,Eastern Europe,Southeast Asia,Mid East,Eastern Asia
Jinan Foundry And Metalforming Machinery Research Institute Co., Ltd. Was founded in 1956 as a research institute, which is controlled by Chinese government. We specialize in the design and manufacture the metalforming and foundry machines, such as, CNC Turret Punch Press, Hydraulic Press Brake, CNC Laser Cutting Machine, Cut-to-length Line, Slitting Line, Ring Rolling Mill, Bending and Punching Line for Truck Beam, complete set of green sand equipment: High-pressure squeeze moulding line with HWS main machine; Sand preparation line; Low-pressure casting machine for aluminum. Core making machine.

Jinan Foundry and Metalforming Machinery Research Institute is a primary science & technology centre specializes in foundry, metalforming and hydraulic industry which belong to the former Ministry of Machinery Industry of China.

In the institute, there are more than 1000 workers and staff members, among them technical personnel accounts for 70% and the senior engineer accounts for 20%. Some experts and academic leaders who enjoy special allowance from the State Council are also included JFMMRI can not only manufacture foundry and metalforming machinery, CNC laser processing machinery, and hydraulic components (such as plate processing producing line, special and general mechanical press, etc. ). But also provide the supervision and inspecting of the quality of these machines as well as the related technical service. The products with advanced technology have mainly applied in the automobile, steel, electric power, vessel, energy, aerospace, and military industry.

JFMMRI is also responsible for the technology organization and service for the National Foundry and Metalforming Machinery Industry. National Quality Supervision ad Inspection Center for Foundry and Metalforming Machinery, National Technology Committee for Foundry and Metalforming Machinery, Foundry Branch and Metalforming Branch of China Machine Tool & Tool Builders' Association Mechnical Products have located in JFMMRI. The key scientific and technical periodical China Foundry Equipment Technology and China Metalforming Equipment & Manufacturing Technology have been published. So JFMMRI plays a crucial part on the development of China national machinery industry.

With more than 50 years history & experience and excellent professional team, JFMMRI promotes the development of foundry and metalforming machinery industry in China. Up to now, JFMMRI has already achieved more than 3100 items of national and city programs. Among them, science & technology projects are more than 1500 items and the patents are more than 150 items.

"Fast, Reliable and Professional customer service" is the belief of our company. With professional team, we would quickly find a complete effective solution to our customers' wishes in domestic and international market.
