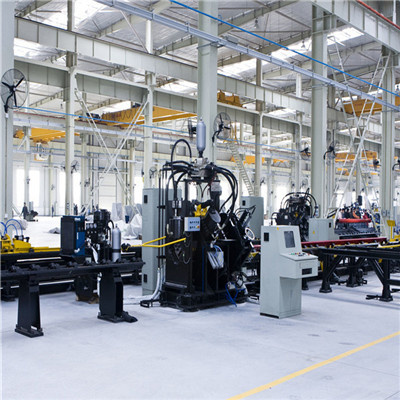

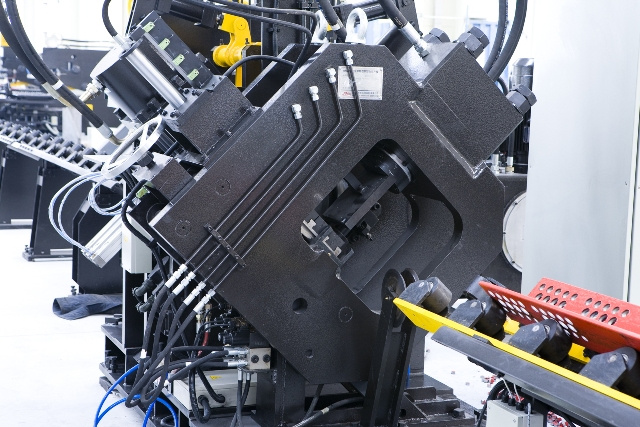

CNC Machines For Angles (APM1412)
| Price: |
Negotiable/Piece |
| Trade Terms: |
FOB,CIF |
| Min Order: |
1/Set |
| Pay Type: |
L/C,T/T |
Model APM1412
Angle size(mm) 56x56x4---140x140x12(Q420)
Max. Workpiece length (m) 12
Max. Punching capability(D x T mm) φ 25.5x12
Nominal punching force (kN) 950
Nominal marking force (kN) 1030

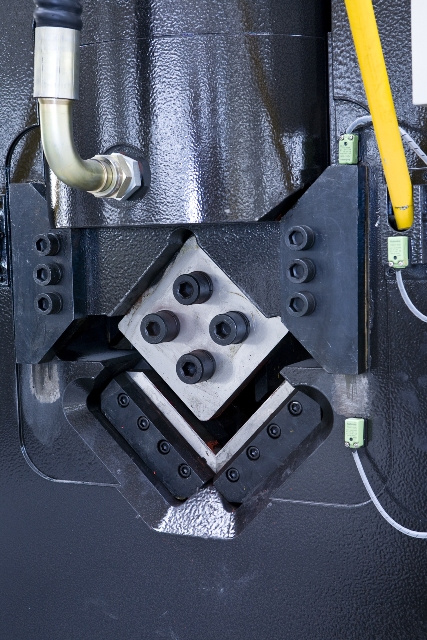

Nominal cutting force (kN) 1800
No. Of character group (piece) 4
No. Of character in each character group (piece) 15
Character size(mm) 14x10x19
Range of stadia(mm) 20---170 (stepless)
No. Of punch on each side (piece) 3
Max feeding speed(m/min) 40
No. Of CNC axis (piece) 3
Overall size(m) 30x7.5x3
Total power(kW) 31.4
Machine weight(t) Approx. 16
| Model | APM1412 | APM2020 |
| Angle Size (mm) | 56x56x4~140x140x12
(Q420) | 63x63x4~200x200x20
(Q235-A or16Mn) |
| Max. workpiece length (m) | 12 | 14 |
Max. punching capacity
(DxT mm) | Φ25.5mm x12mm | Φ26mm x20mm |
| Nominal punching force (kN) | 950 | 1100 |
| Nominal marking force (kN) | 1030 |
| Nominal cutting force (kN) | 1800 |
| No. of character group (piece) | 4 |
| No. of character in each character group (piece) | 18 |
| Character size (mm) | 14x10x19 |
| Range of stadia (mm) | 20~170 (stepless) |
| No. of punch on each side (piece) | 3 |
| Max. feeding speed (m/min) | 40 |
| No. of CNC axes (piece) | 3 |
| Overall size (m) | 26x7x3 | 32x7x2.2 |
| Total power (kW) | 31.4 | 43.5 |
| Machine weight (kg) | Approx. 15000 | Approx. 17000 |
| Prod Model: |
APM1412 |
| Markets: |
North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe |
| CNC: |
High Precision |
| Voltage: |
380V, 415V |
| Color: |
Yellow, Black, Grey |
| CNC Or Not: |
CNC |
| Type: |
Punching Machine |
SHANDONG FIN CNC MACHINE Co., Ltd. is a high-tech enterprise certificated by Chinese Government. There are more than 700 employees in FIN at present, among which over 300 are undergraduates. FIN is mainly engaged in development, manufacture and sale of CNC machines such as drilling, milling, punching, sawing, cutting machines and other optical, mechanical and electronic integration equipments. The purpose of FIN is to timely and promptly track international new technologies and make continuous innovation in technology for manufacturing high-grade equipments; Innovate in traditional industry with information technology, actively design optical, mechanical and electronic integration equipments for improving national industry; Focus on the industries of electric power, steel structure and automobile which have greater influences in national economy and people's livelihood. We are devoted to developing key technologies and producing CNC complete equipments for offering the best services to our customers. FIN has concentrated products and distinctive main lines of business. Its dominant products are series of whole set of CNC machines used in steel construction industry which fully embodies CNC machine's characteristics, such as integration, composition, more efficiency, more largeness and more flexibility. FIN concentrated on finding a good solution for profile bar, plates of middle thickness and also for wire bar industry. Besides steel construction industry (including communication and transmission tower industry), FIN's machines can be also extended to other industries to process the parts similar to the one used in steel construction industry. The other industries are as follows: Equipment for generating electricity industry, central refrigeration industry, desalinization of seawater industry, heavy vehicle industry, petrochemical industry, equipment for processing stone industry, construction machinery & equipment, mine machinery, construction equipment and port machinery industry, with totally more than 190 kinds of products. Some products of the above were ranked international Science & Technology Cooperative Project, Science & Technology Conquest Project, "Torch Program" Execution Project, Nation-Grade Important New Product Project and also had gotten Science & Technology Improvement Prize many times. FIN was awarded as the advanced, sincere and trustworthy enterprise by Jinan municipality and Shandong Province. Many national construction projects applied FIN's machines and many large-scaled enterprises bought machines from FIN in succession, such as BAO STEEL Ltd., SHOUGANG GROUP, MA STEEL, LAIGANG, GUAN DA ER, HANG XIAO STELL STRUCTURE, JING GONG STEEL, HAIER, QING DAO DONG FANG STELL TOWER Co., Ltd, CHANG AN STEEL, ZHE JIANG SHENG DA and BEHLEN. FIN's machines have been providing effective quality guarantee for their large-scale production, and at the same time this situation promotes FIN's development greatly. In the past three years, FIN's market share takes up more than 60% in Chinese market. FIN keeps the spirit of "Be dedicated to Everything, We Do; Be sincere and Trustworthy, Our Long Principle", and is glad to set a new achievement together with FIN's former and new clients and will try our best to be a pioneer in optical, mechanical and electronic integration equipments.
