We supply superior quality of flanges, which is available in various shapes, material and pressure rating.
Standard: ASME B16.5, B16.47, B 16.36, B16.48, DIN, JIS etc.
Type: Slip on, lap joint, weld neck, socket weld, threaded, blind
Facing types: Flat face, raised face, tongue, groove, female, male, ring joints face
Material grade:
ASTM a181-60; A105, a350 lf2, lf3; A182 f12, f11, f22, f5, f9; A694 f42, f46, f52, f56, f60, f65, f70
Size: 1/2"through 60"

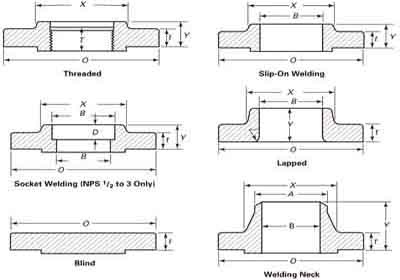

Technical specification (asme b16.5):
|
Nominal Pipe Size NPS |
Outside Dia. of Flange
O |
Thickness of Flange
t |
Diam. of Hub
X |
Hub Dia. of Chamber WN
A |
Length Through Hub Y |
Thread length
T |
Bore B |
Depth of Socket
D |
|
Threaded Slip on Socket Welding |
Lapped |
Weld Neck |
Slip on Socket Welding |
Lapped |
Weld Neck Socket Welding |
|
1/2' ' |
89 |
11.2 |
30.2 |
21.2 |
15.7 |
15.7 |
47.8 |
15.7 |
22.4 |
22.9 |
15.7 |
9.7 |
|
3/4' ' |
99 |
12.7 |
38.1 |
26.8 |
15.7 |
15.7 |
52.3 |
15.7 |
27.7 |
28.2 |
20.8 |
11.2 |
|
1' ' |
108 |
14.2 |
49.3 |
33.5 |
17.5 |
17.5 |
55.6 |
17.5 |
34.5 |
35.1 |
26.7 |
12.7 |
|
1 ¼ ' ' |
117 |
15.7 |
58.7 |
42.1 |
20.6 |
20.6 |
57.2 |
20.6 |
43.2 |
43.7 |
35.1 |
14.2 |
|
1 ½ ' ' |
127 |
17.5 |
65.0 |
48.3 |
22.4 |
22.4 |
62.0 |
22.4 |
49.5 |
50.0 |
40.9 |
15.7 |
|
2' ' |
152 |
19.1 |
77.7 |
60.4 |
25.4 |
25.4 |
63.5 |
25.4 |
62.0 |
62.5 |
52.6 |
17.5 |
|
2 ½ ' ' |
178 |
22.4 |
90.4 |
73.2 |
28.4 |
28.4 |
69.9 |
28.4 |
74.7 |
75.4 |
62.7 |
19.1 |
|
3' ' |
191 |
23.9 |
108.0 |
90.0 |
30.2 |
30.2 |
69.9 |
30.2 |
90.7 |
91.4 |
78.0 |
20.6 |
|
3 ½ ' ' |
216 |
23.9 |
122.2 |
101.4 |
31.8 |
31.8 |
71.4 |
31.8 |
103.4 |
104.1 |
90.2 |
-- |
|
4' ' |
229 |
23.9 |
134.9 |
114.3 |
33.3 |
33.3 |
76.2 |
33.7 |
116.8 |
116.8 |
102.4 |
-- |
|
5' ' |
254 |
23.9 |
163.6 |
141.3 |
36.6 |
36.6 |
88.9 |
36.6 |
143.8 |
144.5 |
128.3 |
-- |
|
6' ' |
279 |
25.4 |
192.2 |
168.3 |
39.6 |
39.6 |
88.9 |
39.6 |
170.7 |
171.5 |
154.2 |
-- |
|
8' ' |
343 |
28.4 |
246.1 |
219.2 |
44.5 |
44.5 |
101.6 |
44.5 |
221.5 |
222.3 |
202.7 |
-- |
|
10' ' |
406 |
30.2 |
304.8 |
273.0 |
49.3 |
49.3 |
101.6 |
49.3 |
276.4 |
277.4 |
254.5 |
-- |
|
12' ' |
483 |
31.8 |
365.3 |
323.8 |
55.6 |
55.6 |
114.3 |
55.6 |
327.2 |
328.2 |
304.8 |
-- |
|
14' ' |
533 |
35.1 |
400.1 |
355.6 |
57.2 |
79.2 |
127.0 |
57.2 |
359.2 |
360.2 |
|
-- |
|
16' ' |
597 |
36.6 |
457.2 |
406.4 |
63.5 |
87.4 |
127.0 |
63.5 |
410.5 |
411.2 |
To be specified by purchaser |
-- |
|
18' ' |
635 |
40.1 |
505.0 |
457.0 |
68.3 |
96.8 |
139.7 |
68.3 |
461.8 |
462.3 |
-- |
|
20' ' |
699 |
42.9 |
558.8 |
508.0 |
73.2 |
103.1 |
144.5 |
73.2 |
513.1 |
514.4 |
-- |
|
24' ' |
813 |
47.8 |
663.4 |
610.0 |
82.6 |
111.3 |
152.4 |
82.6 |
616.0 |
616.0 |
-- |
