Jiangsu Baixie Precision Forging Machinery Co., Ltd is a professional manufacturer of forging hammer. Four series in total, this is the brief introduce of series:
CHK series fully hydraulic die forging hammer
Technical feature
1. Fully hydraulic driving system, avoiding oil and steam air crossing;
2. High integrated hydraulic control system and accumulator fixed directly on main valve block without any pipe connecting, improving hydraulic system efficiency and easy to maintenance;
3. Slow up and down in the case of releasing hydraulic system pressure, safer to operate;
4. Taper priority valves and main valves structure, to get high response speed, good sealing performance and no internal leakage;
5. Advanced high and low pressure double sealing structure, avoiding oil leakage;
6. Special swayable oil cylinder and piston rods guiding structure, suitable for off-center forging and extending piston rod life;
7. One piece casting U frame and radial wide guide rails, to get stable and high RAM accuracy;
8. Inlaid guide rails allocation in three side, get no stress to guide rails screw;
9. Touch screen man-machine interface and automatic malfunction diagnosis and alarm, easy for machine operation and maintenance;
10. Digitized and exacted controlling striking energy, avoiding surplus energy harm during striking.
Advantages:
A. High efficiency, energy saving, safety, reliability and environmental protection;
B. Firmness, durability, good rigidity and high accuracy;
C. Return quickly, unclosed die
D. Easy and flexible operation
E. Be equipped with automatic forging line;
F. Wide application;
Application
A. Parts with small batch but many kinds;
B. Precision forging of irregular and complex parts;
C. Forge with several mold cavities and closed forging;
D. Powder forging, alloy steel forging and non-ferrous metal forging.

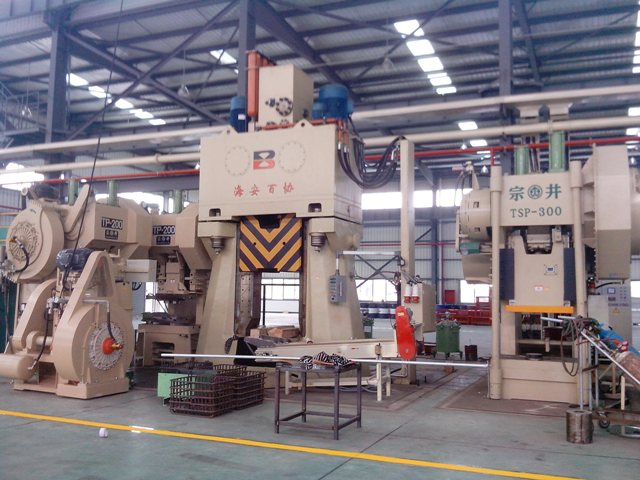

The picture shows CHK100 is used to forge automobile parts.
Via competitive pricing, on-time delivery and understanding our customers needs, please connect with me if you have any interest.
SPEC.
|
CHK |
16 |
25 |
31.5 |
50 |
63 |
80 |
100 |
125 |
Striking energy
|
kJ |
16 |
25 |
31.5 |
50 |
63 |
80 |
100 |
125 |
Ram weight
|
Kg |
1100 |
1750 |
2250 |
3400 |
4200 |
5400 |
6800 |
8400 |
Striking frequency
|
Min-1 |
100 |
90 |
90 |
90 |
80 |
80 |
75 |
70 |
Motor power
|
kW |
30 |
55 |
55 |
2×55 |
2×55 |
2×90 |
2×90 |
2×110 |
Machine weight
|
T |
26 |
40 |
51 |
80 |
100 |
120 |
150 |
195 |
CNC forging hammer manufacturer base in China, Jiangsu Baixie Precision Forging Machinery Co., Ltd. (formerly Haian Baixie Forging Hammer Co., Ltd. ), located in Jiangsu Haian Economy & Development Zone, It is the only professional manufacturer of CNC die forging hammer in China, Jiangsu High & New Technology Enterprise with R&D, manufacture and sale and Nantong Industry-academy-research Demonstrative Company.
We have capacity to manufacture 1000KJ CNC forging hammer in China, heavy CNC pit boring &milling equipment such as TK6916, T6920D and so on, and spacious assembly workshop with craning capacity of 120 tons. Baixie carried out 6S scene management system, passed ISO ISO9001 Quality Management System Certificate, CE certificate and Export License for CNC forging hammer.
Our new patent product, CNC counterblow hammer adopts the advanced technology of the large forging hammer at home and abroad. Special hydraulic coupled counterblow system, advanced hydraulic driving system and person-machine program control system ensure its high effect, energy save, environmental protection, best precision and high reliability, which has the advantages of quality and price compared with other similar products.
Baixie's CNC forging hammers have been widely applied in automobile, motorcycle, engine machine, hydraulic tube, hardware, surgical instruments, stainless steel tableware and spaceflight industry. They are the ideal equipments to produce complicated parts, such as connecting rods, bend axes, rockers, fork, tie plate, stainless steel knives and forks and surgical instruments, the key equipment of precise forging line.
"Work in collaboration, Apply in specialty, Update in reality, Improve in time". We will concentrate on development and research on precision forging equipment; Stand firmly in the field of the world advanced forging equipment industry with high technology machine, innovated forging theory and practical achievement.
