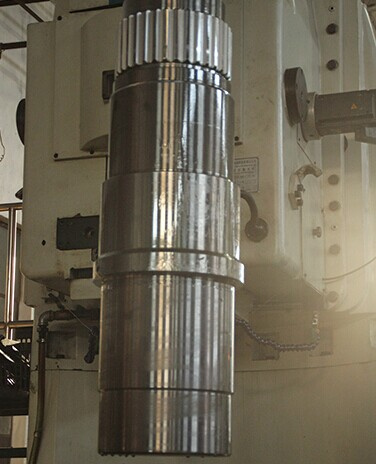

China Wholesale Custom Spur Gear Shaft
| Price: |
US $ 1/Piece |
| Trade Terms: |
FOB |
| Min Order: |
1/Piece |
| Pay Type: |
L/C |
We are professional spur gear shaft factory from china
1. Drawing: We can translate your original drawing; Make manufacturing procedure, offer best suggestions on the design.
2. Quality: We have full set quality control system to guarantee best product quality. Depends on the products, we make different Item Testing Plan, different Manufacturing procedure etc. And we performance certified Lab Mechanical testing, performance UT/MT/PT etc.
Reports we provided for the products:
1) Chemical Composition Report
2) Mechanical Properties Report
3) Dimension Test Report
4) NDT Report
3. Inspection: We have professional inspectors. All these inspectors are qualified.
4. Service and Product:
Sand Casting-Molding Casting- Investment-Die Casting
Forging Hammer –Pressure-Hot/Cold forming-Dropped forging
Machining Lathe, Boring, Vertical, Horizontal, Milling, Saw etc.
| Material: | Alloy steel | Casting steel | Gray cast iron | Ductile Iron | Weldment |
|---|
| 20CrMnTi | 20CrMnTi | HT200 | QT400-18 | 20CrMnTi |
| 20CrMnMo | 20CrMnMo | HT250 | QT400-15 | 20CrMnMo |
| 20 CrMo | 20 CrMo |
|
| 20 CrMo |
| 35CrMo | 35CrMo | 35CrMo |
| 42CrMo | 42CrMo | 42CrMo |
| 42CrMo | 42CrMo | 42CrMo |
| 20Cr2Ni4A | 20Cr2Ni4A | 20Cr2Ni4A |
| 20CrNiMo | 20CrNiMo | 20CrNiMo |
| 20CrNi2Mo | 20CrNi2Mo | 20CrNi2Mo |
| 40CrNiMo | 40CrNiMo | 40CrNiMo |
| 18CrNiMo7-6 | 18CrNiMo7-6 | 18CrNiMo7-6 |
| 17CrNiMo6 | 17CrNiMo6 | 17CrNiMo6 |
| 34 CrNiMo6 | 34 CrNiMo6 | 34 CrNiMo6 |
| 18Cr2Ni4WA | 18Cr2Ni4WA | 18Cr2Ni4WA |
| 18Cr2Ni4WE | 18Cr2Ni4WE | 18Cr2Ni4WE |
| 45 C | 45 C | 45 C |
| 40Cr | 40Cr | 40Cr |
| 38CrMoAl | 38CrMoAl | 38CrMoAl |
| 16Mn | 16Mn | 16Mn |
| 16MnCr5 | 16MnCr5 | 16MnCr5 |
| GCr15 | GCr15 | GCr15 |
| Module | 1mm-50mm |
|---|
| Accuracy | DIN Class 4, ISO/GB Class 4, AGMA Class 13, JIS Class 0 |
|---|
| Standard | DIN, ISO/GB, AGMA, JIS |
|---|
| Heat treatment | Quenching and tempering, gear teeth induction quenching,nitriding,carburization |
|---|
| Application | Wind turbine, locomotive, feeding machinery, metallurgy machinery, mining machinery |
|---|
| Gear shaft length | 2500mm max. |
|---|
| Weight | 15 tons max. |
|---|
Jiangsu Songyan International Trade Co., Ltd is a professional forging parts manufacturer in China, the member of Confederation of Chinese Metal Forging Industry(CCMI), an AAA Credit Grade Certificate enterprise. The company has 400 employees, which include 5 senior engineers, 28 intermediate engineers and 148 technicians.
With high standard quality control policy, songyan products have gained many certifications, such as CCS, BV, DNV, LR, NK.
Since established in 1997, our forging parts has been exported to many countries, such as American, European countries, Asian countries, and so on. Our products are widely used in petroleum and chemical industry, power generation, shipbuilding, heavy machinery, and so on
| Prod Model: |
China Wholesale Custom spur gear shaft |
| Markets: |
North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe |
| Certificate Of Spur Gear Shaft: |
BV,TUV |
| Samples Of Spur Gear Shaft: |
Ok |
| Material Grade Of Spur Gear Shaft: |
Alloy Steel,Carbon Steel,Stainless Steel |
| Load: |
Drive Shaft |
| Stiffness & Flexibility: |
Flexible Shaft |
| Axis Shape: |
Straight Shaft |
| Shaft Shape: |
Real Axis |
Jiangsu Songyan International Trade Co., Ltd is a professonal forging parts manufacturter in China, the member of Confederation of Chinese Metalforging Industry(CCMI), an AAA Credit Grade Certificate enterprise. The company has 400 emplyees, which include 5 senior engineers, 28 intermediate engineers and 148 technicians.
With high standard quality control policy, songyan products have gained many certifications, such as CCS, BV, DNV, LR, NK.
Since establised in 1997, our forging parts has been exported to many countries, such as American, European countries, Asian countries, and so on. Our products are widely used in petroleum and chemical industry, power generation, shipbuilding, heavy machinery, and so on. We can forge any type of Carbon, Alloy and Stainless steel. Some of steel grade are given below.
General Steel Grade: C20, C35/35C8, C40/EN8, C45/Ck45, AISI1050 EN19/42CrMo4, EN24, 34CrNiMo6; 30CrNiMo8, 15CDV6.
Boiler and pressure vessel grade: ASTM A105, ASTM A266GR. ASTM A266GR. ASTM A350 LF2.
Heat resisting grade: 13CrMo44, 21CrMoV5.21CrMoV57, 28CrNiMoV59.
Case Carburizing grade: 17CrNiMo6.
Stainless steel grade: Austenitic: ASTM A182 F316/F304/. F304LN / 304 N2 / F316 / F316 LN / F321 / 347. Martenitic Stainless steel: ASTM F6A CL2, AISI 410, AISI420, AISI430, AISI430F. Duplex stainless steel: 2205, 2507, 2304, F55. Precipitation-hardened stainless steel: 17-4pH, 17-7pH, 630, 631. Special stainless steel: 904L.
TOOL & DIE STEELS: H11, H13, DIN 1.2714, AISI D2.
Super Alloy: Inconel600, Inconel601, Inconel 625, Inconel690, Inconel718, Inconel725, InconelX_750, Inconel800, Inconel800 HT, Inconel 825, Inconel901, Inconel903, Incoloy800H, Incoloy901, Incoloy800, Incoloy800H/AT, Incoloy825, Incoloy925, Monel400, MonelK500, NS111, NS112, NS142, NS143, NS312, NS313, NS315, NS321, NS335, NS322, NS333, NS334, NS336, NS336, Carpenter20CB3, Carpenter42(4J42), HastelloyB, HastelloyB2, HastelloyC, HastelloyC276, HastelloyC4, Hastelloy C, Hastelloy C-22, Hastelloy C-276 Hastelloy X, Maraging C200/250/300/350, 30W4Cr2VA, Invar 36, Invar 36 FC, Alloy 42
Raw Material, Forging, Heat treating, machining, testing and inspection facilities are organised to provide superior forging parts. We sincerely welcome the friends from all over the world visit songyan and have business with us. This will be a win-win chance. Do not hesitate, and just contact us now.
