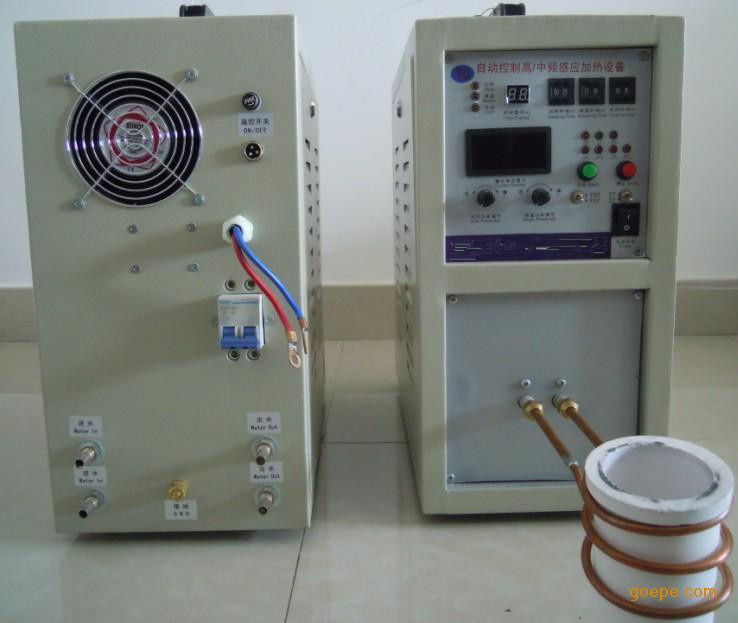

Gold melting induction furnace, gold melting furnace is mainly used for melting, refining, purification, reverse mold by casting crucible after heating the metal container instantly begins to melt, and sprinkle beads granulation processes.
Gold melting induction furnace, gold melting furnace is mostly used to smelt metals:
Platinum, palladium, rhodium, gold, silver, copper, steel, aluminum, activated carbon gold gray, Sands, electrolysis mud, gold and silver powder, tin ash dross and so on.
Working conditions of small gold melting furnace, portable gold melting crucibles, gold machine:
1. A single molten metal quantity: 1g to 100 kgs.
2. A single melting time: 2 minutes to 40 minutes
3. Maximum temperature: 1500-2000 degrees.
Fetures of small gold melting furnace, portable gold melting crucibles, gold machine:
1. Adopts all-solid-state power conversion module Siemens IGBT technology.
2. With full range of protection features such as: Over-current, water shortages, overheating, over-voltage, short circuit, lack of protection, greatly improving the reliability of the equipment and convenient equipment maintenance.
3. Portable, Small, space-saving, light weight, eacy to move.
4. No need debug, After connectting through electrical&water can be used.
5. Easy operation, suitable for factory, family, institute & Laboratory smelting experiments
6. Can melt various kinds of metals.
7.24 hours continuous smelting capacity.
|
Model |
15A |
25A |
35AB |
45AB |
60AB |
80AB |
100AB |
120AB |
|
Power |
2kw |
5kw |
10kw |
15kw |
20kw |
30kw |
45kw |
70kw |
|
Voltage |
220V |
380V |
380V |
380V |
380V |
380V |
380V |
380V |
|
High Frequency |
30~50KHZ |
|
Mid Frequency |
1~15KHZ |
|
Machine Weight |
15KG |
25KG |
35KG |
70KG |
70KG |
90KG |
120KG |
150KG |
|
Capacity of the mineral |
1~2kg |
1~4kg |
1~8kg |
1~15kg |
1~25kg |
1~40kg |
1~50kg |
1~100kg |
|
Working Time |
≤5mins |
≤5mins |
≤10mins |
≤15mins |
≤20mins |
≤30mins |
≤40mins |
≤40mins |
Jiangxi Province County Mining Machinery Factory is specialized in researching, manufacturing, sales and door tracking service as one of the metallurgical mineral processing machinery enterprise, our company is engaged in the mineral processing equipment product design and production for several years history, has accumulated rich experience in design and production. Enterprise in mineral processing equipment industry has had a positive effect, set up the good reputation. The company constantly with technology innovation, hard to develop the country generation into high technology and new technology processing equipment, make excellent brand, mainly the manufacture of the products like as shaking table, flotation equipment, crushing(powder)equipment, magnetic separation equipment, screening equipment, ore washer classifying equipment, agitation equipment, spiral chute equipment, gravity separation jig, feeding equipment, milling equipment. And we can manufacture various types of mineral processing machinery and equipment according to our customers' requirements. Our products are widely used for sorting gold, silver, copper, iron, tungsten, lead, zinc, tin, molybdenum, nickel, tantalum, niobium, manganese ore, coal, monazite, rutile, diamonds, other precious metals and precious metals mine, and for the flotation colored, black metal, precious metals and other minerals.
Company has won the Outstanding Business Award, and many times as honesty, service and advanced company, is the backbone of the metallurgical industry, mineral processing machinery business. The company has export qualifications, our products sell well all over the world for many years, especially exported to Brazil, India, Indonesia, South Africa, Somalia, Philippines, Malaysia, Sudan, Kazakhstan, Kyrgyzstan, Cambodia, Vietnam, Korea, Mongolia, Myanmar and other countries.
