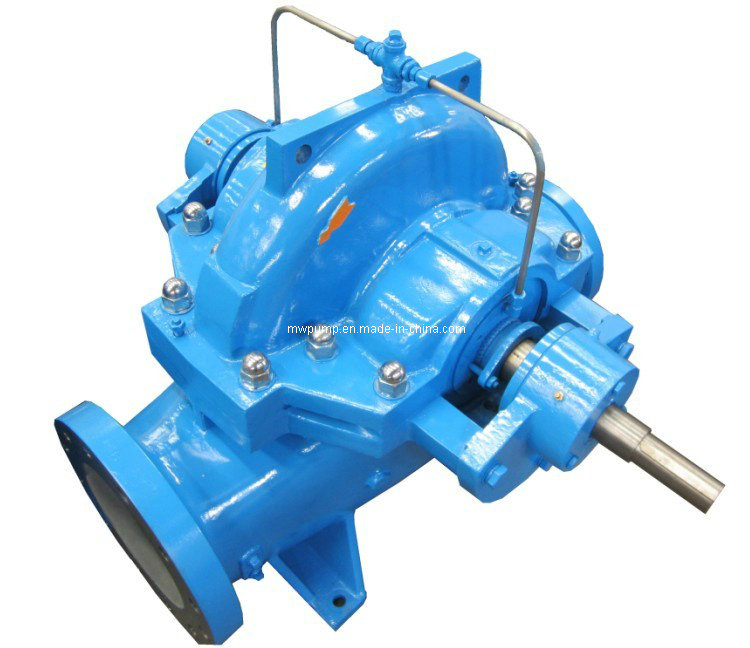

Products name: Centrifugal pump with ISO
Type XS double suction centrifugal pumps are new type of single-stage double-suction centrifugal split case pumps with high performance. They are widely used in delivering liquids to the water plant, circulation water system of air conditioner, pipe net system of supplying heated water, construction, drainage pumping station, power station, power station, industrial water supply system, ship industry, mine and etc. Type XS pumps are advanced products developed from type SH, S, SA, SLA, SAP centrifugal pumps. We have manufactured this type of pump with the inlet diameter 1.4m.
Type XS double suction centrifugal pumps advantage,
1. High efficiency
2. Wide operate range
The technical parameter of type XS pump:
Capacity: 22~11600m³ /h
Head: 7~200m
Temperature: -20° C~105° C(Type XS) -60° C~200° C(Type XSR)
Solid parameter: ≤ 80mg/L
Permissible pressure: ≤ 2.5Mpa (Type Xs) ≤ 4Mpa (Type XSR)
Pump outlet diameter: 80~1400mm
Technical Advantage:
Type XS pumps work stably with less noise and vibration and can work at a lifting speed due to short support at both sides, thus they can be widely used.
The pipelines arrangement of type XS pump looks simple and beautiful due to inlet and outlet at a same center line.
The same rotor of type XS pumps can be operated at reverse direction to avoid damage to the pumps water hammer.
Unique design of type XS pumps working at high temperature using middle support to fasten the pump casing and using cooling seals oil lubrication bearing then pump suitable for working at 200 centigrade especially for supplying heated water to pipe net system.
Type XS pump casting parts can be vertically or horizontally mounted according to different working condition, with mechanical seals or packing seals.
Type XS centrifugal pumps look beautiful with visible lines adopting industrially designing
300-560 |
| 1080
1692
2340 | 300
470
650 | 107
95
77 | 1450 | 393.3
503.1
613.3 | 630 | 80
87
80 | 3.9
4.7
7.4 |
| A | 900
1620
2160 | 250
450
600 | 90
77
61.5 |
| 294.1
399.6
446.6 | 450 | 75
85
81 | 4.3
5.2
7.8 |
| B | 900
1548
1888.4 | 250
430
524 | 74
62
53 |
| 241.8
307.4
332 | 355 | 75
85
82 | 4.6
5.3
7.1 |
| C | 972
1512
1980 | 270
420
550 | 60
50
37 |
| 211.7
246.5
266 | 280 | 75
83.5
75 | 5
5.7
9.3 |
Hunan M & W Energy Saving Technology & Science Co., Ltd. is the biggest manufacturer of split case pump in China.
Now, we have been established cooperation with ITT, KSB and WILO.
Our main products are split case pumps, fire fighting pumps, oil pumps, long shaft pumps, multistage pumps etc.
We passed ISO9000 certification in 1997 and 2001 as well as SGS certification in 2011.
Stable quality and long-term business relationship is our goal any time.
History: Many years experience of supplying pumps;
Technology: Professional technical engineers and R&D team;
Management: Scientific management and strict quality control system;
Equipments: Advanced automatic production line and test equipment;
Innovation: Continuously diversify products range to satisfy customers
We attach importance to meet the customers' requirements and regard the pursuit of customer satisfaction as our ultimate goal. By virtue of the advantages of advanced technology, talent, manufacturing capability and excellent service, we will rank the top in Chinese pump industry!
