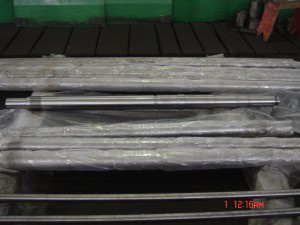

Centrifugal Pump Shaft
1.？Material:？SUS630, 630,316L,304L,316i,317L,2205,2507,TC1,TC2,？TC3,TC4
2.？Process:？EAF？+？LF？+？VD？+？Forged？+？Heat？Treatment？(optional)？
3.？Delivery？condition:Hot？forged？+Rough？machined？(black？surface？after？Q/T)+？Turned？(optional)？
4. Technical？Data:？Chemical？Composition,？Physical？Properties？and？Mechanical？Testing.？
5.？Test:？Ultrasonic？test？according？to？SEP？1921-84？3C/c.
6. Standard: GB, AISI, ASTM, DIN, JIS, BS, etc.
7. Quality Management Certification: ISO 9001:2008.
8. Note:？We can only handle forged products.We don't supply rolled steel products.
9.Specification(mm):Dia:Φ80mm~Φ1000mm
？ ？ ？ ？ ？ ？ ？ ？ ？ ？ ？ ？ ？ ？ ？ ？ ？ ？ ？ ？ ？ ？Weight≤18T
？ ？ ？ ？ ？ ？ ？ ？ ？ ？ ？ ？ ？ ？ ？ ？ ？Length≤12000mm
？ ？
Product Name |
Specification(mm) |
Material |
Forged Round Bar |
OD:Φ200-Φ1000
Weight≤18T
Length≤12000mm |
SUS630, 630,316L,304L,
316i,317L,2205,2507,TC1,TC2,
TC3,TC4 |
Forged Hollow Bar |
OD:Φ200-Φ1000
Weight≤18T
Length≤9500mm |
SUS630, 630,316L,304L,
316i,317L,2205,2507,TC1,TC2,
TC3,TC4 |
Forged Moudle |
Width≤1000mm |
SUS630, 630,316L,304L,
316i,317L,2205,2507,TC1,TC2,
TC3,TC4 |
Forged Shaft |
DiameterΦ80-Φ1000
Length≤12000mm
Weight≤18T |
SUS630, 630,316L,304L,
316i,317L,2205,2507,TC1,TC2,
TC3,TC4 |
Forged Roller |
Diameter≤Φ1000mm
|
SUS630, 630,316L,304L,
316i,317L,2205,2507,TC1,TC2,
TC3,TC4 |
Forged Ring&Disc |
OD≤Φ1500mm
Thickness≤500mm
|
SUS630, 630,316L,304L,
316i,317L,2205,2507,TC1,TC2,
TC3,TC4 |
Ningbo Yinzhou Xiangfan Machinery Manufacturing Co., Ltd. is located in Ningbo. We mainly specialize in two types of products.
The first type is a variety of special steel forgings and machining parts, representative products of which are:
1. Shaft with deep holes (long up to 12 meters), hollow shaft, cone shaft, gear shaft, spline shaft, shaft hub, large motor shaft, engine crankshaft, flange shaft, transmission shaft, marine shaft, hydraulic cylinder for mining machinery and other machining products
2. Roll for metal mill
3. Non-standard gear
4. PQF Mandrel bar
5. Oilfield stabilizer (finished and the forged billet, are made from 4145H MOD and non-magnetic steel), roller reamer. Fixed diameter hole opener, heavy weight drill pipe, drill collar, pup joint, and all kinds of union, oil casing.
The second type is machinery equipment and mainly includes: Cellophane packing machine and binding machine
Our products are mainly used for industries of metallurgy, machinery, petroleum, shipping, chemical and packaging etc.
