Centrifugal Air-Condition Pump Water Pump

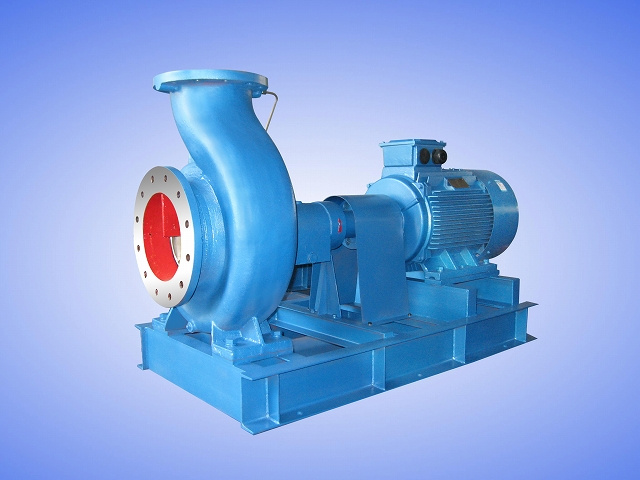

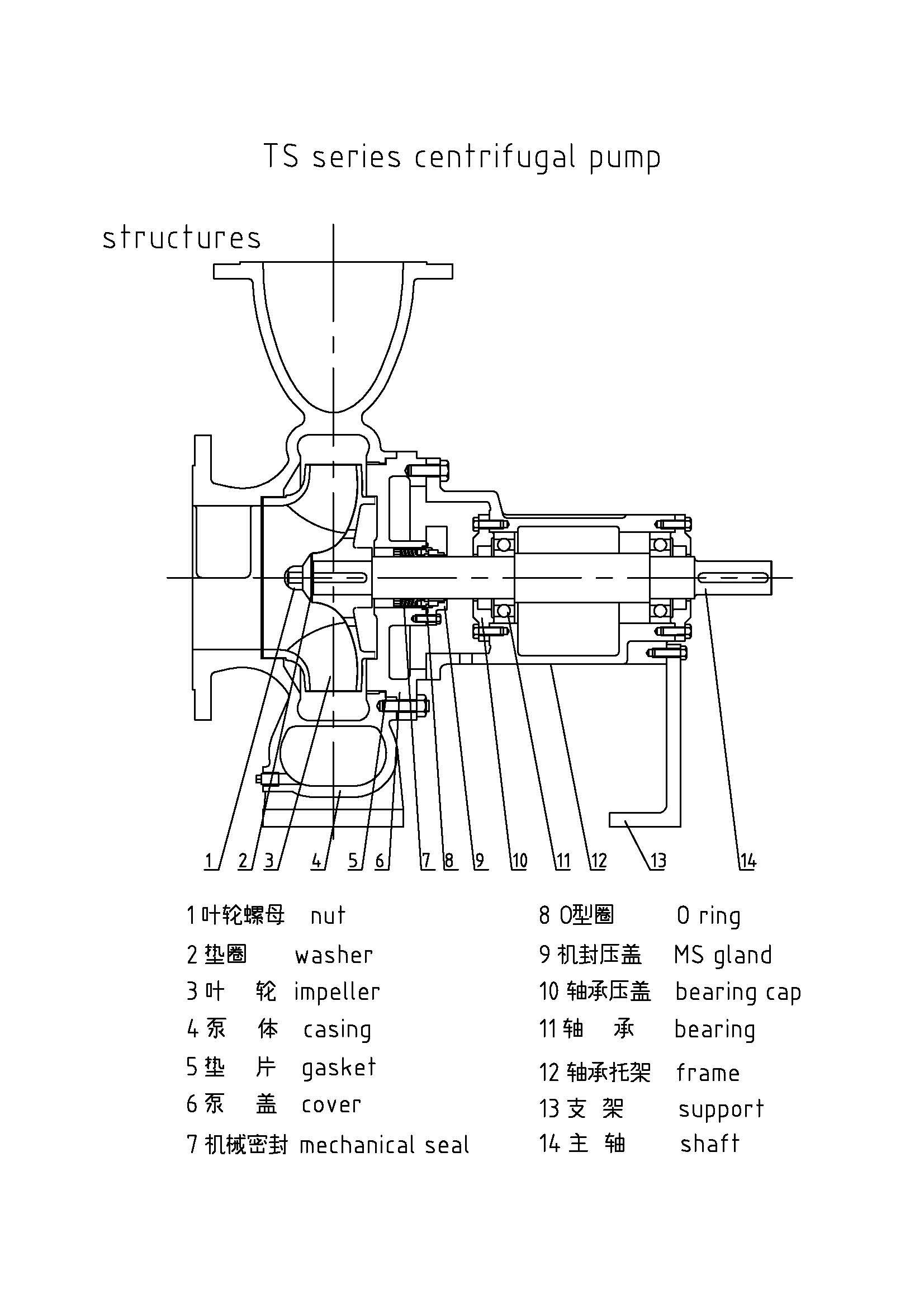

 TS Series- the horizontal end suction centrifugal pump, which is a more advanced version of the FI-R series. It covers the high-pressure ranges of ss pumps. The series of pumps are multi-functional and designed to be used under various circumstances such as water supply, industrial pressure boosting and irrigation.
The rated power and dimensions of pumps live up to either EN733 or ISO2858/ISO 5199 Standard. The replaceable shaft sleeve is applied in shaft seal area. The replaceable wearing ring is applied between volute casing and impeller. Pump casing and base is constructed with a single casting, also pump casing available in a stainless steel version as an option.

Application
For liquid transfer and circulation of cold and hot clean or slightly polluted water. Typical applications are:
Water supply
Industrial pressure boosting
Industrial liquid transfer
HVAC (heating, ventilation and air-conditioning)
Irrigation and dewatering
General industry purposes
According to different operation required & fluid features, optional materials as below:

Case	Impeller	Key Shaft	Lock Nuts	Mechanical Seal	Bearing	Bracket	Coupling	Motor
CI	AISI 304	AISI 420	AISI 420	John Crane  Burgmann OEM	SKF	Cast iron	Pin Diaphragm	Taco Marathon Siemens ABB
AISI 304	AISI 304	AISI 420	AISI 316
AISI 316	AISI 316	AISI 420	AISI 316
AISI 316L	AISI 316L	AISI 420	AISI 316
AISI 316	Bronze	Bronze	Bronze
Duplex SS	Duplex SS	Duplex SS	Duplex SS

Installation:	IMB3
Protection:	IP55
Insulation:	F/B
Environmental:	Up to 40ºC
Voltage(50Hz):	Up to 2.2kw, 3x220/380V 3kw & above, 3x380V
Medium:	-20ºC ~ +110ºC
PTC:	Each 3kw motor or above, within a set of PTC150ºC component(one for each phase, series), overheat protection
Other Protection:	According to requirement by customer

performance parameter of the TSC centrifugal pump
NUMBER	TYPE	flow m³/h	head m	RPM r/min	power kw	NPSH m
1	TSC50-32-125	10~28	6~28	2900/1450	0.55~3	3~5
2	TSC50-32-160	10~28	8~39	2900/1450	0.75~5.5	2~2.5
3	TSC50-32-200	10~28	12~57	2900/1450	1.1~11	2.5~4.2
4	TSC50-32-250	10~28	21.7~94	2900/1450	2.2~18.5	2.5~4.2
5	TSC65-40-200	12~50	5~31	2900/1450	0.75~5.5	2~3
6	TSC65-40-250	17~65	9~45	2900/1450	1.1~11	2.6~3.2
7	TSC65-40-315	17~65	11~60	2900/1450	2.2~15	2.5~3.5
8	TSC65-50-125	14~50	19~94	2900/1450	4~30	3~4.5
9	TSC65-50-160	14~50	28~135	2900/1450	5.5~45	2.6~3.2
10	TSC80-65-125	30~95	5~28	2900/1450	1.1~11	2.5~3.5
11	TSC80-65-160	25~90	7~43	2900/1450	1.5~11	2.5~4
12	TSC80-50-200	25~95	12~64	2900/1450	3~22	3~4.2
13	TSC80-50-250	25~95	22~100	2900/1450	5.5~45	3~4.3
14	TSC80-50-315	25~95	31~136	2900/1450	7.5~55	2.5~3.5
15	TSC100-80-125	35~160	5~31	2900/1450	2.2~15	4~6
16	TSC100-80-160	35~160	8~42	2900/1450	3~22	4~5.6
17	TSC100-65-200	35~160	13~70	2900/1450	5.5~37	3.5~5
18	TSC100-65-250	40~160	21~105	2900/1450	11~75	2.5~3.8
19	TSC100-65-315	45~200	25~140	2900/1450	15~90	4~5.5
20	TSC125-80-200	48~190	11~58	2900/1450	2.2~30	4~5.5
21	TSC125-80-250	50~240	15~96	2900/1450	4~55	2.5~3.5
22	TSC125-80-315	50~280	18~150	2900/1450	7.5~110	3~4.5
23	TSC125-80-400	36~280	25~45	2900/1450	15~55	3~4.5
24	TSC125-100-200	75~350	11~60	2900/1450	7.5~75	3~4.5
25	TSC125-100-250	75~350	23~112	2900/1450	18.5~132	4~5.5
26	TSC125-100-315	90~420	34~158	2900/1450	30~200	3.5~5
27	TSC125-100-400	61~200	21~55	1450	15~45	2.5~4
28	TSC150-125-200	70~320	9~16	1450	7.5~15	2.5~3.5
29	TSC150-125-250	101~400	7~26	1450	11~30	2.5~3.8
30	TSC150-125-315	101~400	14~44	1450	15~45	3~4
31	TSC150-125-400	101~400	28~69	1450	30~90	3~4.5
32	TSC200-150-250	186~500	8~25	1450	11~37	3~4.2
33	TSC200-150-315	186~500	12~36	1450	22~55	3~4.2
34	TSC200-150-400	203~580	22~63	1450	37~110	3~5
35	TSC200-200-250	200~680	10~18	1450	18.5~30	3.5~5.5
36	TSC250-200-250	340~720	22~37	1450	30~75	3.5~5.5
37	TSC250-200-315	250~800	14~34	1450	37~75	3.5~5.5
38	TSC250-200-400	257~760	25.5~56	1450	45~132	3.5~5.5
39	TSC300-250-315	406~1200	12.3~27	1450	37~110	4.6~7.0
40	TSC300-250-400	406~1200	20.6~57.5	1450	75~200	4.6~7.0
41	TSC350-300-315	649~1920	12.1~38.4	1450	75~200	7.0~9.0
42	TSC350-300-400	650~1920	19.7~58.5	1450	90~280	7.0~10



,
