HP series hydraulic press are used for assembling, dismantling, alighment, calendaring, tension, and bendinggand punching. The machine supplied oil by Italy CNK and CBZ pump. It could save60% energy compared with the trational model. The efficiency increased to 2-3 times. It takes the advantages of small volume, high pressure, simple structure and light weight.
Description

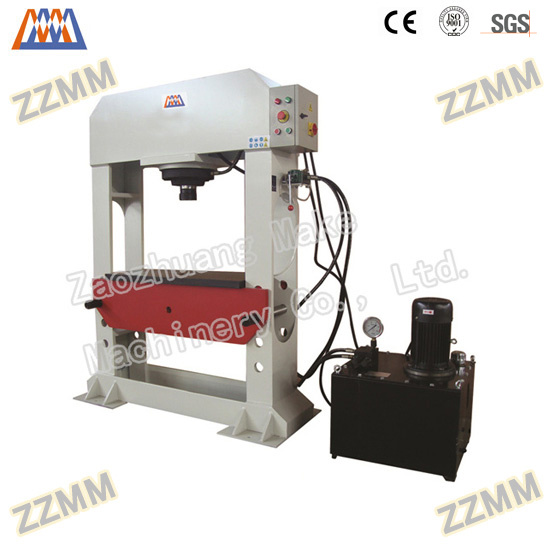

100 tonne with SLIDING CYLINDER RAM INDUSTRIAL HYDRAULIC PRESS
Suited for the Industrial workshop, for the repair of axles removal & press fit of bearings & bushings
Features
Two-speed is provided by dual pump, saving energy is up to 60% compared with the traditional machine.
Easy to use and powerful press for most applications
Ideal for the repair of axles, shafts, & press fit of bearings & bushings
Ram can be repositioned via crank hand wheel, slides left or right
Ram speed down 14.5mm/sec, returns 17mm/sec
Heavy duty welded steel fabricated frame
Strong hydraulic cylinder ensures precise pressing during operation
Fitted with pressure gauge
Safety overload valve
Hydraulic joystick control lever
Heavy duty one piece table plate insert
Extra heavy duty table support with high tensile setting pins
Table can be adjusted for height using chains and Hydraulic ram
Pre-Commissioning:
1. Press is run & tested prior delivery
2. Hydraulic oil is included with machine
Includes
Includes support plate & V blocks
Technical specification
| Model | units | HP-30 | HP-50 | HP-63 | HP-100 | HP-150 | HP-200 | HP-300 | HP-400 | HP-500 | HP-630 |
| capacity | kn | 300 | 500 | 630 | 1000 | 1500 | 2000 | 3000 | 4000 | 5000 | 6300 |
| pressure | Mpa | 25 | 25 | 30 | 30 | 30 | 31.5 | 31.5 | 31.5 | 31.5 | 31.5 |
| travel | mm | 200+270 | 220+405 | 220+405 | 250+405 | 250+405 | 300+405 | 300+405 | 300+405 | 300+405 | 400+405 |
| Table size | mm | 300*400 | 480*360 | 400*500 | 440*980 | 440*980 | 500*980 | 700*1200 | 800*1200 | 900*1200 | 1000*1200 |
| dimension | mm | 1160*550*1600 | 1500*650*1950 | 1500*650*1950 | 1730*730*2250
730*630*960 | 1730*730*2250
730*630*960 | 1950*950*2350
900*800*1060 | 2100*950*2700
1100*1200*1350 | 2300*1000*2900
1100*1200*1350 | 2300*1000*2900
1100*1200*1350 | 2300*1200*2900
1100*1200*1350 |
| weight | kg | 420 | 980 | 1020 | 1220 | 1350 | 2200 | 4200 | 5500 | 6500 | 9500 |
