Cast Iron Welding Platform

Cast Iron Welding Platform
Price: US $ 1000/Piece
Trade Terms: FOB,CFR,CIF
Min Order: 1/Piece
Pay Type: L/C,T/T

Botou Deyi Heavy Industry Manufacturing Co.,Ltd is specialized cast iron surface plate manufacturer and a professional company which is engaged in casting , machining, machine tool supporting.
Main prodcuts are Cast Iron Surface Plates/Platforms And Measuring Tools,
Machine Tool Castings And Accessories, Magnesium Alloy Measuring Tools,
Granite Surface Plates/Platforms And Measuring Tools, Precision Alloy Castings and so on, and the material are graphite cast iron, ductile iron, heat-resistant corrosion-resistant cast iron, carbon steel, alloy steel, gray cast iron, chromium and molybdenum copper alloy cast iron and so on.

We can offer high quality product with competitive price with relatively short lead time.

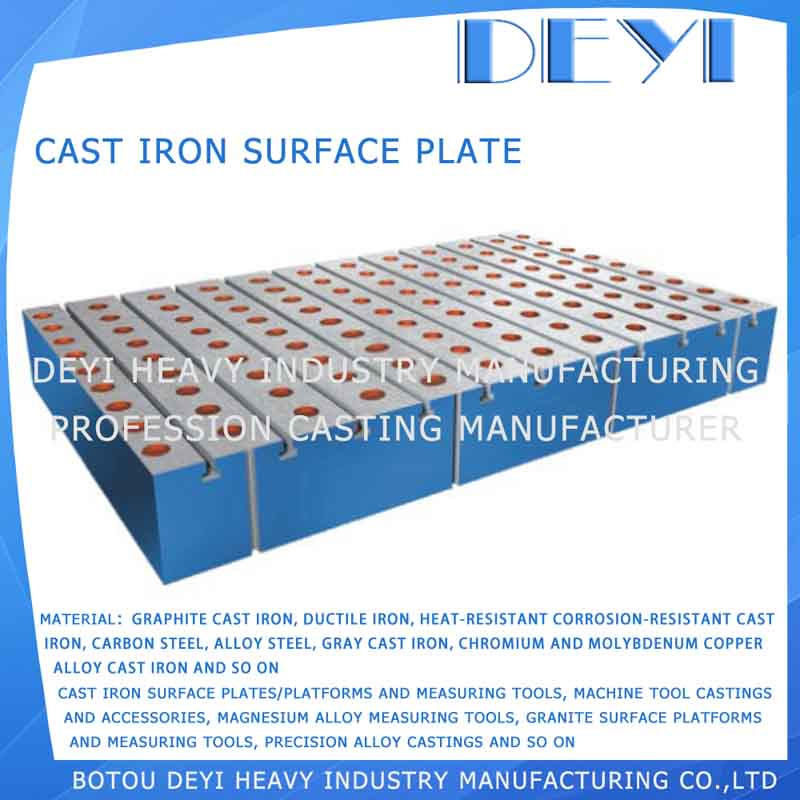

CAST IRON SURFACE PLATE
SPECS DESCRIPTION

CODESPECS(mm)PRECISION
" 0" CLASS
(μ m)
" 1" CLASS
(μ m)
" 2" CLASS
(μ m)
" 3" CLASS
(μ m)
FINISH PLANE      (μ m)

01200× 10051020


02200× 20051020


03250× 2505.51122


04300× 20061224


05300× 30061224


06400× 30061224


07400× 40061224


08500× 30061224


09500× 35061224


10500× 45061224


11500× 50071428


12600× 45071428


13600× 50071428


14700× 5008163280

15800× 5008163280

16800× 6008163280

17900× 6008163280

181000× 7509183690

191000× 8009183690

201000× 100010203996

211200× 800
203996

221200× 1000
203996

231500× 1000
2448120

241500× 1500
2550125

252000× 600
2448120

262000× 1000
2652129

272000× 1500

56140

282000× 2000

60152230
292500× 1500

64152230
302500× 2000

68168248
312500× 2500

72180270
323000× 1000


168248
333000× 1500


174154
343000× 2000


184275
353000× 2500


186276
363000× 3000


210300
374000× 1000


210300
384000× 1500


210300
394000× 2000


219310
404000× 2500


228340
414000× 3000


240360
425000× 1500


249370
435000× 2000


255375
445000× 2500


264390
455000× 3000


287420
466000× 2000


293430
476000× 2500


300450
486000× 3000


308460
498000× 2000


370520
508000× 2500


375530
518000× 3000


382570
ANY SIZE OF CAST IRON SURFACE PLATES CAN BE DESIGNED AND PRODUCED ACCORDING TO CUSTOMER REQUIREMENTS

CAST IRON SURFACE PLATE
  DETAILED DESCRIPTION
THE GROSS STRUCTURE OF PLATES IS DIVIDED INTO BOX TYPE AND RIB TYPE. THE SHAPE OF WORKING SURFACE IS RECTANGLE, SQUARE AND ROUNDNESS. ACCORDING TO THE PRECISION MACHINING, IT’ S DIVIDED INTO FINISH PLANE AND SCRAPING. THERE ARE V- SLOTS, T-SLOTS, U-SLOTS, DOVETAIL SLOTS, ROUND HOLES, SLOTTED HOLES ETC CAN BE MACHINED ON THE WORKING SURFACE OF PLATES. THE CAST IRON SURFACE PLATE IS THE BENCHMARK MEASURING TOOL WHICH CAN BE APPLIED TO TESTING, LINEATION, ASSEMBLING, WELDING, INSTALLING AND RIVET WELDING FOR THE WORKPIECES AND EQUIPMENTS.
THE CAST IRON SURFACE PLATE ACCESSORIES ARE HAVE ANCHOR BOLTS, ANCHOR DEVICES, LEVELLING BOLTS, T-BOLTS, LEVELLING PAD IRON, COVER PLATE ETC.
THE CAST RION SURFACE PLATES CAN BE APPLIED TO WORKPIECES AND EQUIPMENTS INSPECTION APPLICATION, SUCH AS MACHINE TOOLS AND MECHANICAL MEASUREMENT BENCHMARKS, TO TEST THE DIMENSIONAL PRECISION AND FORM AND POSITION DEVIATION FOR THE WORKPIECES, AND TO DO THE PRECISE LINEATION. THE PLATES ARE THE INDISENSABLE TOOLS IN THE MACHINERY MANUFACTURING INDUSTRY.
THE WORKING SURFACE HARDNESS IS BETWEEN HB160 AND HB210. THERE ARE TWO TEMPERING TREATMENT (ARTIFICIAL ANNEALING(SEASONING): 600 TO 700 CENTIDEGREE, NATURAL SEASONING: 2 TO 3 YEARS) TO KEEP THE PLATES’ STABILITY AND ABRASION RESISTANCE.
Product StandardJB/T7974-99, DIN 650 etc.
Specification200mm*100mm to 3000mm*8000mm
Casting equipmentCupola Furnace, Industrial Electric Furnace
Casting TechniqueResin Sand Casting etc.
MaterialMagnesium iron, Gray iron etc. (such as HT200-300, QT400-700)
Weight5kg-500000kg
Surface TreatmentPainting, Heat Treatment, Finish Plane etc.
Fine FinishingComplete machining: Machining center, CNC, Lathe, Milling machine, drilling etc.
Quality AssurancePhysical and Chemical Inspection Report,
Metallographic Examination Report, Casting Aging Treatment Report,
DIM Inspection Report, Manufacturing Progress Control Schedule,
and Customer Requirements Reports.
(Third Party inspection available upon customers requirements)
PackagingWooden Cases, Steel Cases, Other Export Packaging
Size and designAs per the customer' s drawings and requirements
(we can offer the new drawings to the customer)


Enclose:
T-SLOT ACCURACY TO DIN 650
Tolerance on slot width H12. (Tolerance H7 or H8 on request)
Example:
A T-slot DIN 650-28 H12 has a nominal slot opening (a) of 28mm
for bolt size M24(1” ).
The T-slot height (H) according to the table below is 48mm.
(1 mm = 0.03937 inch, 1 inch = 25.4 mm)
Dimension aFor screwb (mm)c (mm)H (mm)e (mm)
10M 8-17.5 – 188181.0
12M 10-20.5 – 219211.0
14M 121/2”23.5 – 2410241.0
16M 14-26.5 – 2711271.0
18M 165/8”29.5 – 3012301.5
20M 18-33.5 – 3414341.5
22M 203/4”37.5 – 3816381.5
24M 227/8”41.0 – 4218421.5
28M 241”47.0 – 4820481.5
32M 271 1/8”5422541.5
36M 301 1/4”6025612.0
42M 361 1/2”7029742.0

Prod Model: DEYI0204
Markets: South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe
Name: Precision Welding Platform
Specification: 200mm*100mm to 3000mm*8000mm
Material: Ht200-Ht300, Qt400-700
Accuracy: 0.03-0.3mm
Brinell Hardness: 170-240 Hbw
QA1: Physical and Chemical Inspection Report
QA2: Metallographic Examination, Dim Inspection Report
QA3: Customer Requirements Reports.
Packaging: Wooden Cases, Steel Cases, Cartons
Brand: Deyi
Type: Clay Dry Sand
Botou Deyi Heavy Industry Manufacturing Co.,Ltd is specialized cast iron surface plate manufacturer and a professional company which is engaged in casting , machining, machine tool supporting.

Main prodcuts are Cast Iron Surface Plates/Platforms And Measuring Tools,

Machine Tool Castings And Accessories, Magnesium Alloy Measuring Tools,

Granite Surface Plates/Platforms And Measuring Tools, Precision Alloy Castings and so on, and the material are graphite cast iron, ductile iron, heat-resistant corrosion-resistant cast iron, carbon steel, alloy steel, gray cast iron, chromium and molybdenum copper alloy cast iron and so on.

Our quality assurance system is sound and has passed ISO9001:2000 international quality system certification

Our products reached a international quality standards. At home, products have successfully used in some large enterprises, domestic: China State Shipbuilding Corporation, SINOPEC, China Electric Power Group Corporation and so on. At abroad, the products exported to Turkey, Holland, South Africa, India, England, United Arab Emirates and other countries.
