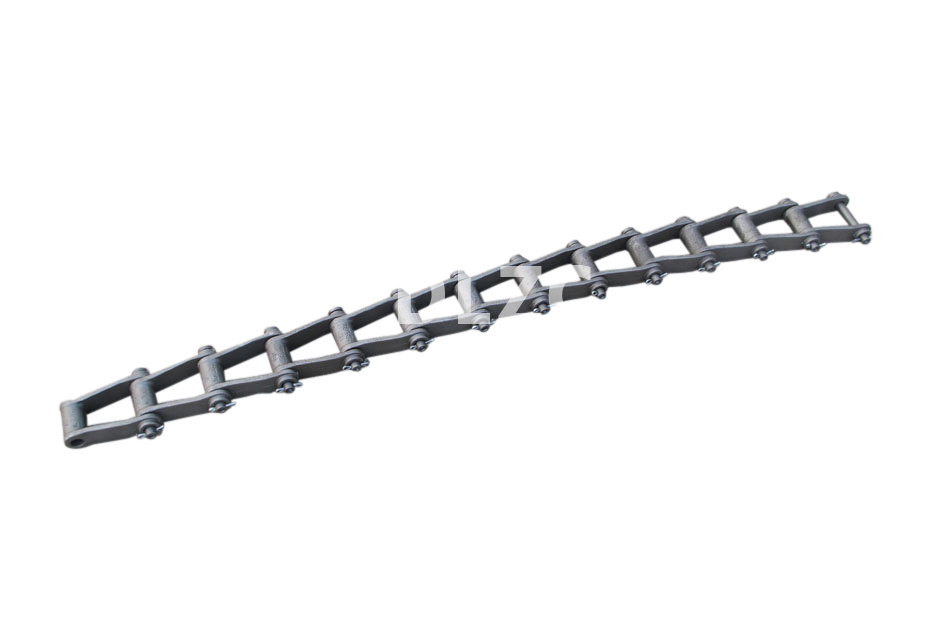

CAST CHAIN
Production of a cast chain
Material: CAST
Pitch form 34.93mm to 103.2mm
OEM orders are welcomed
Our advantage
1: We are at the situation to supply you our first class goods on very competitive price.
2: We can make all kinds of cast chain for your if have drawings.
3: Timely delivery
5: Advanced equipment, excellent research and development teams
Chain Number
442
452
455
462
467
477
488
4103
4124
|
NO. |
Pithch |
Bush diameter |
Width between inner plates |
Pin diameter |
Pin length |
plate depth |
Average tensile strength |
Weight per meter |
10FT LINKS |
|
P |
d1 max |
b1
Min |
d2 max |
L max |
h2 max |
Q min |
q |
NO. |
|
mm |
mm |
mm |
mm |
mm |
mm |
N |
Kg/m |
LINKS |
|
442 |
34.93 |
14.29 |
15.88 |
7.94 |
50.80 |
19.05 |
3402 |
2.23 |
88 |
|
445 |
41.40 |
15.88 |
17.46 |
7.94 |
50.80 |
19.05 |
3402 |
2.38 |
74 |
|
452 |
38.25 |
17.46 |
15.88 |
9.26 |
56.36 |
21.43 |
3969 |
3.27 |
80 |
|
455 |
41.40 |
15.88 |
17.46 |
9.26 |
57.94 |
21.43 |
4139 |
3.13 |
74 |
|
462 |
41.50 |
18.26 |
20.64 |
11.11 |
65.09 |
23.81 |
5103 |
4.02 |
73 |
|
467 |
58.62 |
16.67 |
9.53 |
7.94 |
56.36 |
19.84 |
3402 |
2.23 |
52 |
|
477 |
58.62 |
20.64 |
17.46 |
11.11 |
64.29 |
25.40 |
5443 |
3.27 |
52 |
|
488 |
66.27 |
22.23 |
23.81 |
11.11 |
100.00 |
23.81 |
6237 |
4.61 |
46 |
|
4103 |
78.11 |
30.96 |
28.58 |
19.05 |
87.31 |
38.10 |
12474 |
9.23 |
39 |
|
4124 |
103.20 |
43.66 |
31.75 |
20.64 |
120.65 |
44.45 |
18711 |
13.69 |
30 |
Hangzhou Perpetual Machinery & Equipment Co., Ltd.Is a professional work on industrial chain and sprocket business of the company.We have you need all the kind of the transmission products.Its main products are Standard roller chains, stainless steel chains, high quality agricultural chain Conveyor chains, special chains and sprocket etc.We can do ANSI, BS, DIN standard products.Welcome any customer contact to us, we will reply any request as soon as possible.Our company's quality policy is that it's our eternal pursuance to lead and satisfy customers's demand.
