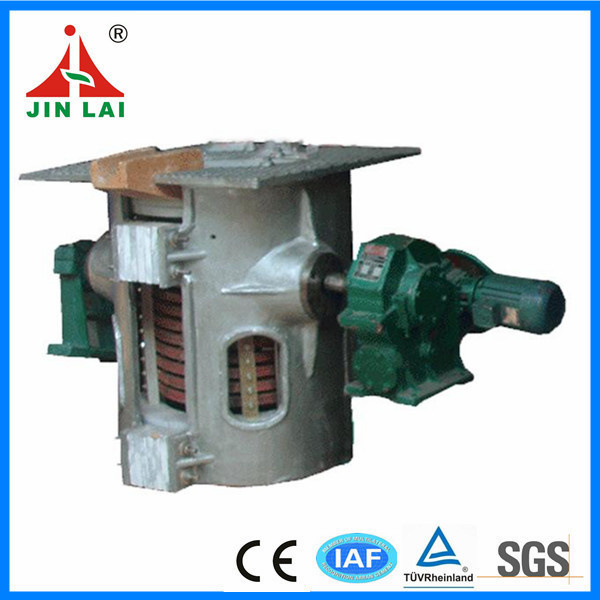

Cast Aluminum Melting Furnace
1. Overview
Medium Frequency Induction Furnace is the device converting three phase power current into single-phase intermediate frequency current and enabling metal to produce eddy current loss through the electromagnetic field induction to achieve heating and melting. Mainly be used in the material of ferrous and non-ferrous metal casting, melting and heating treatment industry, such as iron, steel, brass, cooper, zinc, tin and so on. As well as heating treatment prior to forging, sintering and tube-bending forming in casting and melting industries.
2. Performance Characteristics:
1. Zero-voltage scanning soft, available for start or stop at any time under any state without impact on power supply;
2. Speedy melting, low production cost, low pollution, conforming to environmental protection requirement;
3. Melting directly from low temperature, available for fully emptying of solution, easy change of category of melting material;
4. Flexibly adjustable power, easy and continuous smooth adjustment, easily controllable temperature, low oxidization loss, uniform metal content;
5. Furnace shell with cast aluminum ally or steel shell construction, small footprint, easy overturn body, available for selection of electric, manual, hydraulic or other overturn mode as needed;
6. Contravariant automatic regulation circuit available for matching of load impendence automatically, maintaining good operation without regulation or compensation of capacitance; Power supply with fault diagnosis facilitating service.
|
Furnace Capacity |
Rating Power |
Input Voltage |
Input Phase |
Input Current |
Assorted Transformer |
Output Voltage |
Output Frequency |
Melting Time |
Volume |
Weight |
|
10-50KG |
50KW |
380V |
3 |
80A |
60KVA |
750V |
2.5KHZ |
20-60Min |
1.2 m³ |
350KG |
|
100KG |
100KW |
380V |
3 |
160A |
120KVA |
750V |
1KHZ |
20-60Min |
6 m³ |
1500KG |
|
150KG |
100KW |
380V |
3 |
160A |
120KVA |
750V |
1KHZ |
30-70Min |
6.5m³ |
1600KG |
|
200KG |
120KW |
380V |
3 |
192A |
150KVA |
750V |
1KHZ |
30-70Min |
7.5m³ |
1700KG |
|
300KG |
130KW |
380V |
3 |
208A |
150KVA |
750V |
1KHZ |
30-70Min |
8.5m³ |
1800KG |
|
500KG |
250KW |
380V |
3 |
400A |
315KVA |
750V |
1KHZ |
30-70Min |
9.5m³ |
2300KG |
|
600KG |
350KW |
380V |
3 |
560A |
400KVA |
750V |
1KHZ |
40-80Min |
11m³ |
2500KG |
|
750KG |
450KW |
380V |
3 |
720A |
500KVA |
750V |
1KHZ |
40-80Min |
12m³ |
3800KG |
|
1000KG |
600KW |
380V 380V-2 |
3/6 |
960A 480A |
600KVA 800KVA |
750V 1300V |
0.8KHZ |
50-90Min |
13m³ |
4500KG |
|
1250KG |
800KW |
380V 380V-2 |
3/6 |
1280A 640A |
800KVA 1250KVA |
750V 1300V |
0.8KHZ |
50-90Min |
14m³ |
5000KG |
|
1500KG |
1000KW |
380V 380V-2 |
3/6 |
1600A 800A |
1250KVA 1500KVA |
750V 1300V |
0.8KHZ |
50-90Min |
15m³ |
5500KG |
|
2000KG |
1250KW |
660V 380V-2 |
3/6 |
1120A 1000A |
1500KVA 1800KVA |
1300V |
1300V |
50-90Min |
17m³ |
6000KG |
|
3000KG |
1500KW |
660V 380V-2 |
3/6 |
1350A 1200A |
1800KVA 2000KVA |
1300V |
1300V |
60-100Min |
20m³ |
7000KG |
|
5000KG |
2500KW |
1000V 660V-2 |
3/6 |
2000A 1120A |
3000KVA 3500KVA |
1300V |
1300V |
60-100Min |
23m³ |
8500KG |
