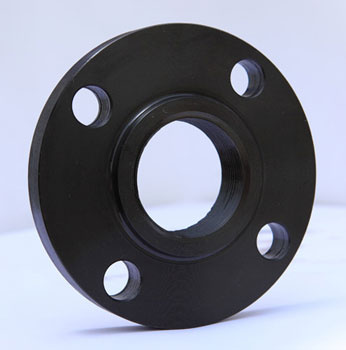

ASME B16.5 Threaded Flange
A flange is a method of connecting pipes, valves, pumps and other equipment to form a piping system.
It also provides easy access for cleaning, inspection or modification. Flanges are usually welded or screwed.
Flanged joints are made by bolting together two flanges with a gasket between them to provide a seal.
Size: 1/2" to 60", DN 12mm to DN 1500mm
Pressure Class: Class 150 to 2500, PN 2.5 to PN 250
Facing: RF / RTJ
Material:
Carbon Steel: Grade Q195, Q235, Grade A105, Grade A350LF2
Stainless Steel: Grade A182, Grade F304 / F304L / F316 / F316L / F321
Alloy Steel: Grade F11, Grade F12
------------------------------------------------
Standards, Dimensions & Weight
Welding Neck Flange
ASME/ANSI B16.5 Class 150 to Class 2500 WN
JIS G3451 F12/F15 WN
JIS B2238 40K/63K WN
JIS B2220 30K WN
BS4504 111 PN6 to PN 40
BS 3293 Class 150 WN
BS 3293 Class 300 WN
BS 3293 Class 600 WN
DIN 2631 PN 6
DIN 2632 PN 10
DIN 2633 PN 16
DIN 2634 PN 25
DIN 2635 PN40
EN1092-11 PN6 to PN40 WN
SABS 1123 600/2 to 4000/2 WN
GOST 12821 PN1.0 to PN10
------------------------
Threaded Flange
ASME/ANSI B16.5 Class 150 TH
ASME/ANSI B16.5 Class 300 TH
ASME/ANSI B16.5 Class 600 TH
ASME/ANSI B16.5 Class 900 TH
BS4504 113 PN6 to PN40 TH
DIN 2565 PN6
DIN 2566 PN10/PN16
DIN 2567 PN25/PN40
EN 1092-13 PN6 to PN40 TH
SABS 1123 600/4 to 400/4 TH
------------------
Blind Flange
ASME/ANSI B16.5 Class 150 to 2500 BL
ASME B16.47 Series A/MSS SP-44 Class 150 BL to 900 BL
ASME B16.47 Series B/API 605 Class 75 BL to 900 BL
JIS B2220 2K to 30K
JIS B2238 40K/63K
BS 4504 105 PN6 to PN 40 BL
BS 10 Table D/Table E
SABS 1123 Class 600Kpa to4000Kpa
DIN 2527 PN10 to PN40
EN1092-05 PN6 to PN40 BL
GOST 12836 PN1.0 to PN4.0 BL
---------------------
Slip on Flange
ASME/ANSI B16.5 Class 150 Class 900 SO
JIS B2220 5K to 30K SOH
BS4504 112 PN6 to PN40 SO
BS 3293 Class 150 to Class 600 SO
DIN 86029 PN 10
DIN 86030 PN 16
EN1092-12 PN6 to PN40 SO
---------------------------------
Socket Welding Flange
Standards, Dimensions & Weight
ASME/ANSI B16.5 Class 150 to Class 1500 SW
JIS B2220 2Kg/cm2 to 40 Kg/cm2
Lap Joint Flange
Plate Flange
...
etc.
