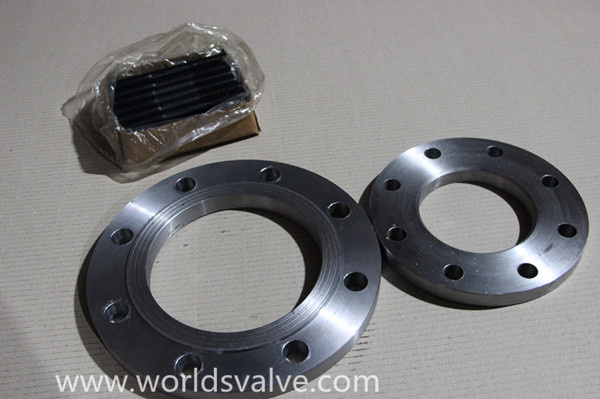

joint flange
Model: P32
Material:Carbon steel A36/A105/Rst37.2/C22.8/Q235 Stainless steel 304/304L,316/316L,321, A350 LF2, F60 ect.
Size:2"~40"
Pressure:150lbs-2500lbs
Facing:RF/FF/RTJ
Standard:ANSI B16.5
Wall thickness:SCH40,STD,ect and other wall thickness you required.
| Size (NPS) | 2"~40" |
| Rating | 150LBS--2500LBS |
| Material | A36, A105, Q235, A350 LF2, F60, F304, F316, F304L, F316L |
| Standard | ANSI B16.5 |
| Other | Suplly EN10204 3.1 Certificate,Radius can be made according to requirement |
1.Type
Welding Neck Flange, Slip On Flange, Blind Flange, Socket Welding Flange, Threaded Flange, Reducing Flange, Spectacle Blind Flange, Orifice Flange Special flanges according to drawing
2.Connect Face
Raised face, Flat Face, Male& Female face, Tongue and Groove face, Ring Type Joint face, etc
3.Pressure:
150#, 300#, 600#, 900#,1500# ,5K,10K,16K,20K.DIN2573, 2572, 2631, 2576, 2527, 2632, 2543, 2527, 2633, 2545, 2527, 2635, 2634,
4.Executive Standard
ASME B16.5 ,B16.36,B16.47,B16.48, ANSI/AWWA C207, API 605,API590, EN1092 , EN1759, EN 1514, DIN 2848,DIN2874,BS1560,BS3293, BS4504 ,ISO7005, JIS B2220 JIS2216 JPI 7S-15 SABS 1123.
5.Material
A105/A105N, A182 F11,F12,F304,F304L,F316L, A350 LF1,LF2,LF3,LF5,LF9;A694F42,F46,F48,F52,F60,F70,P245GH,P280GH,P305GH
6.Surface Treatment and Packing
Paint Black Lacquer or Transparent Oil .Wooden Case or Wooden Pallet or as per customers' requirements.
7.Payment :30%T/T in advance, balance after BL copy.
8.Minimal qty of order:5pcs
9.Origin:China
| The General ASTM Material For Flanges |
|
Class and Sort
| Chemical Components % | Mechanical Property |
|
| C(Max) | Si(Max) | Mn(Max) | Cr(Max) | Ni(Max) | Mo(Max) | P(Max) | S(Max) | Tensile Strength
mpa(Min) | Yield Strength
mpa(Min) | Elongation
mpa(Min) | Hardness
(Max) |
ψ % |
ASTM
A105/A105M | A105 | 0.35 | 0.10-0.35 | 0.65-1.05 | 0.30 | 0.40 | 0.12 | 0.035 | 0.040 | 485 | 250 | 22 | 187 | 30 |
ASTM
A182/A182M | F11CL1 | 0.05-0.15 | 0.50-1.00 | 0.30-0.60 | 1.00-1.50 | ... | 0.44-0.65 | 0.030 | 0.030 | 415 | 205 | 20 | 121-174 | 45 |
| F11CL2 | 0.10-0.20 | 0.05-1.00 | 0.30-0.80 | 1.00-1.50 | ... | 0.44-0.65 | 0.040 | 0.040 | 485 | 275 | 20 | 143-207 | 30 |
| F11CL3 | 0.10-0.20 | 0.05-1.00 | 0.30-0.80 | 1.00-1.50 | ... | 0.44-0.65 | 0.040 | 0.040 | 515 | 310 | 20 | 156-207 | 30 |
| F12CL1 | 0.05-0.15 | 0.50 | 0.30-0.60 | 0.80-1.25 | ... | 0.44-0.65 | 0.045 | 0.045 | 415 | 220 | 20 | 121-174 | 45 |
| F12CL2 | 0.10-0.20 | 0.10-0.60 | 0.30-0.80 | 0.80-1.25 | ... | 0.44-0.65 | 0.040 | 0.040 | 485 | 275 | 20 | 143-207 | 30 |
| F304 | 0.08 | 1.00 | 2.00 | 18.0-20.0 | 8.0-11.0 | ... | 0.045 | 0.030 | 515 | 205 | 30 | ... | 50 |
| F304H | 0.04-0.10 | 1.00 | 2.00 | 18.0-20.0 | 8.0-11.0 | ... | 0.045 | 0.030 | 515 | 205 | 30 | ... | 50 |
| F304L | 0.030 | 1.00 | 2.00 | 18.0-20.0 | 8.0-13.0 | ... | 0.045 | 0.030 | 485 | 170 | 30 | ... | 50 |
| F316L | 0.030 | 1.00 | 2.00 | 16.0-18.0 | 10.0-15.0 | ... | 0.045 | 0.030 | 485 | 170 | 30 | ... | 50 |
| F317 | 0.08 | 1.00 | 2.00 | 18.0-20.0 | 11.0-15.0 | ... | 0.045 | 0.030 | 515 | 205 | 30 | ... | 50 |
| F321 | 0.08 | 1.00 | 2.00 | 17.0-19.0 | 9.0-12.0 | ... | 0.045 | 0.030 | 515 | 205 | 30 | ... | 50 |
| F347 | 0.08 | 1.00 | 2.00 | 17.0-19.0 | 9.0-13.0 | ... | 0.045 | 0.030 | 515 | 205 |
