Carbon briquette machine of different shapes balls
Brief Instruction of carbon briquette machine :
Briquetting of carbon briquette machine is the transformation of powdery or gra
nular raw materials into a larger more convenient size with different shapes. This
is accomplished by compacting the raw materials with the rollers pressing.
Raw materials :
Coal and charcoal powder, zinc oxide, lead oxide, calcium chloride, calcium phosphate.
High test bleaching powder, cryolite, chemical inhibitor, silica, Isophthalodinitrile etc.
Features :
The machine can press all kinds of mineral powder, metal powder, coal powder, coke
powder and other materials to make them molded. Because of the mandatory squeeze
rollers , so the products have the three high characteristics : high density ,high strength ,
high hardness, Because of the mandatory squeeze rollers, so the products have high
density, high strength, high hardness, and the local roll is used in 650Mn hard materials
with good wear resistance. Effectively improve
the life of a roll.
Working Principle :
This series of pressure machine will pass the power on to the two pressure roller through
the reducer. The two sides and roll rotation, in both the rotating roll, Natural materials to
enter the briquette roll mode, with the roll rotation, material pressure on a small become
larger, When the material to the two rollers rotating line contact point, the pressure of ma
terials has reached the peak. Tremendous pressure in the role of line, the materials become
a finished product from the powder briquette.
Technical Parameters :
Type |
Roll diameter(mm) |
Capacity(t/h) |
Power(kw) |
ZKBM290 |
290 |
1-3 |
5.5 |
ZKBM360 |
360 |
4-6 |
11-15 |
ZKBM430 |
430 |
6-8 |
18.5 |
ZKBM500 |
500 |
7-9 |
18.5-55 |
ZKBM500H |
500 |
7-9 |
20.7-57.2 |
ZKBM650 |
650 |
10-15 |
37-45 |
ZKBM650H |
650 |
10-15 |
39.2-47.2 |
ZKBM750 |
750 |
15-20 |
75-110 |
ZKBM750H |
750 |
15-20 |
78-113 |
ZKBM850 |
850 |
20-25 |
90-110 |
ZKBM850H |
850 |
20-25 |
93-113 |
ZKBM1000 |
1000 |
25-30 |
90-132 |
ZKBM1000H |
1000 |
25-30 |
93-135 |
Remarks: Based on different materials, briquettes size, capacity, the technical parameter is adjustable. |
Working principle :
This series of pressure machine will pass the power on to the two pressure roller
through the reducer. The two sides and roll rotation, in both the rotating roll, Natural
materials to enter the briquette roll mode, with the roll rotation, material pressure
on a small become larger, When the material to the two rollers rotating line contact
point, the pressure of materials has reached the peak. Tremendous pressure in the
role of line, the materials become a finished product from the powder briquette.
Operation :

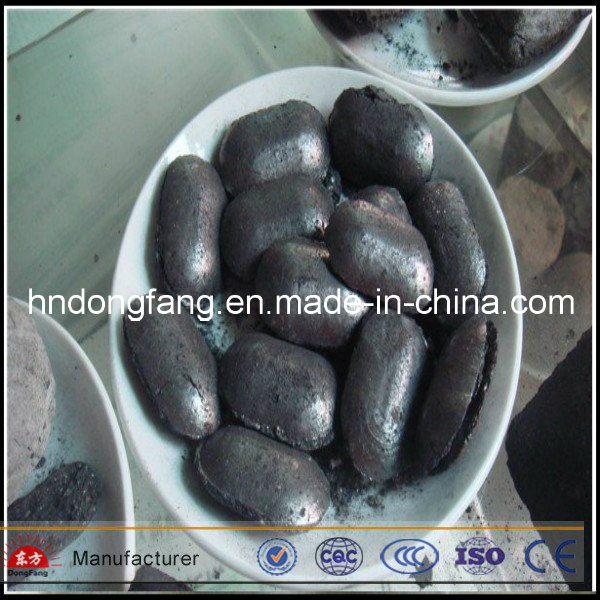

1. The shapes of briquettes: square, oval, goose egg, circular, pillow, bread,
cylinder, etc. You can also has your own ideal shapes, we will make the moulds
as your requirements.
2. Application: for coal, charcoal, chemical engineering, metallurgy, building material,
plastic, ceramics, cast, etc, sectors.
3. Size: in a certain limits can be devided by yourself.
