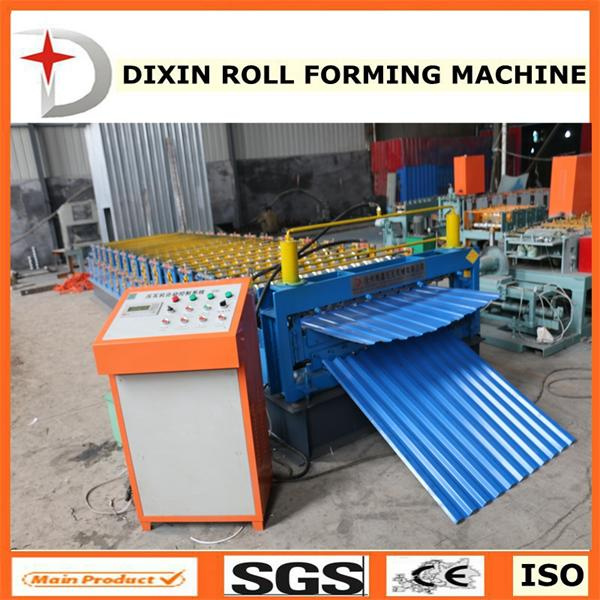

c8-c21 double layer steel roof tile forming machine
(1) Suitable material: galvanized sheet/ aluminum
(2) Thickness of the plate :0.3mm-0.8mm
(3) Input width: 1250mm
(4) Productivity :8-12m/min
(5) Roller steps :15 stations
(6) Roller material: 45# steel Rolling chromium thickness:0.05 mm
(7) Diameter of active shaft: 80mm
(8) Wall thickness of the main forming machine: 14mm steel plate
(9)Main forming machine body : 300mmH steel
(10)Cutter Standard:Cr12
(11)Power Supply:380V, 3-Phase,50Hz or any
(12) Schneider PLC control system, easy to operate.
(13) Roller Standard:45# Steel plating Chrome with heat treatment
Hydraulic shearing
Material of blade |
Cr12,heat treatment 60-62°C |
Shearing system |
It is controlled by gear wheel oil pump. After filling the hydraulic oil into the hydraulic oil tank, the pumps drive the cutter machine to begin the cutting job.
The system includes a set of hydraulic tank, a set of hydraulic oil pump, two hydraulic pipes. And two sets of electromagnetism valves.
Power of the oil pump: 4kw
Hydraulic oil :40# |
Electrical system
Screen display |
5.7 inches TaiDa screen |
Main computer control cabinet |
It adopts industrial computer to control. The target piece's length is adjustable and digit of it can be adjusted. Computed mode has two modes: automatic and manual one. The system is easy to operate and use.
Processing precision : within 1.00mm
It contains liquid crystal screen, programmer, transformer for the electronic machines and kits of every part.
Transducer brand isEURA
The seller should provide Chinese and English language screen. |
3.Components of line,work flow
No. |
Name |
Unit |
Qty |
1 |
Manual decoiler |
set |
2 |
2 |
Main machine(roll forming machine) |
set |
1 |
3 |
PLC Control system |
set |
1 |
4 |
Hydraulic system |
set |
1 |
5 |
Automatic cutting |
set |
1 |
6 |
Production table |
set |
1 |
