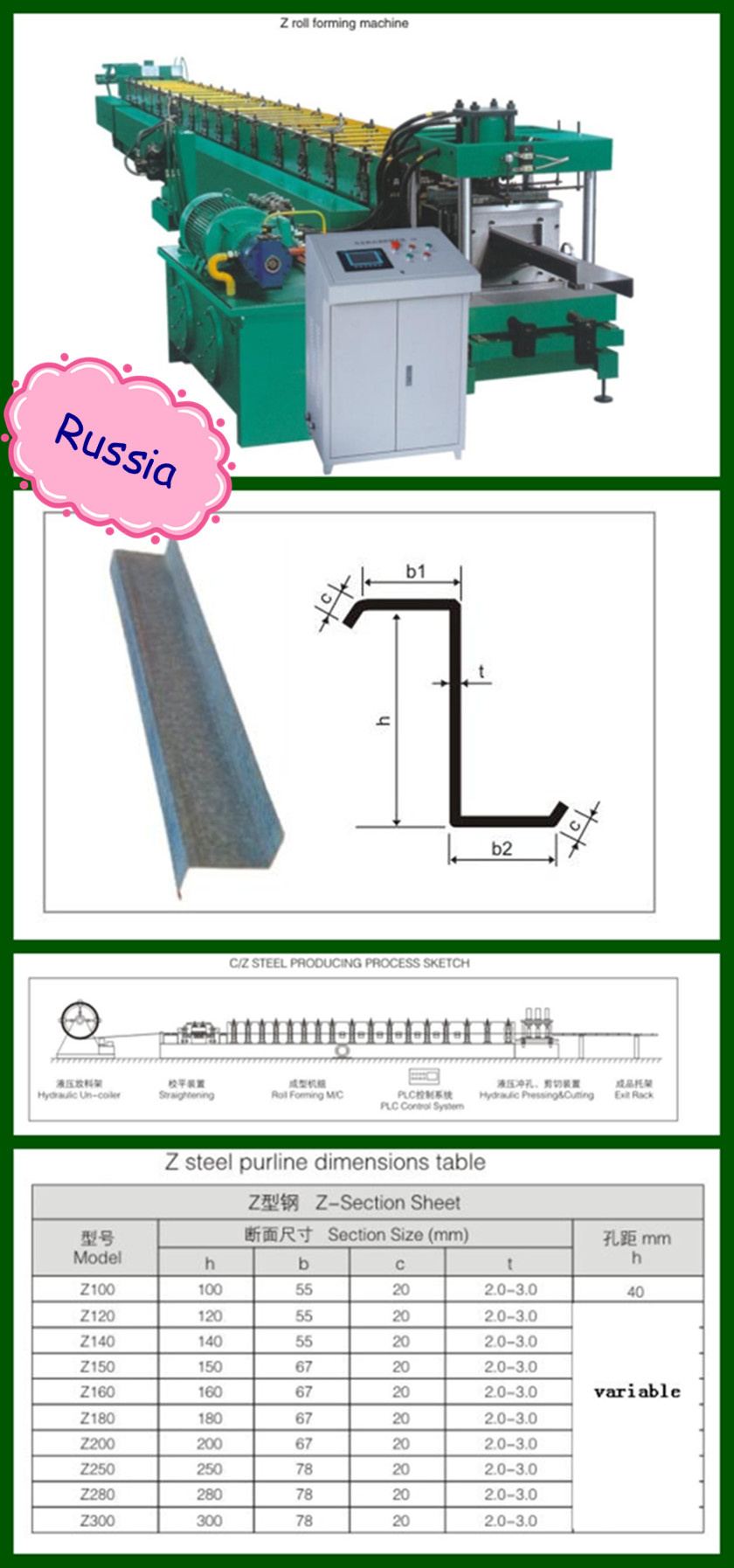

Z purlin cold bending roll forming machine
The z purline formed by this C purline forming machine has many advantages: Well compressive strength and flatness; Automatic measureing, cutting and punching; High-level of automation and conveinent installation. It can be used in the main body stress structure of the large and medium-size enterprises civil construction, like the plant, the warehouse, locomotive shed, hanger, exhibition building, theatre, stadiums, roofing load-bearing load and wall surface support of the arbour.
Main parameter:
1. Install dimension: 13500mm*2200mm*1500mm
2. Roller stations: 13-15 rows
3. Rolling material: Gcr 15
4. Main motor power: 11 KW
5. Hydraulic unit power: 11 KW
6. Pressure of the hydraulic unit: 18-20Mpa
7. Working Productivity: 0-10 m/min
8. Punching material: Cr12
9. Electric control system: PLC vector inverter
10. Rzw material thickness: 1.5-3.0mm
11. Forming standard: 80-300
12. / \ shaped rib (optional)
Flow chart:
Decoilling the sheet--sheet guilding--film covering--roll forming--measure length--cutting the panel--panel to the supporter
|
Suitable to process |
Hot and cold rolling plate |
|
Thickness of the plate |
13-30mm |
|
Width of the plate |
80-300mm |
|
Productivity |
6-8m/min |
|
Rollers |
13 |
|
Rolling material |
Forging steel 45# |
|
Diameter of the roller |
Φ 90mm |
|
Mould material |
Bearing steel, lathe-turning , 63° quenching, hard chrome plating |
|
Frame |
400H |
|
Specifications of frame |
Q235 |
|
Side board thickness |
20mm |
|
Drive |
1inch chain |
|
Reducer |
NO. 8(speed ratio1: 76) |
|
Control system |
PLC |
|
Size |
10*1.5*1.5m |
|
Weight |
7t |
|
Main motor power |
15kw |
|
Hydraulic power |
5.5kw |
|
Voltage |
380V OR 220V |
|
Botou xinsheng roll forming machinery factory, dedicated to focus on cold_formed metal plate roll forming equipment and manufactureing, now has a unique mode of management and product development capacity, ranking with the industy-leading level. My plant products due to structural light, design reasonable, constantly updated and greatly favored customers.
My factory is located in the Bohai Sea Economic circle, China foundary city-Botou city, north of Beijing and Tianjin, East Bohai Sea, 104, 106National Road, Beijing-Shanghai Railway, Beijing-Fuzhou Expressway runs through the city, convenient transportation and location.
My factory'main products include: Glazed tile equipment, building equipment contractors board, C/Z shaped steel forming equipment, composite plate molding equipment, automobile car plate, anode plate, such as dust removal equipment, and in accordance with the actual needs of the user-made production. At the same time provide users with pre-sales, after a series of technical guidance, production, installation, repair through-train service.
