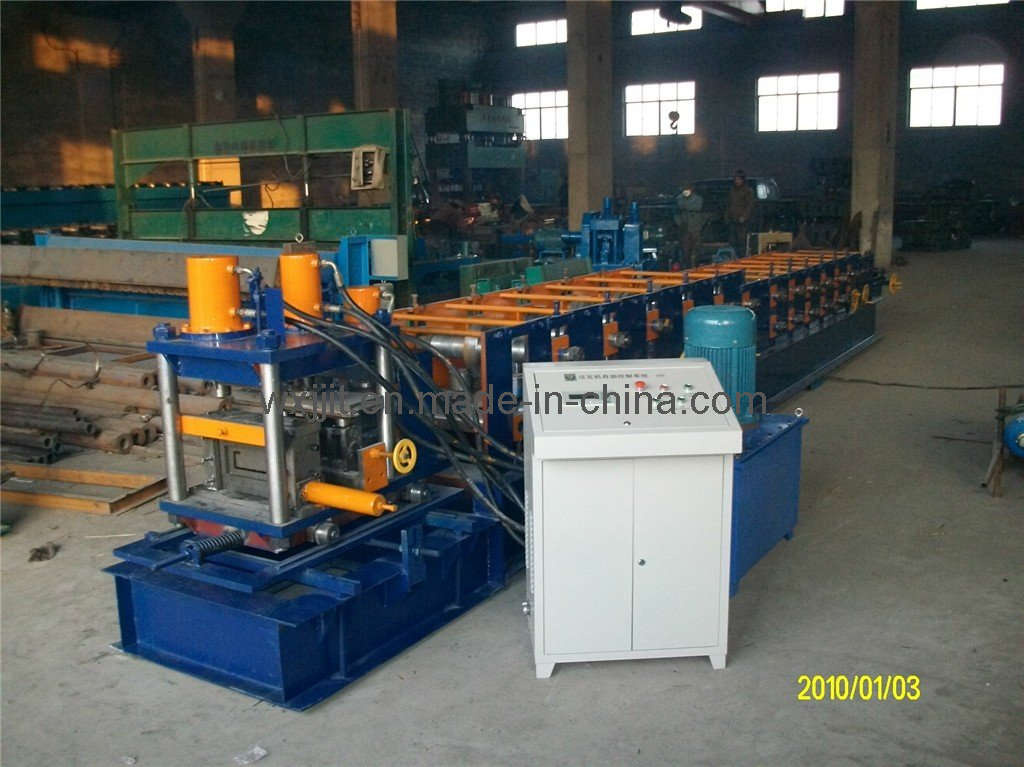

Man-made uncoiler-Roll forming machine-compture control system-hydraulic control system-form cutter
1. Leak frame load-bearing: 4T
2. Rack: Welding with 300H steel
3. The form of forming machine guiding filling: Side skip
4. The form of forming machine: Chain drive with wallboard type, the thickness of wallboard is 12mm.
5. Diameter of Shaft is: 72mm
6. Chain: 0.6 inch single row
7. Main motor power: 3kw double pole reduction box
8. Forming Speed: 8m/min
9. Number of tracks: 11 tracks
10. Roller material: High grade 45#steel
11. Hydraulic station power: 3kw
12. Hydraulic station oil pump: Gearpump
13. Cutting type: Hydraulic cut
14. Forming Cutting blade: Cr12
15. Heat treatment on cutting blade: HRC58° -60°
16. Thickness of coil sheet: 0.3-0.8mm
17. Coil width of material: 1000mm
18. Index error of length: ± 2mm
19. Controlling system: PLC
20. Voltage: 380V 3phase 60 Hz or at buyer's requirement
Use: Roof
Suitble material: Galvanized steel, aluminum
Width of the plate: 1000mm
Rollers: 10-12 rows
Thickness of the plate: 0.3-0.8mm
Weight: 5-8t
Wuxi Jing Jia International Trade Co., Ltd. is located by the coast of beautiful Tai Lake of the Yangtze River Delta, Wuxi, with Shanghai-Nanjing Railway, Xin-Chang Railway, Beijing-Shanghai Expressway, Shanghai-Nanjing Expressway and Huyi Expressway converging and the Grand Canal (China) passing through, only 100m from National Highway 312. It is a modern technology enterprise integrating R&D, manufacture, technical service and import & export trade. Our tenet is "Build Credit Once, Serve You Forever!
To adapt to the development of domestic and foreign steel structure, the company has been engaged in production of steel structure roofs and wall containment channeled steel plate equipment for years. It is also committed to the R&D of new products. We have developed many series of channeled steel plate production lines from the initial monolayer corrugated sheet pressing production line, such as slitting line production line, series hidden gripping wall roof plate production line, series colorbond sandwiched steel plate production line, series C-type steel and Z-type steel numerical control tape punching and purlin production line, series floor steel bearing plate production line, PU load board production line, series arch roof with or without beam and series production equipment, fully meeting requirements of all steel buildings.
Our company has strong technical strength, high-level management personnel, strong production capacity and complete quality tracking and detection. We have passed the certification of ISO9001: 2000 Quality Management System, and the quality management during production strictly executes 9001 standard. The company has ranked among the industry in China, our users spread all over China and our products are exported to many countries and regions in Southeast Asia, South Africa, America, etc. We have established good cooperative relationship with many manufacturers and distributors, forming wide product marketing channels.
Wuxi Jing Jia International Trade Co., Ltd. will give play to its advantages of technology, market channel and market development capacity to provide professional and excellent service for manufacturers and users at home and abroad.
