We are the leading manufacturer and export of Phosphor Bronze Strips with ASTM and JIS standard, we can supply Phosphor Bronze Strips as follow:
Specifications
phosphor bronze strip:
1) Thickness 0.15mm - 4.0mm
2) Alloy brand: C5191, C5210, C5102. C5212 etc
3) Width: 8mm-610mm.

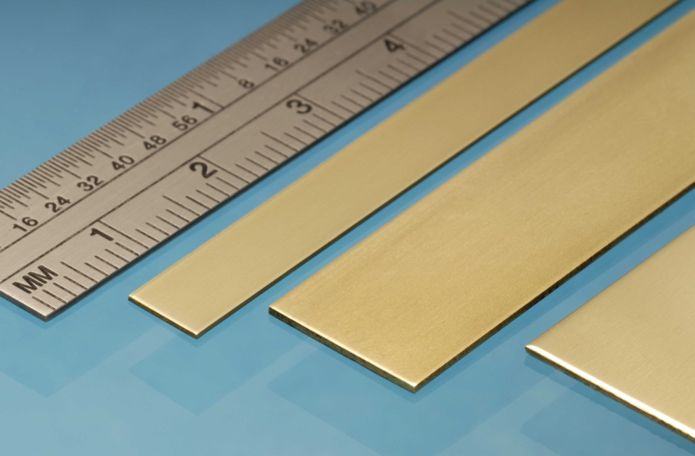

bronze strip
Specifications of phosphor bronze strip
1) Thickness 0.15mm - 4.0mm
2) Alloy : C5191, C5210, C5102. C5212 etc
3) Width: 8 - 610mm
Grade:
C5191 C5210
Chemical Composition:
C5191: Cu + Tin + P >99.5% Tin: 4.5-5.5% P: 0.03%-0.35%
C5191: Cu + Tin + P >99.7% Fe < 0.1% Pb < 0.05% Zn < 0.2%
Tin: 7.0-9.0% P: 0.03%-0.35%
Temper:
1/2H, 3/4H, H, EH, SHPackaging & Delivery
| Packaging Detail: | Standard export seaworthy package of phosphor bronze strip (or by the customer's request) |
| Delivery Detail: | 30 days after received the advanced payment. |
Features of phosphor bronze strip
Good elongation; endurance, and corrosion-resistance; being electroplated well
| Type No. | Alloy No. | Chemical Composition | Features&Application |
| Cu+Sn+P | Fe | Pb | Zn | Sn | P |
|
| PB | C5102 | 99.5> | _ | _ | _ | 4.5-5.5 | 0.03-0.35 | Features:good elongation:Endurance,and corrosion-resistance. |
| C5191 | 99.5> | _ | _ | _ | 5.5-7.0 | 0.03-0.35 | Application:Electronics,Springs,switches,lead frames,connectors,diaphragms,bellows,fuse clips and so on used in electronic machine |
| C5212 | 99.5> | _ | _ | _ | 7.0-9.0 | 0.03-0.35 |
| PBS | C5210 | 99.7> | 0.10< | 0.05< | 0.20< | 7.0-9.0 | 0.03-0.35 | Features:good elongation:Endurance,and corrosion-resistance. |
| Application:Switches,relays,and connectors used in machines of electronics,communication information,and measurement. |
Process of phosphor bronze strip
Raw Material → Melting → Horizontal Continuous Casting → Annealing → Milling
→ Rough Rolling → Side Trimming → Intermediate Rolling → Continuous
Annealing & Picking → Intermediate & Finish Rolling → Degreasing → Strips
Applications of phosphor bronze strip
| C5191 | Electronics, springs, switches, lead frames, connectors, diaphragms, bellows, fuse clips, and so on used in electronic machine. |
| C5210 | Switches, relays, and connectors used in machines of electronics, communication, and measurement.
|
