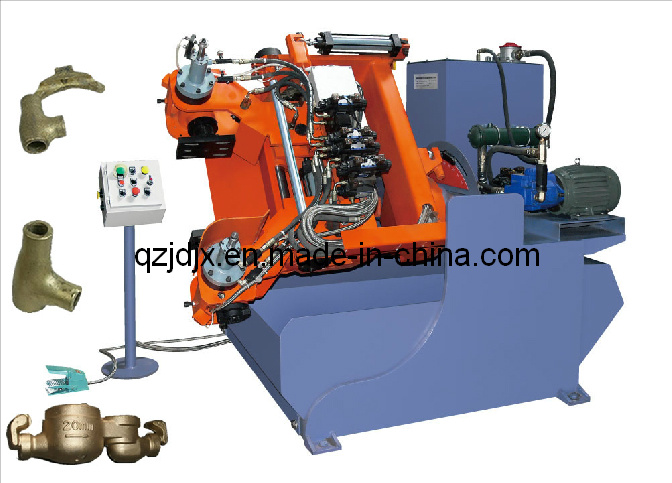

Brass Gravity Die Casting Machines for Brass Castings Manufacturing (JD-AB400)

I. Introduction
1. Application
JD-AB400 gravity die casting machine is used for producing copper alloy castings of large and medium size or castings of small size whose molds contains several cavities.

2. Machine components
The machine consists of three parts, such as mechanical part, pneumatic part and electrical part. Material used in mechanical part is well-selected steel. Both pneumatic and electrical part use products of world-famous brands. Therefore we can assure you that our products are of high quality.

3. Main specifications and technical parameters:
(1) Maximum outlined diameter of mold: 400 mm
(2)Maximum weight of mold: 120 kg
(3)Maximum distance of mold baseplate: 480 mm
(4)Maximum clamping stroke: 250 mm
(5)Angle range of lateral casting: 0~90 deg
(6)Angle range of pre-casting: 0~110 deg
(7)Angle range of mold immersion: 0~90 Centigrade
(8)Oil pressure: 50~70 bar
(9)Power capacity: 5.25 kw
(10)Three phase power: 380 V/ 50Hz
(11)Oil tank capacity: 220 L
(12)Capacity of mold immersion tank: 750 L
(13)Machine weight: 2000 kg
(14)Machine size( L× W× H): 1300mm× 1600mm× 1350mm

II. About the after- sale services
In the meantime, we own strong administrant and technical teams to ensure that our innovation and improvement ability can keep up with changeable market requirements. In order to satisfy our customers better, we can also make machines according to our customers' specific needs.

Our after-sale service is prompt and patient. Once you place an order, we are willing to give you support in installment and labor training. During the production period, if you meet any problems that you are not able to deal with, you could contact us. We will try our best to help.

The advantage of gravity casting technology
Item	Gravity casting technology	Foundry casting technology
Product quality	The structure of the casting is compact and both of its inside and outside surfaces are smooth . The  sizes of castings are concordant . The fine machining speed is fast  and polishing rate is high .	There are some dregs and sands on the surface of the castings. Its structure is loose and both of the inside and outside surfaces are rough. The sizes of castings are not concordant . The fine machining speed is slow and polishing rate is low.
Qualified rate	92%~98%, high qualified rate	High rejection rate
Labor productivity	It needs only 7 persons .	It needs more than 14 persons .
Pollution situation	Casting temperature is low . Its pollution and noise are also low .	It produces smoke . Its pollution and noise are high .
Operation situation	Simple and easy learned operations and  skills can  be  mastered in 2 hours. Its labor consumption is low .	Its operation is difficult to learn, and it is high in both labor consumption and labor intensity
Cost accounting	Its labor cost is low . Copper consumption and spoiled  product r ate are low .It can increase production quantity and product quality is stable .	Its labor cost is high .Copper consumption and spoiled  product rate are high . Production quantity is low and product quality is not stable

Main specifications and technical parameters
Maximum outlined diameter of mold	400 mm
Maximum weight of mold	120 kg
Maximum distance of mold baseplate	480 mm
Maximum clamping stroke	250 mm
Angle range of lateral casting	0-90deg
Angle range of pre-casting	0~110 deg
Angle range of mold immersion	0~90 Centigrade
Oil pressure	50~70 bar
Power capacity	5.25 kw
Three phase power	380 V/ 50Hz
Oil tank capacity	220 L
Capacity of mold immersion tank	750 L
Machine weight	1600 kg
Machine size( L× W× H)	1300mm× 1600mm× 1350mm
