The bacteria body centrifuge separator has strong capability for bacteria separation from the yield.

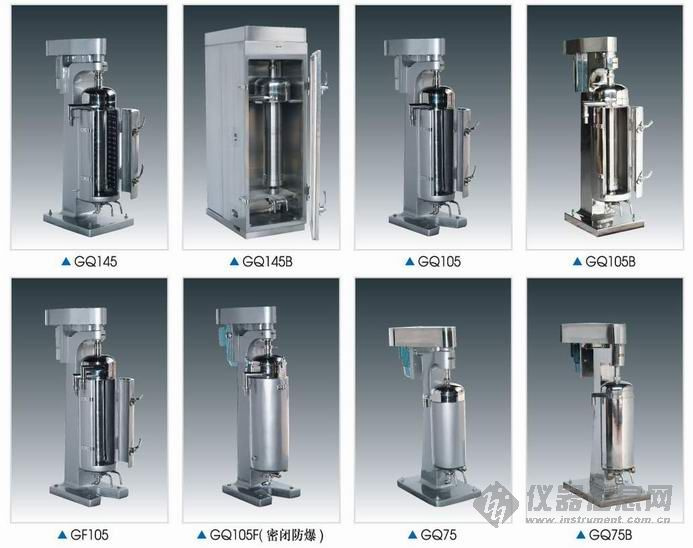

GQ Tubular Bowl clarification Centrifuge is mainly used for liquid-solid separation. It is a high-speed centrifuge with strong separating capacity. The bowl of the centrifuge rotates around its axis and forms a strong centrifugal force, the centrifugal force separates suspension into liquid and solid.
The suspension is fed through the bottom of the machine and is introduced into the bowl which has one outlet at the top. The clarified liquid is removed from the top outlet and leaving the solids deposit on the bowl's wall. The accumulated solids are recovered manually from the bowl when the centrifuge is shut down.
The bacteria body centrifuge separator has strong capability in separation. The parts contact with the material is made of stainless. The machine body can be stainless or iron casting with painting according to the requirement of the customer and the material to be separated.
Throughput capacity: 200L/h - 3000L/h.
Mode | GQ80
| GQ105 | GQ125 | GQ150 |
Drum | ID(mm) | 75 | 105 | 125 | 147 |
| Height (mm) | 450 | 730 | 730 | 730 |
| Sedimentation volume(L) | 2.67 | 6 | 8 | 10 |
| Max speed(r/min) | 21000 | 19000 | 17500 | 16000 |
| Max separation factor | 22500 | 21000 | 21000 | 21000 |
| Inlet nozzle diameter (mm) | 3/4/6 | 4/6/8 | 6/8/10 | 8/10/12 |
| Material inlet pressure (Mpa) | ≥0.05 |
| Capacity (water capacity)L/H | 260 | 1600 | 2200 | 3200 |
| Actually Capacity L/H(according to the solid content) | 50-80 | 300-500 | 500-700 | 800-1000 |
| Motor model | 3 phase two pole motor |
| Motor power (kw) | 1.5 | 2.2 | 3 | 3 |
| Machine dimension (mm) | 500*700*1300 | 600*1000*1600 | 600*1000*1600 | 600*1000*1600 |
| Machine weight (kg) | 300 | 460 | 490 | 510 |
Liaoyang Hongji Machinery Co., Ltd. is specialized in manufacturing pharmaceutical machinery, especially professional in Separator and Centrifuge technology and manufacturing. The company possesses rich technologies, advanced production facilities and perfect test measurements and has developed many high-tech products. It has got the quality certification of ISO9001: 2000. Because of the advanced technology and reliable quality, the performance of the products has reached the advanced international level of 21st century. The company has won the support and trust from the customers due to its good reputation, reliable quality and first-class after-sale service.
Thus the products are sold all over China. Furthermore, they have been exported to many countries in Eurasia. The company's main products are as follows: Tubular centrifuges, Cup type precipitation centrifuges, 3-point setting centrifuges, 3-point filtering centrifuges and various centrifugal equipment, among which the tubular centrifuges are the "first" excellent and superior products. The machine can meet the requirements of GMP certification.
And centrifugal equipment of various materials can be specially made for different users. We are wholehearted to create brilliant future together with the friends at home and abroad!
