Alloy Steel Flange:
Alloy flange is mainly used in the special characteristics of piping and pipelines, mostly for high-temperature & high-pressure position. The common materials are 12Cr1MoV, 15CrMo, P91, P22, 10CrMo910, etc.
1.Product details:
| Materials | Carbon Steel: ASTM A105. ASTM A350 LF1. LF2, CL1/CL2, A234, S235JRG2, P245GH and so on |
| P250GH, P280GHM 16MN, 20MN ,20# |
| Stainless Steel: ASTM A182, F304/304L, F316/316L and so on |
| Alloy Steel: A182 F11, A182F22, A182F12, A182 F5, A182F91, A182 F9 and so on |
| Types | Slip On Plate Flange/Plate Flange , Slip On Hub Flange/Bossed |
| Welding Neck Flange/WN flange/ Loose Flange/Lapped Flange /Backing Flange |
| Blind Flange/Blank flange, Lap Joint Flange /LJ Flange |
| Socket Weld Flange/SW Flange Threaded Flange/Screwed Flange |
| Loose Flange/Lapped Flange Backing Flange RTJ /o-Ring |
| Custom Flange/Special Flange Hot/Cold/Electro Galvanized Flange |
| Standards | ANSI/ASME/ASA B16.5 FLANGES, ANSI B16.47 A/B FLANGES |
| JIS B 2220 FLANGES, KS B 1503, DIN SERIES, UNI, EN1092-1, BS4504 |
| BS 10 TABLE D/E/F FLANGES, SANS 1123 FLANGES/SABS 1123 |
| GOST12820-80/GOST12821-80, NFE29203/NS/AS/ISO/AWWA FLANGES |
| Size | DN15 (1/2") to DN5000 (200") |
| Pressure &Ratings | 150LBS, 300,600,900,1500,2500 ANSI, ASA B16.5 |
| PN6 PN10 PN16 PN25 PN40 PN64-DIN/UNI |
| PN6 PN10 PN16 PN25 PN40 PN63-EN1092-1/BS4504 |
| PN0.6Pa, PN1.0Pa, PN1.6. PN2.5,PN4.0-GOST12820-80 |
| PN0.6Pa, PN1.0Pa, PN1.6. PN2.5, PN4.0, PN6.3. -GOST12821-80 |
| 600kPa, 1000.1600.2500.4000.-SANS 1123 |
| 5KG, 10KG, 16KG, 20KG, 30KG, 40KG-JIS B2220/KS B1503 |
| TABLE D, TABLE E ,TABLE F-BS 10, AS2129 |
| CLASS D, CLASS E, CALSS F, AWWA C207 |
| Technical | Forging |
| Surface Treatment | Rust Prevention , Black Paint Coating or Phosphate Treatment with Black Color |
| Varnish Paint Coating, Varnish Oil Coating, |
| Electro Galvanizing Coating (Cold Galvanizing, Color Golden or silvery white, Coating thickness 20~30μm) |
| Hot Dip Galvanizing Coating (Coating Thickness 200μm around) |
2.Application & Type:
Application | Water works, Shipbuilding industry, Petrochemical & Gas industry, Power industry, Valve industry |
| and general pipes connecting projects etc. |
Type:
1) Weld neck flange(WN)
1, Preferred for high-pressure, subzero or elevated temperature
2, Hub is tapered and bored to match pipe's inside diameter so flow is not restricted, preventing turbulence and reducing erosion
3, Easily radiographed and provides excellent stress distribution

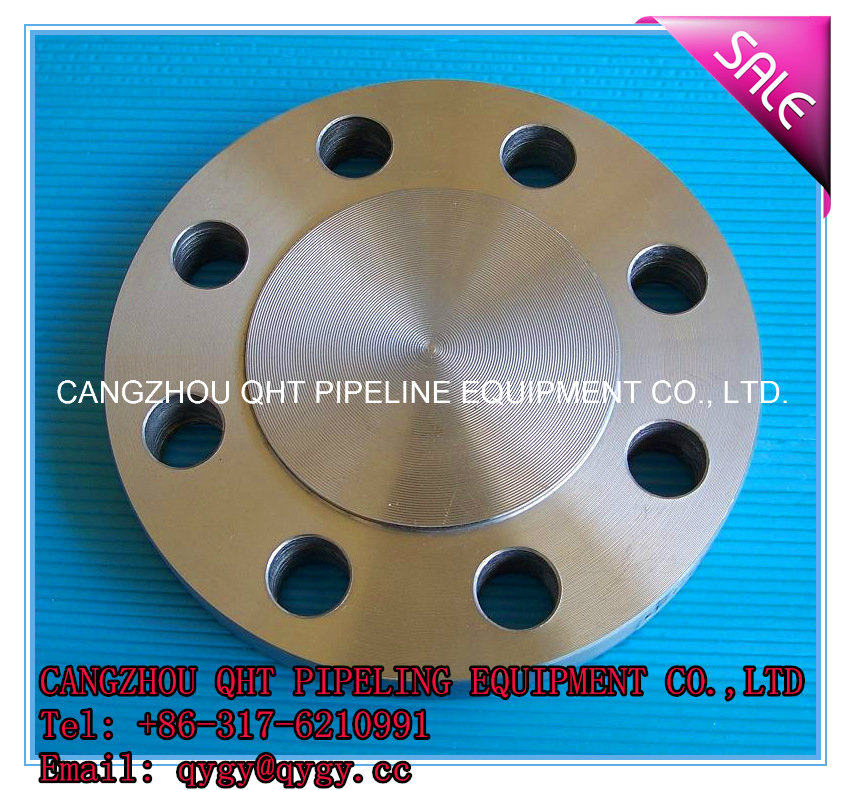

2) Blind Flange (BL)
1, Used to close ends of piping
2, Has no bore
3, Permits access to sealed lines
3) Lap Joint Flange (LJ)
1, Used where bolt alignment or access for cleaning is required
2, Similar to slip-on flange when used with lap joint stub end
3, Radius at intersection of flange face and bore to match lap joint stub end
4) Slip On Flange(SO)
1, Not normally used in high-stress applications due to low hub and weld attachment
2, Silps over outside of pipe
3, Inside of flange welded at hub and end of pipe
5) Socket Welding Flange (SW)
1, For small-diameter chemical processes, hydraulic and stream distribution lines
2, Similar to slip-on flange
3, Counter bore matches pipe bore, allowing unrestricted flow
4, Counter bore from hub side fits pipe's outer diameter - can insert pipe in socket with fillet weld at hub
6)Thread Flange (TH)
1, Used where welding would would be hazardous
2, Designed for low-pressure and non-cyclic applications
3, Bore is threaded to match pipe thread
4, Tapered to seal pipe and flanges
7)Other flanges
Orifice, Expander, Reducing, Lightweight, Studding Outlets, Long Weld Necks,Metric, Navy Drawings
3.Certificate & Inspection:
ISO9001:2008, SGS, BV, API etc.
Quality Control System-Well Equipments and Machinery-Well Workers and Engineers
4.QA & DOC:
Product Certificate, Chemical Composition Report, Mechanical Properties Report, UT Report, Heat Treatment Report, Dimensions Check Report.
5. Production process:
6.Delivery Time:
According to customer's requirement(within 5-30 working days)
7. Productivity: 500Tons/Month
8. Other steel pipe fittings:
| Descriptions | Size | Remarks |
| Elbow | 45°/60°/90°/180° |
1/2"-48"
| Standard: ANSI; BS; JIS; DIN; MSS; etc |
| Flanges | PL/SO/WN/SW/BL/IF |
1/2"-48"
| Material: Carbon steel; Stainless steel; Alloy steel;
Cast iron; etc |
| Reducer | CON/ECC |
1/2"-48"
| Structure Technique: Forged and casting flanges.
|
| Tees | Equal/reducer |
1/2"-48"
| Surface Coating technique: Sand Blast; Lacquering; |
| Nipple | Threaded/Hex/ Round | 1/2"-48" | Surface finishing: black, electro-galvanized, hot-galvanized
|
| Union | Male/female |
1/8"-6"
| Pressure:3000#-9000# |
| Outlet | Weldolet/threadolet/socko let |
1/8"-6"
| Standard:MSS SP-97 |
| Cap | BW CAP |
1/2"-48"
| Best price&high quality |
| Coupling | SW/Threaded |
1/8"-6"
| PLE;PSE;TLE,BSE;TOE |
| Plug | Square/hex/round |
1/8"-4"
| Large QTY&Lower price |
| Bushing | Round/Hex/Flush |
1/8"-4"
| Pressure:3000#-9000# |
| Swaged nipple | Threaded/Plain |
1/8"-4"
| SCH10S-SCH80 |
9. Others:
1) Special design available according to requirement
2)Anti-corrosion and high-temperature resistant with black painting
3) All the production process are made under the ISO9001:2000 strictly .
10. Packing:
Anti-rust Oil, Transparent/Yellow/Black Anti-rust Paint,Zinc, Hot dipped Galvanized.
Fumigated Plywood/Wood Pallet and Case Wooden Pallets vs Wooden Cases or As Customers' Requirements.
11. Payment terms:
1) T/T;
2) L/C at sight;
3) 30% Deposit in advance and balance should be paid before shipment based on you nominate the forwarder;
4) 30% Deposit in advance and balance should be paid after you get the copy of B/L based on we nominate the forwarder.
12. Clients:
Our main clients are from Turkey, Italy, France, Spain, South Africa, Moroco, Dubai, Iran, Syria, Singapore, Vietnam, Austria, USA, Canada, Mexico, Korea, Thailand, India, Bulgaria, Russia and so on
Why Choose us:
1) Fully Machining Services:
Gringing parts , Machining parts, CNC milling and turning parts , CNC milling parts, CNC
metal parts, grinding parts, stamping parts, casting and forging parts, assembly service.
2) Various Machining Materials:
Metal parts, stainless steel parts, alloy steel parts ,brass parts, bronze parts, copper
parts, aluminum parts, plastic parts, ect.
3) Various Finishes:
Anodizing, Electroplating, Polishing, Powder Coating, Blacken, Hardening, Painting and
many other treatment of the parts.
4)Quality Assurance :
IPQC inspect each precision grinding parts during every processing step; 100% inspection before shipment by micrometer, height gauge, projector measuring machine, coordinate
measuring machine(CMM), ect. Any disqualification will be responsible by us.
5) Advantage:
1>.Non-standard/standard/OEM/ODM/customized service provided
2> No MOQ, no quantity limited
3 >Fast lead time
4> Can meet DIN,JIS,ASTM,AISI,BS,GB standard
