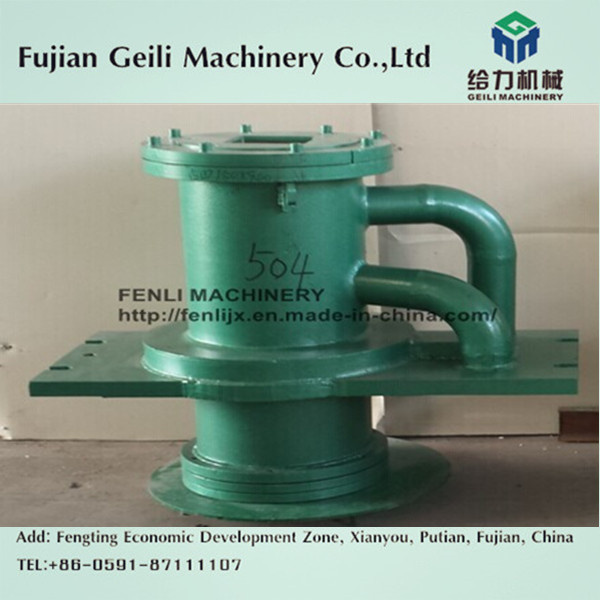

Billet Mould
The mould is the key part of the Continuous Casting Machine. The mould quality will directly influence the quality and production of steel billets.
Adventage:
- Good quality
- Steady performance
- Products are customized for different needs

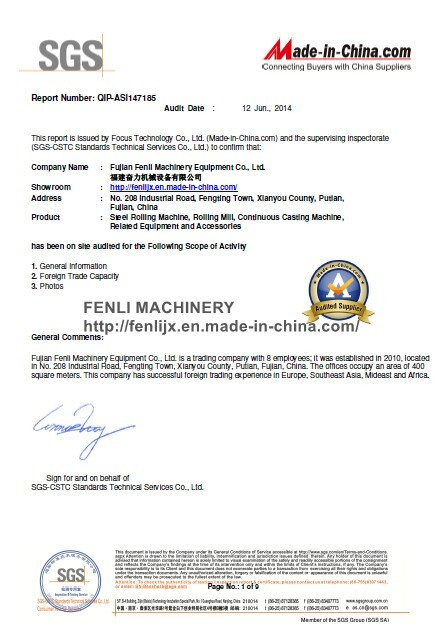

- ISO and SGS certificate
Working Process:
Mechanical part:
1) Ladle turret/ladle moving car/ladle fixed support (determined by customers)
2) Tundish
3) Tundish car
4) Mould
5) Mould vibration device
6) Vibration drive device
7) Protecting cover for vibration device
8) Secondary coolings spraying frame
9) Secondary coolings spraying pipe
10) Spraying nozzle for secondary cooling water
11) Support roller device for secondary and thirdly cooling

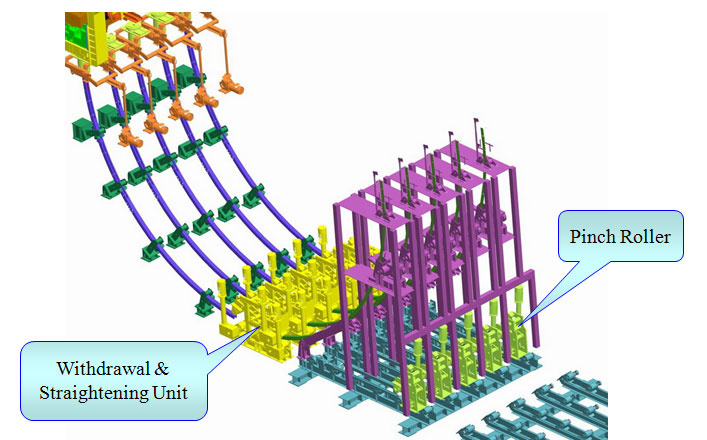

12) Withdrawal straightening machine
13) Transmission device for withdrawal straightening machine
14) Universal joint
15) Rigid dummy bar
16) Dummy bar storage device
17) Guide roller for dummy bar storage device
18) Billet delivery roller table
19) Hydraulic billet pusher
20) Platform for billet collection
21) Flame cutting machine/hydraulic shear (determined by customers)
22) Electrics control system
23) Control system for mould vibration
24) Control system for withdrawal straightening machine
25) Effective control system for dummy bar
28) Control system for billet delivery roller table
29) Control system for billet out
30) Control system for central hydraulic station
31) Steel structure
32) Casting platform
33) Platform for dummy bar storage
Auxiliary system
34) Hydraulic system
35) Discharging device for secondary coolings steam
36) Control system for secondary cooling water
37) Suspended operation box for withdrawal straightening part
38) Special configuration can be provided in accordance with customers requirements
Company profile:
As a professional and experience manufacturer in China, we can supply whole production line from induction furnace, CCM and rolling mills. We can give turn-key service from foundation excavation, production line design, equipment manufacturing, installation and debugging, technician training depending on prominent capacity of designing and manufacturing and abundant practical experience of installation.
Our Service:1) Providing professional proposal of suitable production line as per customers' invest and capacity requirement
2) Providing turn-key service of designing, manufacturing, installation and commissioning for the whole production lines to meet customers requirement
3) Providing foundation layout and arrangement diagram for your plant
4) Providing technical support. We will send various technical staff to the site until the final products are meet to customers' own request.
5) Good after-sales service will be provided. Our long-term technical service will be provided if you want to adjust the production line, develop new products or improve the equipment.
6) Quality warranty will be promised.
If you want to build steel-making factory or the whole production lines, or enlarge the production lines, please don't hesitate to contact us for more information. Professional and prompt proposal will be given you when receipt of your details request
Sincerely welcome you to come and visit our plant!!!
FUJIAN FENLI MACHINERY EQUIPMENT CO. Ltd is a professional & reliable manufacturer specializing in rolling mill and continuous casting machine. Our supplying includes designing, manufacturing, selling and installing full sets of equipments of turn-key service and after-sales service.
Our factory is located in Fujian, it covers an area of 40000 square meters. We have more than 180 workers, 18 senior engineers, 12 senior technicians, 16 administrative staff. We also have many co-operated manufacturers. The founder of our company has more than 25 years' experience in heavy industry. With modern management, advanced technology, strong designing and superior equipment quality and after-sales service, over the years, we won the domestic and overseas market.
Our main products are various specifications of continuous casting machines, rolling mills, steel-making auxiliary equipments, crystallizer, pull machine, ladle, wire rod packing machine, flying shear, roller, reduction box, pinch roll, dust catcher, dummy bar, cooling bed, etc.
We always keep the principle of " higher quality, professional service, competitive price", sincerely welcome you to come and visit our factory to get more information.
