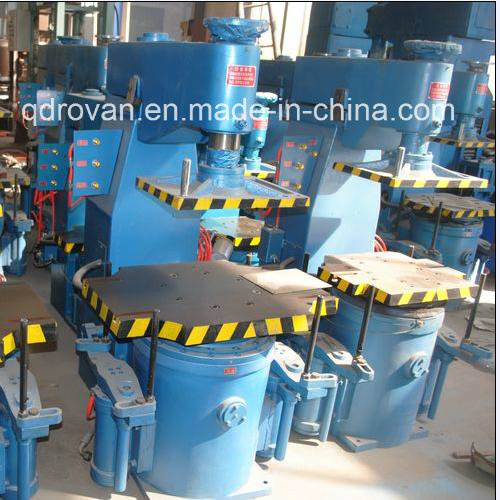

best quality sand mould machine
Z145WA/B Microseism Jolt Squeeze Molding Machine For Foundry
1.The machine using the fuselage box structure basket to improve the body of the steel.
2.It adopt microseism squeeze molding technics used to significantly increase the pressure and the strength to make up hardness HB90 sand box more than one level to increase surface roughness, make the quality of the other products stable.
3.Shock part of it with a buffer spring, effectively reduce the impact of machine-to-base.
4.The machine adopt cylinder, crank, connecting rod, synchronizing shaft achieve molding synchronously
5.Control part, all pneumatic components used to achieve the overall functionality, simple operation, easy maintenance.
6.It is easy to operate, visual sand, the operational procedures can be humane and effective to increase productivity.
7.Technical parameter:
Name |
Z143WA |
Z145WA |
Z145WB |
Foundry flask size (mm) |
500*400*200 |
500*450*200 |
550*450*200 |
Worktable (mm) |
560*420 |
600*550 |
700*550 |
Jolting load(kgf) |
200 |
300 |
300 |
Compressive stress (kgf) |
4200 |
6800 |
6800 |
Compress process(mm) |
200 |
160 |
160 |
Moulding process(mm) |
160 |
200 |
200 |
Productivity(case/h) |
40-60 |
40-60 |
40-60 |
Jolting cylinder diameter(Φmm) |
|
150 |
150 |
Consumption of free air(m³/case) |
0.25 |
0.4 |
0.4 |
Outline dimention L*W*H (mm) |
|
1300*800*1700 |
1200*800*1680 |
Z146W/Z148W Microseism Jolt Squeeze Molding Machine For Foundry
1.The machine using the fuselage box structure basket to improve the body of the steel.
2.It adopt microseism squeeze molding technics used to significantly increase the pressure and the strength to make up hardness HB85 sand box more than one level to increase surface roughness, make the quality of the other products stable.
3.Shock part of it with a buffer spring, effectively reduce the impact of machine-to-base.
4.The machine adopt cylinder, crank, connecting rod, synchronizing shaft achieve molding synchronously.
5.Control part, all pneumatic components used to achieve the overall functionality, simple operation, easy maintenance.
6.It is easy to operate, visual sand, the operational procedures can be humane and effective to increase productivity.
7.Technical parameter:
Item |
Z146W |
Z148WB |
Foundry flask size (mm) |
600*500*250 |
800*700*400 |
Worktable dimension(mm) |
700*550 |
900*700 |
Jolting load(kgf) |
400 |
700 |
Compressive stress(kgf) |
8300 |
17000 |
Compress process(mm) |
150 |
200 |
Moulding process(mm) |
220 |
250 |
Productivity(case/h) |
40-60 |
40-60 |
Jolting cylinder diameter(Φmm,) |
150 |
620 |
Outline dimention L*W*H(mm) |
1100*850*1800 |
1760*1180*2280 |
Our Service
squeeze molding machine
1.Reply you in the 24h
2.Reply you in English
3.Design according to technical requirement
4.Special discount and protection of sales are provided to distributor
5.We could do the field test to show the machine operation and work effect
6.We are manufacture, we could promise the quality and price
Company Information
Qingdao Rovan Machinery Co., Ltd
1.Established in 2001the factory is located in Qingdao, China.
2.Mainly manufacture shot blasting machine, dust collector, microseism squeeze molding machine/sand molding machine, core shooter machine, resin sand production line, clay sand production line, etc.
3. All products has ISO9001 and CE certification,
4. OEM also could provide for you.
Welcome to our factory for machine discussion and cooperation.
squeeze casting machine molding machine
FAQ
please confirm the flask size before choose machine type
