2.Main technical parameter
1.manual decoiler:manual expanding,passive uncoiler
Inner Diameter. Φ460-520mm
Outer Diameter. Φ1400mm
2.weight capacity of decoiler:10T
3.machine stand: welded I shape steel
4.type of forming machine:wallboard type with chain transmission
5.diameter of shaft:90mm
6.material of shaft:high-grade 45# steel
7.chain:20A
8.motor power of forming machine:11KW*2
9.forming speed:10-15m/min
10.roll station:24 stations
11.material of roller: high-grade 45# steel
12.surface of roller coated with chrome 0.05mm thickness
13.motor of hydraulic station:3KW
14.hydraulic oil pump:bear pump CB-E314
15.type of cutting:hydraulic cutting
16.material of cutting blade:Cr12
17.heat treatment of cutting blade:HRC58°-60°
18.thickness of steel coil:0.6-1.5mm
19.tolerance of length:10±2mm
20.computer operating board adopts Touch screen
21.Voltage: 380V 3 phase 50HZ or at buyer's requirement
3.Technical process:
Manual decoiler→ feed with guide→ roll forming→ cutting with fixed length→ output with table
Equipment maintenance
maintenance of roof panel roll forming machine is quite easy. We recommend that you regularly feed lubricant to the machine gear, chain and moving parts to reduce friction and avoid rusting. Make sure the power lines are properly connected before starting the machine, and at regular intervals, change the gear oil and hydraulic oil.
Our enterprise, Cangzhou Dixin Roll Forming Machine Co., Ltd, as the professional and leading manufacturer, can manufacture, design, installation and debug various roll forming machines and metal processing sheet equipments, which produce metal roof wall panel, glazed roof tile, CZ steel purlin, floor decking, roof ridge cap, sandwich panel, roof truss, shutter panel, shutter slat, door frame, guardrail, and metal sheet uncoiler, bending, slitting, cutting, flattening, punching, crimping.
Backed by reasonable design, precision machining and selected material, both our standard and customized machines are characterized by long life span, precise forming and easy operation. With our customers' trust, our machines have been sent to America, Australia, Russia, India, Sri Lanka, Nigeria, Pakistan, Uzbekistan, Mozambique, Angola, Turkey, Brazil, etc. We can satisfy the different needs of different markets.
Warmly welcome to China to visit our factory and select the machines you need. Our address,Fuzhuang Industrial Development Zone, Botou City, Hebei Province, China.
Any questions, we will reply to you promptly.
WARMLY WELCOME TO OUR NEW FACTORY!

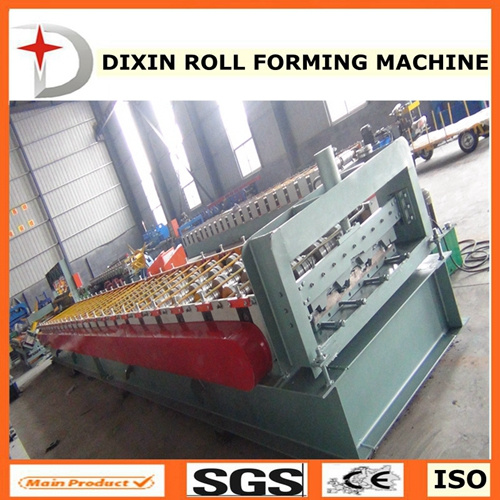

| Model number | DX Tile Flooring Manufacturing Forming Machine |
| Rolled material | 0.3-0.8mm thickness, aluminium sheet, galvanized sheet, colored steel sheet and various steel plates |
| Effective width | 720mm |
| Feeding width | 1000mm |
| Forming steps | 13 |
| Roller | 45# forged steel, hard chrome plating within 0.05mm |
| Diameter of shaft | 80mm |
| Main frame |
300H steel |
Main motor power | 11 kw |
| Pump power | 3 kw |
| Medium plate thickness |
14mm |
Sprocket chain | 1 inch |
| Drive type | by chain |
| Cutting Blade | Cr12, heat treatment 60-62°C |
| Frequency Converter | It has the advantage of slowing down before cutting, to ensure the length accuracy (±1mm, far better than industrial standard ±3mm). |
