| Price: | US $ 0.5-0.7/Piece |
|---|---|
| Trade Terms: | FOB,CIF,DAT |
| Min Order: | 500/Piece |
| Pay Type: | L/C,T/T,Paypal,Money Gram,Western Union |

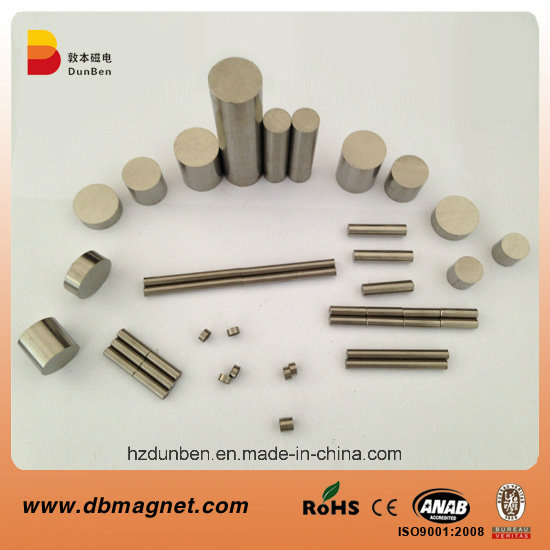

Alnico guitar pickup magnet
Alnico pickup magnet is hard and brittle. Machining or drilling cannot therefore be accomplished by ordinary methods. Holes are usually cored in at the foundry, and magnets are cast close to final size and then finish machined to closer tolerances.

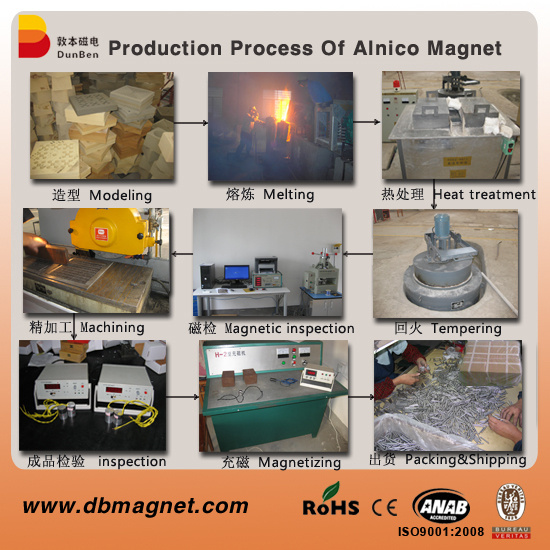

Manufacturing Methods
Alnico magnets are manufactured through either casting or sintering processes.
Cast magnets are manufactured by pouring a molten metal alloy into a mold and then further processing it through various heat-treat cycles.
Sintered magnets are manufactured by compacting fine Alnico powder in a press, and then sintering the compacted powder into a solid magnet.
Surface Treatments
The corrosion resistance of Alnico is considered excellent , and no surface treatments are required. However, Alnico magnets are easily plated for cosmetic reasons if required.
AlNiCo Magnet Characteristics
Grade | Br | Hc | (BH)max | Curie temp | Work temp |
| mT GS | ka/m OE | kj/m3 MGOe | |||
| LN10 | 600/6000 | 40/500 | 10.00/1.20 | 810 | 450 |
| LNG12 | 700/7000 | 44/550 | 12.00/1.50 | 810 | 450 |
| LNG13 | 680/6800 | 48/600 | 13.00/1.63 | 810 | 450 |
| LNG18 | 900/9000 | 48/600 | 1800/2.25 | 850 | 450 |
| LNG37 | 1200/12000 | 48/600 | 37.00/4.63 | 860 | 525 |
| LNG40 | 1250/12500 | 48/600 | 40.00/5.00 | 860 | 525 |
| LNG44 | 1250/12500 | 52/650 | 44.00/5.50 | 860 | 525 |
| LNG52 | 1300/13000 | 56/700 | 52.00/6.5 | 860 | 525 |
| LNG60 | 1330/13300 | 60/750 | 60.00/7.5 | 860 | 525 |
| LNGT18 | 580/5800 | 90/1130 | 18.00/2.25 | 860 | 550 |
| LNGT30 | 1100/11000 | 56/700 | 30.00/3.75 | 860 | 550 |
| LNGT32 | 800/8000 | 100/1250 | 32.00/4.00 | 860 | 550 |
| LNGT38 | 800/8000 | 110/1380 | 38.00/4.75 | 860 | 550 |
| LNGT44 | 850/8500 | 120/1500 | 40.00/5.5 | 860 | 550 |
| LNGT48 | 900/9000 | 120/1500 | 48.00/6.00 | 860 | 550 |

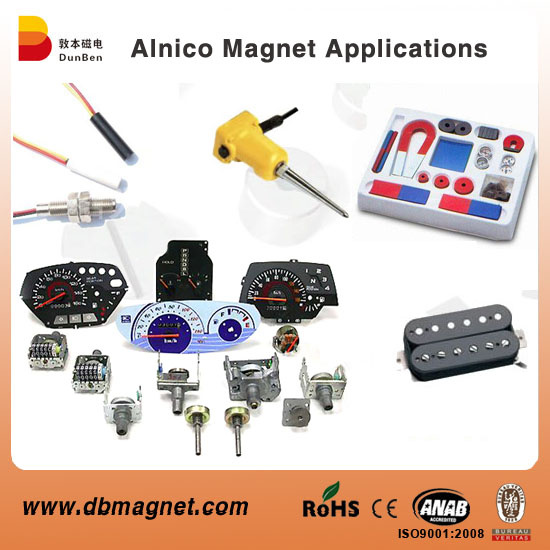

Alnico Magnet appliaction
Alnico Magnet is widely used for instruments, autombile, teaching and electronics

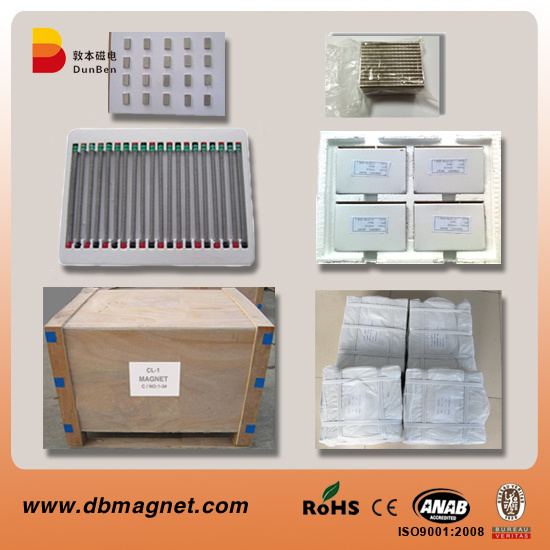

We will provide standard export package which is ok for sea or air shipment
| Prod Model: | LNG44 |
|---|---|
| Markets: | North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe |
| Size: | by Drawing |
| Tolerance: | +/-0.05mm |
| Magnetism Dircetion: | Thickness |
| MOQ: | 500PCS |
| Shape: | Bar |
| Application: | Motor Magnet |
| Coating: | Nickel |
| Grade: | FLNG28 |
