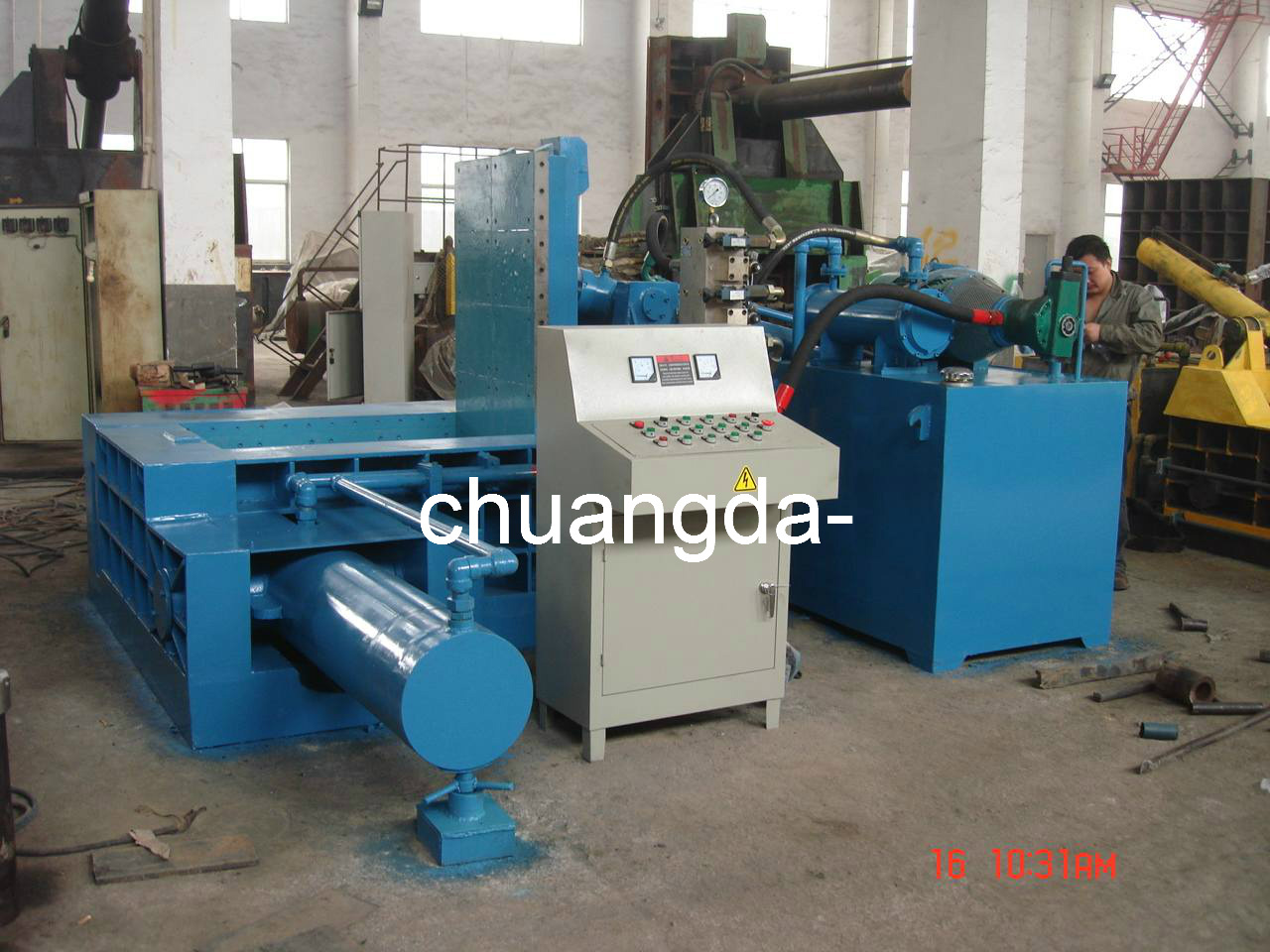

Automatical Hydraulic Scrap Metal Compressor Baler (YD1600)

Automatical Hydraulic Scrap Metal Compressor Baler (YD1600)
Price: US $ 5000-8000/Piece
Trade Terms: FOB
Min Order: 1/Piece
Pay Type: T/T
Hydraulic waste metal baler
1. Can press scrap thickness under 3mm
2. Turn over bale
3. PLC control

Our machine has fast technolegy, which run faster than normal balers.

1. Product brief introduction:

This hydraulic waste metal baler can cold compresses the light thin materials of dismounted automobile shells,
Waste bucket, waste copper and aluminum into rectangle lumps. The package is discharged from the front and secondary compression is applied. The operation efficiency is high and lump lengths are identical and uniform. The hydraulic system applies an integrated valve block and the product is stable and reliable in technical performance.

2. Specification:
ModelNominal pressure (ton)Material box size
(mm)
Baler size   (mm)Production(kgs/h)Bale discharging modeMotor(KW)Machine weight (ton)
YD-630A631000*600*500200*200500-750Turn over114.5
YD-10001001000*700*500250*250
220*220
200*200
750-1000Turn over115.5
YD-1000A1001100*500*500200*200750-1000Front bale115
YD-1300B1301200*700*550300*300
250*250
1000-1800Turn over156
YD-1300C1301200*800*550300*300
250*250
1500-2000Turn over156.5
YD-13501351400*600*600600*2501500-2000Front bale18.57
YD-16001601200*800*550300*3001500-2000Turn over18.57
YD-1600A1601600*800*800350*3501750-2250Turn over2212
YD-20002001600*1200*800350*4002000-2500Turn over
side push
3018
YD-25002502000*1200*1000450*4502250-3500Turn over
Side push
3020
YD31503152000*1400*1200450*5003750-4500Side push3732
YD40004002000*1600*1200500*5004500-6250Side push4540
YD-4000A4002500*1600*1200600*5007500-10000Side push4550

Prod Model: YD1600
Markets: North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe
Model No.: Yd1600
Nominal Pressure: 1600kn
Material Box Size: 1200*800*550
Baler Size: 300*300
Production: 1500-2000
Operation: Manual or Semiautomatic
Forging Forming Method: Mold Forging
Jiangyin Chuangda Machinery Industry Co., Ltd. is located in Zhouzhuang Town, Jiangyin City, Jiangsu Province. Our factory is specialized in producing Hydraulic balers, briquetting presses, Alligators, as well as firefighting equipment and machinery, etc.
Most of our machines are used in recycling process in recycling companies and steel factories, and they use our machines to help recycle and compress waste metal & non-metal materials to save the space for delivery and store, and also help reuse the waste materials.

We have 150 employees and 17 engineers and technicians, and our factory also cooperates with experts with rich experience and innovative technology, guaranteeing the good quality of our presses and improvement in R&D.

We sincerely welcome friends from recycling, metallurgy & other fields to visit our factory and cooperate with us. We have exported equipment to East Europe, South Africa, America, Asia, the Middle East, and many other worldwide countries and regions. We have pleasant cooperation with all our customers.
