Autojetdp-255A/370A Series Automatic Self-Priming Deep Well Pump
| Price: |
Negotiable/Piece |
| Trade Terms: |
FOB,CFR,CIF |
| Min Order: |
100/Piece |
| Pay Type: |
L/C,T/T,D/P |
AUTOJETDP-255A/370A Series Automatic Self-priming Deep Well PumpAUTOJETDP series jet pump consists of two pumps connected in series, one is ejector pump and the other is centrifugal pump.

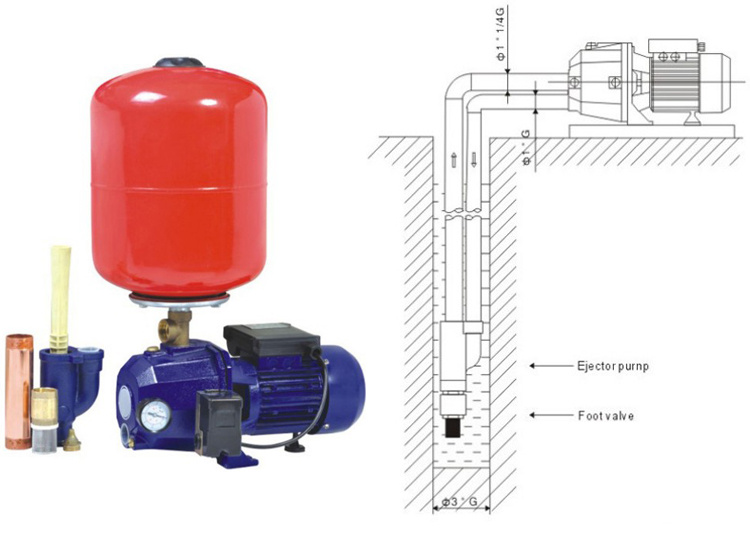

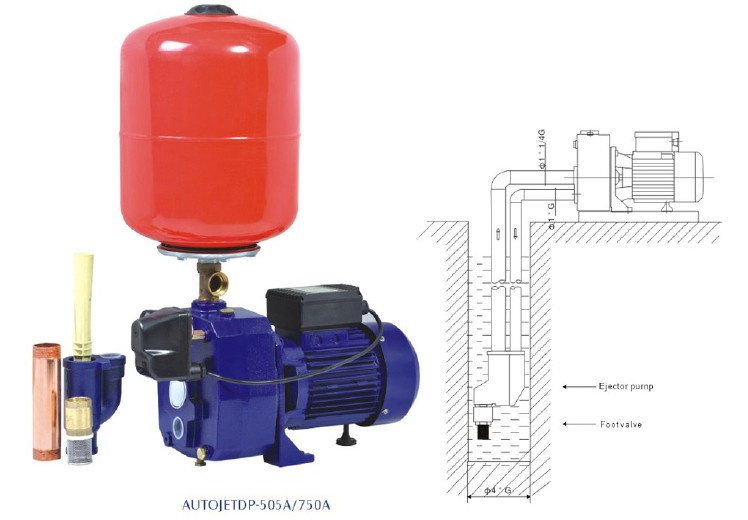

To ensure adequate counter-pressure, it is always better to install a foot valve with a fliter on the suction end. These pumps should be installed in a covered area, protected against the weather.
FEATURES1. Reliable and Durable
2. High efficiency, Low power consumption
3. Economical and easy-operationOUR ADVANTAGES1. Matured channels for purchasing high quality raw material
2. Advanced equipments to manufacture and process the pump parts
3. Rigorious check for pump castings, stators before any piece of product leave the factory
4. Multiple and Perfect assembling lines
5. Export-standard packing skillCONSTRUCTPump
Pump body: Cast Iron
Impeller: Brass/Techno-polymer(P. P. O)
Mechanical seal: Carbon/ceramic/Stainless Steel
Motor
Single Phase
Motor Housing: Aluminum (closed, externally ventilated)
Shaft: Carbon Steel/ Stainless steel Thermal protector (if required)
Insulation class: B and F
Protection class: IP44 or IP54
Cooling: External Ventilation
Power: 220-240V 50Hz( single phase 230V, 240V, 127V, 110, 115V/60Hz are available)OPERATING CONDITIONLiquid temperature up to 60
Ambient temper up to 40
Total suction lift to 21m

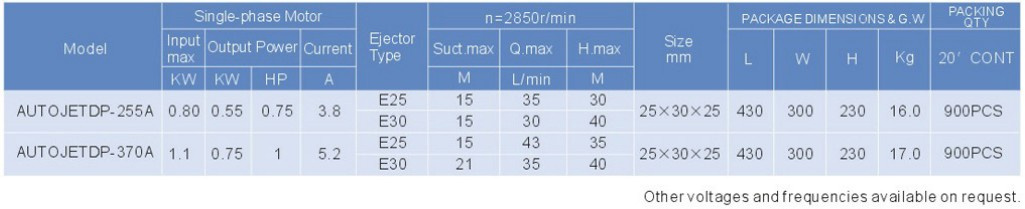

Continuous dutyTECHNICAL DATA(220-240V/50Hz)
| Prod Model: |
AUTOJETDP-255A |
| Markets: |
North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe |
| Motor Housing: |
Aluminum |
| Impeller: |
Brass/Techno-Polymer(P.P.O) |
| Mechanical Seal: |
Stainless Steel/Carbon-Ceramic |
| Power: |
Electric |
| Structure: |
Single-stage Pump |
| Theory: |
Jet Pump |
| Application: |
Clarified Water Pump |
| Material: |
Cast Iron |
| Type: |
Automatic Deep Well Pumps |
Fujian Dacheng Electric Group Co., Ltd. is located in Fuan city, Fujian province. Which founded in 1999, have 330 staffs.
Having 8 highly developed automatic assembling lines, experienced and professional engineering team, our monthly capacity of pump is 80, 000 PCS, motor and generator 10, 000PCS. We are a professional manufacturer dedicated to design and manufacture best quality, reliability micro-pump, motors and generators, to exceed the expectation from customers. Company pay attention to product quality, research and development, own provincial technical center.
Passing ISO9001: 2008 quality management system certification, our products obtained certificates from CE, SGS, RoHS, BV etc., also won 13 national patent, Y, YC, ST, STC series products have been gained quality license of export products. Exporting to Europe, South America, Middle East, Southeast Asia more than 30 countries and regions.
