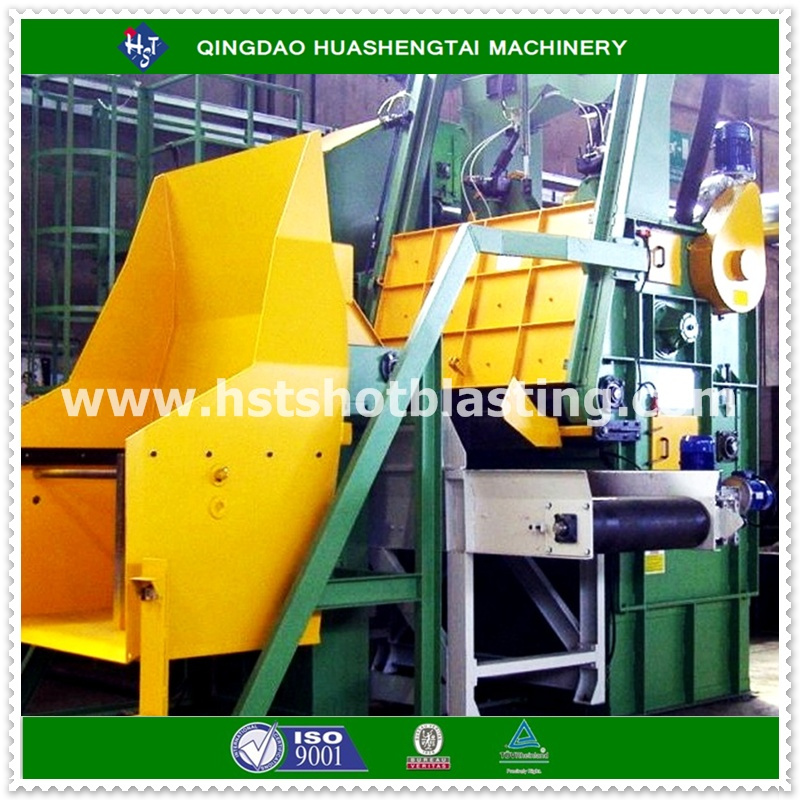

Auto Loading Belt Type Shotblasting Deflashing Equipment

Auto Loading Belt Type Shotblasting Deflashing Equipment
Price: US $ 7900/Set
Trade Terms: FOB,CFR,CIF
Min Order: 1/Set
Pay Type: T/T
HQ32 series rubber belt type shot blasting machine
1.CE,BV
2.Environmentally friendly
3.High efficiency and large productivity

This series is used for surface cleaning, rust remove, and surface intensification of each kind of
middle and small scale casting, forging and so on.
It is suitable for different production scale, can be standalone use and many units can also be used in
conjunction continuous conveyor components, composing the production of clean-up lines.
Q32 series abrate cleaning up machine has the advantages of advanced design,reasonable structure,
 small energy consumption and high efficiency.

· Application:
It provides a cost-effective solution for batch cleaning, deburring, descaling, decoring, deflashing and
peening a wide variety of products.
· Ferrous and non-ferrous castings
· Heat treated forgings
· Small Automotive parts
· Die castings and much more
· Lower value parts where part on part impingement is not an issue
· When production requires dictate batch processing
· Small to medium size castings, fabrications and heat-treated parts
· Sand removal or part cleaning

· Equipment:
Track Loading device (Optional), blast wheel, abrasive recycle system, separator, dust collector, control system.


Machine details:
· Our belt shot blast machines are designed to process a variety of parts that can be tumbled.
· The endless conveyor belt and lateral round place creates a trough in which parts are treated.
· The number and power of the turbines are chosen according to the requirement production rate.
· Optional PLC control system, stable quality and easy to get support from local.
· Component key parts adopt world famous brand, such as Siemens, Omron, Schneider, Mitsubishi.
· No-pit, easy for install and move and save cost.
· A high volume of parts can be processed in a small working area.
· All shot blasting machines are totally integrated with abrasive reclaim systems, separator and dust collector.
· 20 years experienced engineers, customized service available.
· Superior design, quality and rugged construction make our barrel machines more reliable and easier to maintain.
· After-sale service support will be provided within 24hours.


HQ32 series belt type shot blasting machine technical parameters:
ModelHQ326HQ3210CHQ3210HQ3220
Productivity (t/h)0.6-1.21.5-2.53-54-6
Conveyor materialRubberRubberRubberRubber
Abrasive first
Loading quantity
(kg)
200600800900
Maximum weight
Of Single
Workpiece(kg)
15303035
Diameter of plate(mm)650100010001000
Effective volume
(m3)
0.150.30.40.5
Abrasive flow rate (kg/min)100250250200*2
Ventilation capacity (m3/h)2200500060007000
Overall dimension (mm)3700*1650*58003970*2600*47703650*2950*58503650*3250*4770
Total power
(kw)
12.624.332.637.6




Q15GN/Q28GN Series Tumble Belt Type Shot blasting Machine is used for removing the sand and
 the oxidation surface of the workpieces such as the casting, forging as well as the welding parts.
Owing to the perfect protective measures, good shot blasting and reasonable structure of the
 circulatory system, the machine can achieve satisfactory results when it is used to clean up the
hard-to-clean workpieces.
This kind of machine is used for clean up the workpieces which are easy to roll and fall, and also be
used to clean up the non-fragile parts as well as the non-core castings.
The aluminum workpieces and some nonferrous metal workpieces can also be cleaned up by this
series of shot blasting machine.

Automatic feeding type track shot blasting cleaning machine is caterpillar shot blast cleaning
equipment, has the following features:
- This machine is especially suitable for integrated into the automatic production line
- Using the cantilever centrifugal shot blasting machine, which is with large blasting capacity and high
mass ejection speed, in order to improve the cleaning efficiency, and get a satisfactory cleaning quality.
- All shot blasting machine drawings are computer aided designed (CAD), so that the selection of
 shot blasting machine and the layout is more reasonable, the utilization rate of the projectile and the
 labor productivity are improved, the cleaning efficiency been ensured, and the wear abrasion of
chamber body protection plate is reduced.
- After the Artifacts cleaned, the caterpillar inverse to realize discharge automatically
- Add the feeding appliance, so the worker labor intensity has been reduced.
- At the same time, the user can choose after unloading work pieces transportation appliance, using
 for automatic production line collecting the cleaning finished work piece together.
- The chamber use wear-resisting steel protection, the popular way of chamber body protection.

H15GN 28GN series metal belt type shot blasting machine technical parameters:
ModelH15GNH28GN
Size of the roller (mm)1090*12451245*1778
Diameter of plate (mm)10921250
Effective volume (m3)0.430.79
Single workpiece
maximum weight (kg)
227363
Loading weight12002500
Abrasive flow rate (kg/min)3602*260
Abrator power (kw)2230

This type of shot blasting machine is the alternative products of rotary drum shot blasting machine,
 it is a kind of machine with the advantage as good cleaning effect, compact structure, low noise and
can match with other equipment, has the following features:
- This machine uses Q034 cantilever type centrifugal blast apparatus, has the feature of long service
life, simple structure, low failure rate, etc.
- The winnowing separator, which has good separation effect and higher productivity, has a positive
effect to improve the blade service life.
- Use cloth bag filter, so the dust emission concentration is lower than the national standard, and the
worker's labor environment is improved.
- After the work pieces cleaning finished, the caterpillar can inverse to realize automatic discharged.
-  Use the feeding and discharging mechanism, so the labor intensity of workers are further reduced.


Our competence and services
- Professional technical team support to provide suitable proposal according to customer's requirements
- Skilled workers and advanced production equipment to ensure high quality products
- Training programs for operating and maintenance
- Installation and commissioning of new machine
- Timely problem solving support with direct line by 24/7
- Spare parts supply with lowest price for all of supplies equipment

Prod Model: Q32 series/15GN/28GN
Markets: North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe
Color: as Specified Requirement
Auto Loading Device: Optional
Application: Metal Surface Descaling Cleaning Polishing
Certification: BV
Qingdao Huashenghai Shot Blast Machinery Co., Ltd, locating in the west coast of the beautiful coastal city Qingdao, is an industrialization entity with scientific research, development, production and operating integration. We have engaged in casting machinery for more than 20 years, thereby gain profound cultural background and the technical essence, great research and development ability, advanced production technology, perfect detection means, scientific management system. As the professional manufacturer of casting machinery industry, our technology, quality and automation level is ranking in the advanced level in the same domestic industry.

Our main products are HQ37 Series Hook Type Shot Blasting Machine, HQT 37 Hook Passing Through Type Shot Blasting Machine, Q32 Series Robber Track Crawler Type Shot Blasting Machine, GN Series Metal Track Type Shot Blasting Machine (8GN\12GN\15GN \ 28GN), HQ Series hanger chain Type Shot Blasting Machine (HQ38 \ HQ48 \ HQ58), HQ Series Cylinder Type Shot Blasting Machine, HQ Series Rotary Table Type Shot Blasting Machine(HQ35 \ HQ36 \ HQ76), HQG Series Steel Pipe Internal and External Wall Shot Blasting Machine, HQ69 Series Roller Pass Through Type Shot Blasting Machine, HQH69 Series H-beam Shot Blasting Machine, HX Wire Rod Shot Blasting Machine, HST Series Portable Shot Blasting Machine, Shot Blasting Machine Wear-resisting spare parts. All our products are computer aided designed (CAD); It is the best choice for the casting, metallurgy, automobile, shipbuilding, construction, mining machinery and engineering machinery and other fields with the best cost performance. We also can design and manufacture all kinds of large sized non-standardized casting machinery and undertake turnkey project including designing - manufacturing - debugging - training - services. Our Wear-resisting parts are the most complete varieties, the highest technical content, and the largest production and sales volume in the current domestic industry. Our company, which is committed to the promotion and application of new materials and technology, is the excellent supplier for many national famous casting machinery and distribution companies.

We committed to keep the leading position in the industry, implement the positive "Famous Brand" strategy, the "Total Quality Management", and the ISO9001-2000 international quality system certification. We committed to the promotion and applications of new materials and new technology, constantly strive for product excellence and perfect service. Our company, taking the tenet of "integrity, pragmatic, innovation, win-win", and the ides of "market-oriented, excellence pursuit, people-oriented, society serving", will serve the different industries with the high quality and efficient production services, and offer your business with the ever firm supports!
