ASTM Ruhrpumpen Pump Bowls
| Price: |
US $ 10/Piece |
| Trade Terms: |
FOB,CIF |
| Min Order: |
1/Piece |
| Pay Type: |
T/T,Money Gram |
Now ANSI ITT Goulds 3196 and Durco Mark 3 is our main products ,if you need I will send to you our Model and price list.
Contact:
Sophie Lian:TEl:86-533-2833533 FAX:86-533-3583950
Ruhr Pump parts:
Capacity:
The maximum production capacity could be 10,000 tons per year, with a single piece up to 100 tons, the smallest part only a few grams by lost wax casting.
The products has been exported to Germany, USA, Canada, Sweden, Israel, Hungary, Mexico.
Certificate:ISO9001:2008 standard,Customs"A"Certificate
Specification:

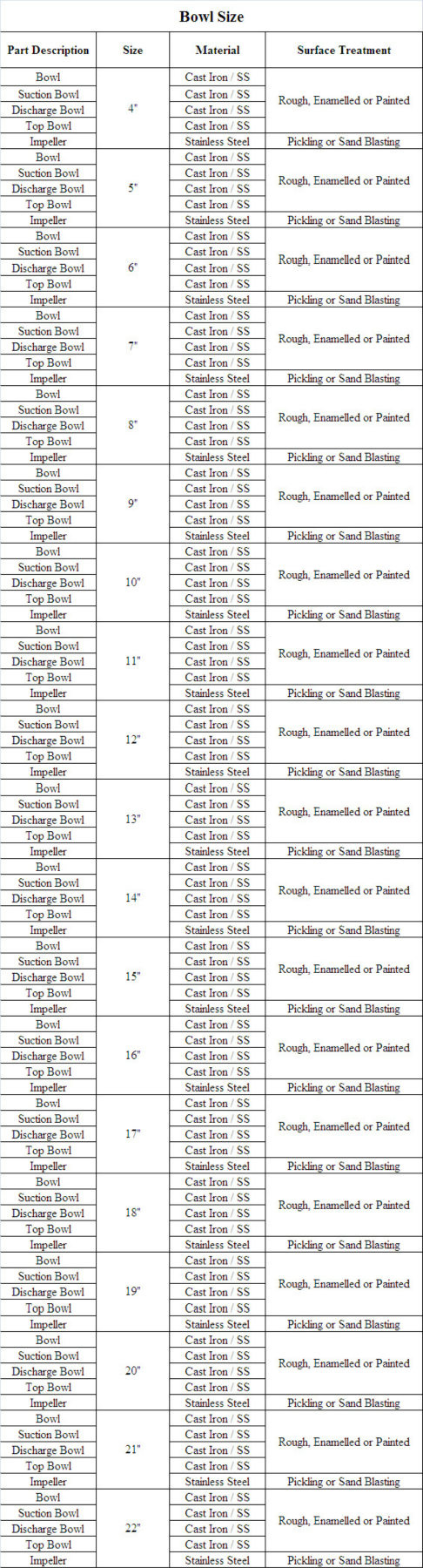

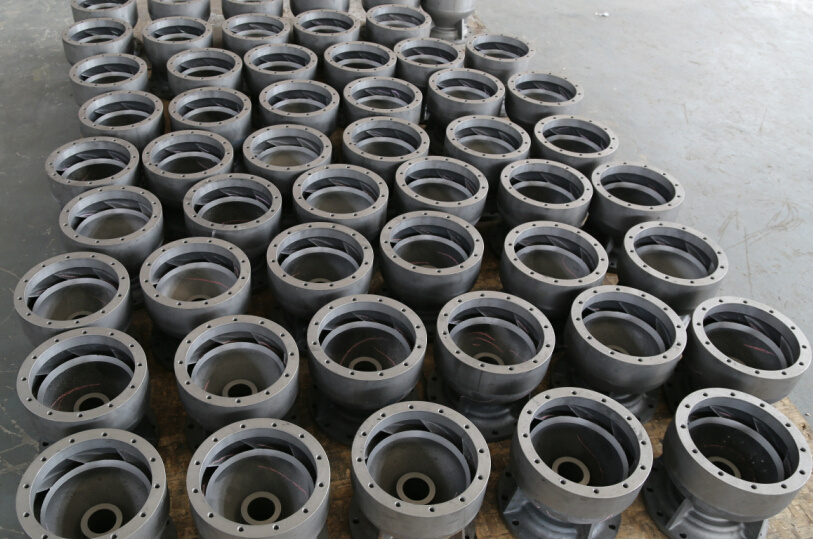

1.Bowl ,We also called diffuser,the bowl have many type:suction bowl,discharge bowl,top bowl.we have supply bowl for Israel (used for power generation),and USA which used for water Agriculture,and chile customer which used for industry,Indonesia customer which used for Submersible pump or vertical pump,with special material:ASTMA436,CA6NM,cast iron,High chrome...by sand casting(green sand casting,resin sand casting ),precision casting,lost wax casting,investment casting and CNC,CAM machining.
This parts we can supply quality test:Hydro test,performance test,PT,PEand psi 1500Mpa.
2.Material:
ASTMA436,CA6NM,stainless steel(316.304),SG iron,CD4,Alloy20 carbon steel, low alloy steel, iron, bronze,Hartz alloy etc.3.MOQ:1piece
4.Package:Small part, single packed then put into paper carton then to crate.
(1)Generally use poly wooden crates for package.
Minimum poly wooden board thickness:
Steel band: 19×0.5mm or 15×0.5mm
Common crate size is less than 1200X1000X1000mm
(2For the very big part, use welding steel crate. The size and steel thickness is according to the product dimension and weight.
(3)Large size and large quantity part, put into container directly.
(4)We also consider customers' special needs for packing.
5.We also make parts by your drawing or samples.
6.Production Control:
Heat treatment as required: anneal normalizing, quench + temper or solution treatment
Surface protection can be: pickling and passivation, oil anti-rust protection, anti-rust protection without oil, prime paint, epoxy powder coating, galvanization, hot-dip
Unit weight: 5g to 50kg
Casting tolerance per ISO 8062 CT7-CT10
Appearance inspection per ISO 11971 or MSS-SP-55
EN 10204 3.1B Mill cert and dimension report will be provided
Inquiry information: material grade, unit weight, quantity and drawings (CAD/PDF/IGS/STEP), or sample
Experienced inspection team of casting quality conducts the entire quality control procedure from raw material to finished products
All inspectors are well trained and have rich product knowledge and inspection experiences- Raw material control
- Chemistry spectrum analysis
- Mechanical property
- Metallographic analysis
- Ultrasonic testing
- Magnetic testing
- Radiographic testing
- Dimension inspection
- Visual inspection
- Penetrant testing
- Leak testing
- Hardness test
- Micro-structure tester after heat treatment
7.MOQ:1 piece
8.Payment:TT,30%deposit,others need to paid before delivery.
9.Delivery time:45days common
10.Seaport:Qingdao /Airport:Qingdao or Beijing
| Prod Model: |
Ruhrpumpen Pump Bowls |
| Markets: |
North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe |
| ASTM: |
Ruhr |
| Casting Method: |
Thermal Gravity Casting |
| Material: |
ASTM, CD4, Ca6nm |
| Surface Preparation: |
According to Customers Require |
| Surface Roughness: |
According to Customers Require |
| Machining Tolerance: |
According to Customers Require |
| Standard: |
According to Customers Require |
Our foundry is specilized in producing the pump components such as casing, impeller, bowls, shaft and other pump spare parts meanwhile we provide customers' designed pumping solutions for any pumping requirment.
We also specialize in manufacturing the highest quality castings, all kinds of machinery parts with many material such as stainless steel, carbon steel, alloy steel, iron etc by sand casting, investment casting and lost foam process according to customers' drawings or samples.

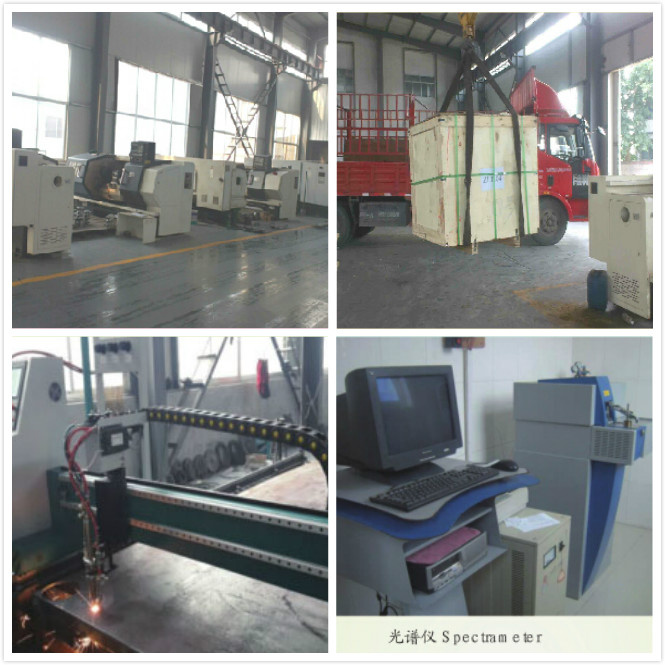

We can make the parts final machining by our own machining shop with many advanced equipments like CNC lathe, CNC cutting machinery, miller and others controlled by experienced workers. We execuit the strict inspection by many kinds of accurate inspection tools.
We have our own trading company--Zlt International Trade Co., Ltd with the principle of high quality, perfect service and sincere integrity, on this condition, we have got very good fame from our customers who come from Germany, USA, Canada, Sweden, Israel, Hungary, Mexico, Guyana, etc
Welcome to visit our foundry in Zibo city, Shandong Province, China!
