ASTM A668 E Forging Shaft for Upper Trunnion
| Price: |
US $ 40-80000/Piece |
| Trade Terms: |
FOB,CFR,CIF |
| Min Order: |
1/Piece |
| Pay Type: |
L/C,T/T |
ASTM A668E forging shaft for upper trunnion
Products Techanical SpecificationThis type of trunnion is Nangong's usual forging products which can fulfill the reuqirement as follows. Of course, more details can be well discussed after email or call us. Company IntroductionJaingyin Nangong Forging Co., Ltd is a factory with more than 20 years experiences in forging industry which can provide all kinds of forgings from 5kg to 60tons. Our products ranges from wind turbine shaft, step-down shaft, rotor, gear, flange, hub, plate, valve block, bar, disc, ring, sleeve, pipe etc.
All of our products are widely used in many areas as follows: wind power, hydropower, thermal power, metallurgy, mining, petrochemical, ship building, energy, transportation, pressure vessel etc.

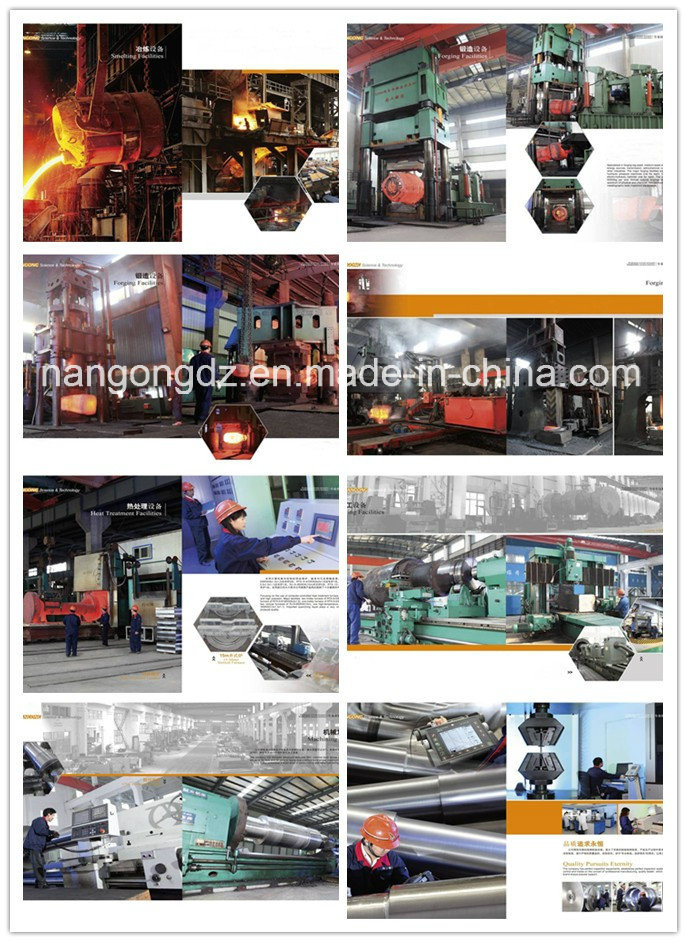

Our production line comprise smelting, forging, rough machining, heat treatment and final machining.
The major forging facilities including hydraulic pressure machines(2000T, 4000T and 6000T), electro-hydraulic hammer(3T, 5T)and air hammer(560kg, 750kg,1T)
We have acquired ISO9001:2000, ISO14000, ISO18000, and has been authorized by world class ship classification society such as BV, LR and PED certificate issued by European Union.
| Prod Model: |
shaft for hydraulic turbine |
| Markets: |
North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe |
| Diameter: |
50-4000mm |
| Length: |
80-13000mm |
| Machining Degree: |
Rough Maching, Semi Finish or Final Machining |
| Geometric Tolerance: |
According to Customer's Drawing |
| Surface Roughness: |
12.5, 6.3, 3.2, 1.6, 0.8 |
| Ulstrasonic Test Level: |
A388 |
| Magnetic Particle Test: |
A275 |
| Mechanical Testing Standard: |
A370 |
| Certificate: |
En 10204-3 3.1 or 3.2 |
| Load: |
Drive Shaft |
| Stiffness & Flexibility: |
Stiffness / Rigid Axle |
| Axis Shape: |
Straight Shaft |
| Shaft Shape: |
Stepped Shaft |
| Material: |
A668 Class E |
Nangong Forging is a forging factory with more than 20 years experiences in this field which can provide all kinds of forgings from 5kg to 60tons. The products ranges from wind turbine shaft, step-down shaft, rotor, gear, flange, hub, plate, block, bar, disc, ring, sleeve, pipe, coil, wire, etc.
All of the products are widely used in many areas as follows: Wind power, hydropower, thermal power, metallurgy, mining, petrochemical, ship building, energy, transportation, pressure vessel etc.
The production line comprise smelting, forging, rough machining, heat treatment and final machining.
The major forging facilities including hydraulic pressure machines(2000T, 4000T and 6300T), electro-hydraulic hammer(3T, 5T), air hammer(560kg, 750kg, 1T), heat treatment furnaces and turning machines.
Nangong has acquired ISO9001: 2000, ISO14001: 2004, OHSAS18001: 2007, AD2000 W0, API Q1 and has been authorized by world class ship classification society such as BV, GL, CCS and PED certificate issued by European Union.
Nangong Forging are expecting to establish a long term business relationship with you.
