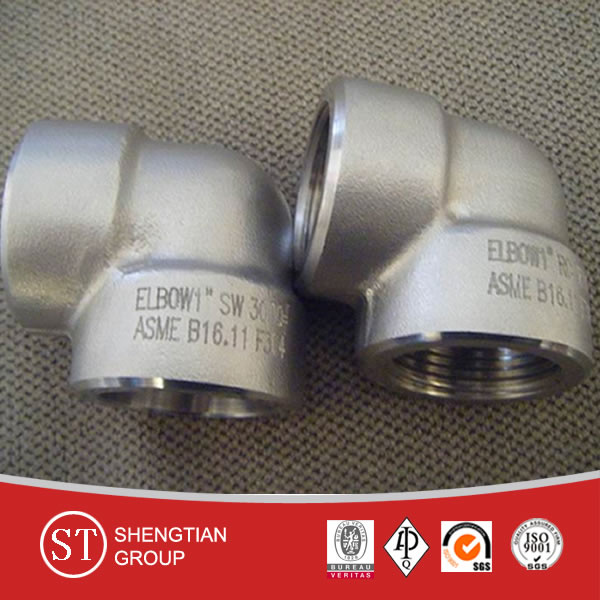

Forged Steel Pipe Fitting:
Socket Weld Forged Pipe Fittings, Threaded Forged Steel Pipe Fittings
1. Forged Fittings Type: Elbow, cross, street elbow, tee, coupling, half coupling, cap, plug, bushing, union, outlet, sage nipple, bull plug, reducer insert, pipe nipple etc.
2. Connection: Socket Welded, Threaded
3. Size Range: 1/8" - 4"(6mm - 100mm)
4. Pressure Rating:
Threaded Forged Pipe Fittings: 2000LBS, 3000LBS, 6000LBS
Socket welding Wog 3000, 6000, 9000 LBS
5. Specifications:
1) Standard: ASME B 16.11, MSS-SP-79\ 83\ 95\97
2) Material: ASTM A105, ASTM A182(F304, F304L, F316, F316L, F304H, F316H, F317L, F321, F11, F22, F91).
3) Size of raw material: Dia. 19-85mm round bar.
6. Technology: Forged
7. Packing: Wooden cases or wooden pallet or as per customers requirement
8. Delivery Time: 25 days after order conformed
9. Payment: By T/T or L/C
10. Applications range: Petroleum, chemical, machinery, electric power, shipbuilding,
Papermaking, construction etc
Hebei shengtian pipe-fitting group Co., Ltd.
HEBEI SHENGTIAN PIPE-FITTING GROUP Co., Ltd
SOPHIE ZHOU
TEL: 0086-317-5298199 FAX: 0086-317-5295979
MOB: 0086-15532720082
Standard
| American Class150
| Brithish
| European
|
Dimention
| ANSI/ASME B16.3
ANSI/ASME B 16.14
ANSI/ASME B16.39
| KSB 1531
| EN10242
|
Threads
| ANSI/ASME B1.20.1
| BS 21
BS2779
| ISO 7-1
ISO228-1
|
Material
| ASTM A-197
| BS EN 1562
| EN1562
|
Zinc Coating
| ASTM A-153
| BS 143 & 1256
| EN 10242
|
Reinforcement
| Banded
| Banded
| Beaded
|
Hebei Shengtian Pipe-Fitting Group Co., Ltd. Was established in 1989. We are located in MengcunCounty in Hebei Province, covering an area of 100, 000 square meters, with a workshop of 25, 000 square meters and registered capital of $7, 500, 000. Our company has a strong staff team. There are over 360 employees, including over 30 professionals and technicians.
We are capable of manufacturing various pipe fittings. Our main products are elbows, tees, bends, reducers, caps, flanges and sockets. We have been in this line for about 20 years. Our products are exported to many countries and regions in Southeast Asia, the Middle East, Europe and America. Our products enjoy a good reputation in domestic and foreign markets. Every year, our company receives hundreds of foreign visitors and innumerable domestic visitors.
We have first-class inspection devices, perfect detecting means and well-trained specialists. And we stick to ISO9000: 2000 quality system and efficiently control procedure in production. We have confidence that we can supply the best quality products. We would like to take responsibility for any quality uncertainty. Even so, our price is competitive. Besides, we can provide the best service to you.
In order to avoid the policy of the anti-dumping duties imposed on pipe&fittings from the Europe, United States and other countries, We can re-export through other countries like Malaysia, etc, to circumvent the anti-dumping duties, which could make you to win more competitive price.
