ANSI Class 150 Flange

ANSI Class 150 Flange
Price: US $ 3-6/Piece
Trade Terms: FOB,CIF
Min Order: 1/Piece
Pay Type: L/C,T/T
Contact Supplier
Qingdao Hengyong Valves Industry Co., Ltd.
Showroom Product Company Profile

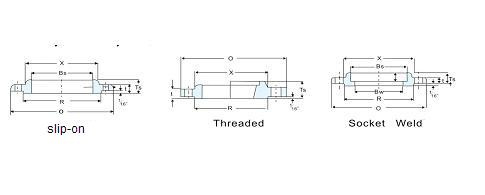

150Lbs, 300Lbs, ANSIB 16.5

Slip-on flange, threaded flange and socket weld flanges

Material: 304, 304L, 316, 316L

The price of the threaded flanges will be higher because of much more machine.
Nominal
Pipe size		 Outside
Dia. Of
Flange		 Thick
Of
Flange		 Dia.of
Raised
Face		 Dia.of
Hub at
Base		 LENGTH THRU BUB Minimum
Thread
Length
Welding
Neck		 Slip-on
Threaded
Socket		 Lap
Joint
O T R X Tw Ts TL
1/2 3/4 1 3.50
3.88
4.25		 0.44
0.50
0.56		 1.38
1.69
2.00		 1.19
1.50
1.94		 1.88
2.06
2.19		 0.62
0.62
0.69		 0.62
0.62
0.69		 0.62
0.62
0.69
1-1/4
1-1/2
2		 4.62
5.00
6.00		 0.62
0.69
0.75		 2.50
2.88
3.62		 2.31
2.56
3.06		 2.25
2.44
2.50		 0.81
0.88
1.00		 0.81
0.88
1.00		 0.81
0.88
1.00
2-1/2
3
3-1/2		 7.00
7.50
8.50		 0.88
0.94
0.94		 4.12
5.00
5.50		 3.56
4.25
4.48		 2.75
2.75
2.81		 1.12
1.19
1.25		 1.12
1.19
1.25		 1.12
1.19
1.25
4
5
6		 9.00
10.0
11.0		 0.94
0.94
1.00		 6.19
7.31
8.50		 5.31
6.44
7.56		 3.00
3.50
3.50		 1.31
1.44
1.56		 1.31
1.44
1.56		 1.31
1.44
1.56
8
10
12		 13.50
16.00
19.00		 1.12
1.19
1.25		 10.62
12.57
15.00		 9.69
12.00
14.38		 4.00
4.00
4.50		 1.75
1.94
2.19		 1.75
1.94
2.19		 1.75
1.94
2.19
14
16
18		 21.00
23.50
25.00		 1.38
1.44
1.56		 16.25
18.50
21.00		 15.75
18.00
19.88		 5.00
5.00
5.50		 2.25
2.50
2.69		 3.12
3.44
3.81		 2.25
2.50
2.69
20
24		 27.50
32.00		 1.69
1.88		 23.00
27.25		 22.00
26.12		 5.69
6.00		 2.88
3.25		 4.06
4.38		 2.88
3.25



MIN.DIA.OF BORE Dia of Hub at Bevel Radius of
Fillet		 Depth of
Socker
Welding
Neck. Socket		 Slip-on.
Socket		 Lap
Joint
Bw Bs BL A D
0.62
0.82
1.05		 0.88
1.09
1.36		 0.90
1.11
1.38		 0.84
1.05
1.32		 0.12
0.12
0.12		 0.38
0.44
0.50
1.38
1.61
2.07		 1.70
1.95
2.44		 1.72
1.97
2.46		 1.66
1.90
2.38		 0.19
0.25
0.31		 0.56
0.62
0.69
2.47
3.07
3.55		 2.94
3.57
4.07		 2.97
3.60
4.10		 2.88
3.50
4.00		 0.31
0.38
0.38		 0.75
0.81
0.88
4.03
5.05
6.07		 4.57
5.66
6.72		 4.60
5.69
6.75		 4.50
5.56
6.63		 0.44
0.44
0.50		 0.94
0.94
1.06
7.98
10.02
12.00		 8.72
10.88
12.88		 8.75
10.92
12.92		 8.63
10.75
12.75		 0.50
0.50
0.50		 1.25
1.31
1.50
To be specified by purchaser 14.14
16.16
18.18		 14.18
16.19
18.20		 14.00
16.00
18.00		 0.50
0.50
0.50		 1.62
1.75
1.94
20.20
24.25		 20.25
24.25		 20.00
24.00		 0.50
0.50		 2.13
2.50
CLASS 300
Nominal
Pipe size		 Outside
Dia. Of
Flange		 Thick
Of
Flange		 Dia.of
Raised
Face		 Dia.of
Hub at
Base		 LENGTH THRU BUB Minimum
Thread
Length
Welding
Neck		 Slip-on
Threaded
Socket		 Lap
Joint
O T R X Tw Ts TL
1/2
3/4
1		 3.75
4.62
4.88		 0.56
0.62
0.69		 1.38
1.69
2.00		 1.50
1.88
2.12		 0.93
1.14
1.41		 2.06
2.25
2.44		 0.88
1.00
1.06		 0.88
1.00
1.06
1-1/4
1-1/2
2		 5.25
6.12
6.50		 0.75
0.81
0.88		 2.60
2.88
3.62		 2.50
2.75
3.31		 1.75
1.99
2.50		 2.56
2.69
2.75		 1.06
1.19
1.31		 1.06
1.19
1.31
2-1/2
3
3-1/2
 		 7.50
8.25
9.00		 1.00
1.12
1.19		 4.12
5.00
5.50		 3.94
4.62
5.25		 3.00
3.63
4.13		 3.00
3.12
3.19		 1.50
1.69
1.75		 1.50
1.69
1.75
4
5
6		 10.00
11.00
12.50		 1.25
1.38
1.44		 6.19
7.31
8.50		 5.75
7.00
8.12		 4.63
5.69
6.75		 3.38
3.88
3.88		 1.88
2.00
2.06		 1.88
2.00
2.06
8
10
12		 15.00
17.50
20.50		 1.62
1.88
2.00		 10.62
12.75
15.00		 10.25
12.62
14.75		 8.75
10.88
12.94		 4.38
5.62
5.12		 2.44
2.62
2.88		 2.44
3.75
4.00
14
16
18		 23.00
25.50
28.00		 2.12
2.25
2.38		 16.25
18.50
21.00		 16.75
19.00
21.00		 14.19
16.19
18.19		 5.62
5.75
6.25		 3.00
3.25
3.50		 4.38
4.75
5.12
20
24		 30.00
36.00		 2.50
2.75		 23.00
27.25		 23.12
27.62		 20.19
24.19		 6.38
6.62		 3.75
4.19		 5.50
6.00

MIN.DIA.OF BORE Dia of Hub at Bevel Radius of
Fillet		 Depth of
Socker
Welding
Neck. Socket		 Slip-on.
Socket		 Lap
Joint
Bw Bs BL A D
0.62
0.62
0.69		 0.62
0.82
1.05		 0.88
1.09
1.36		 0.99
1.11
1.38		 0.84
1.05
1.32		 0.12
0.12
0.12
0.81
0.88
1.12		 1.38
1.61
2.07		 1.70
1.95
2.44		 1.72
1.97
2.46		 1.66
1.90
2.38		 0.19
0.25
0.31
1.25
1.25
1.44		 2.47
3.07
3.55		 2.94
3.57
4.07		 2.97
3.60
4.10		 2.88
3.50
4.00		 0.31
0.38
0.38
1.44
1.69
1.81		 4.03
5.05
6.07		 4.57
5.66
6.72		 4.60
5.69
6.75		 4.50
5.56
6.63		 0.44
0.44
0.50
2.00
2.19
2.38		 7.98
10.02
12.00		 8.72
10.88
12.88		 8.75
10.92
12.92		 8.63
10.75
12.75		 0.50
0.50
0.50
2.50
2.69
2.75		 To be specified by purchaser 14.14
16.16
18.18		 14.18
16.19
18.20		 14.00
16.00
18.00		 0.50
0.50
0.50
2.85
3.25		   20.20
24.25		 20.25
24.25		 20.00
24.00		 0.50
0.50
Prod Model: stainless steel flange
Markets: North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe
Manufacturing Way: Casting
Material: Stainless Steel
Type: Welding Flange
Standard: ANSI,DIN,JIS
Established in Qingdao, China in 1990, Qingdao Hengyong Valve Industrial has grown to become the Top manufacture of casted Stainless Steel Flanges and Stainless Steel Ball Valves in China. Now Hengyong Valve Industrial exported stainless steel flange and ball valve to 23 different countries.

Our Products Range include:

1. Stainless Steel Flanges: DIN/UNI/JIS/ASME/BS, Type include WN/BL/SO/PL/SW, size from 2" to 24".

2. Stainless Steel Valves: Manual or electric or pneumatic 1PC, 2PC, 3PC ball valves, globe valves, check valves, gate valves, Y strainers,

3. Stainless Steel Pipe Fittings: Quickly Coupling, Union, Camlocks and 150LBS fittings

4. Metal Castings from precision lost wax investment casting and Sand Casting process.

Our Production Capacity:

Flanges about 3000ton/annual, and Valves about 1000ton/annual.

In 2008, Qingdao Hengyong Valve Industrial was audited ISO9001-2008 Quality certification by TUV company.

For Further information pls contact.
