Why choose us:
1. Our strong R&D and QC department can control the products to meet your strict requirement.
2. Different kinds of finish available, like anodized, power coating, painting, polishing, electrophoresis, plating. Etc.
3. Different dimensions according to the client's request
4. Can provide various sizes and packing according to specific requirements
5. We offer the engineer consultation to your design for production improvement and cost saving
6. Customized and tailored order are welcome
7. High quality and delivery in time
8. OEM
Advantages:
1). Verified ISO9001: 2008.
2). Own factory.
3). Die casting, sand casting, gravity casting.
4). Non-standard/standard/OEM/ODM/customized service provided.
5). High precision, tolerance can be within ± 0.02mm.
6). 9 years export experience.
Confidential service:
1) Your information is confidential.
2) Your drawings are confidential.
3) Your products are only for you.

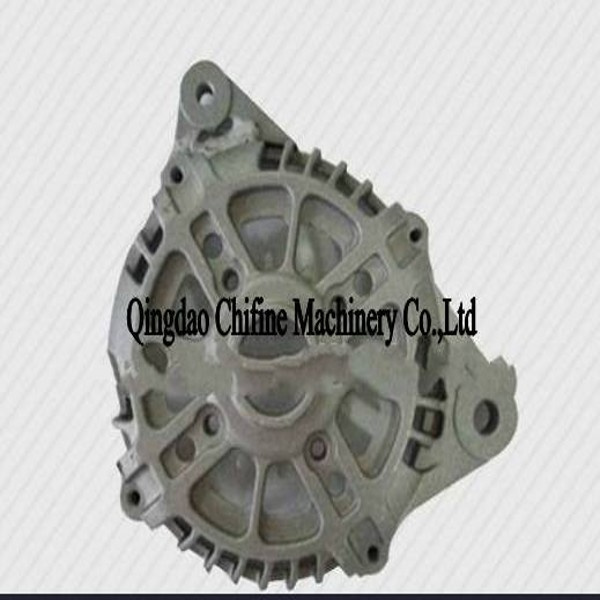

Molding process----Gravity casting
Material: ---- Al alloy, zinc alloy, Standard: DIN ASTM
Industry involved---- Agricultural& Engineering& Automotive industry
Part Unit Weight range----0.01Kg~8kg
Wall thickness requirements----min 2mm
Manufacturer certification---- ISO9001 (2000)
We can supply products with follow test report:
Chemical composition report Tensile strength report
Key dimension checking report Full dimension report
Third part test report
Material
| Various Aluminum Alloy
|
Standard
| DIN, ASTM, BS, JIS etc.
|
Process
| Casting, Deburring, Machining, Surface Treatment, Packing
|
Weight range
| 600KG( Max. unit weight)
|
Technical Process
| Low pressure die casting ,high pressure die casting,sand casting
|
Mould
| Die casting parts
|
Surface treatment
| Painting, polishing, heat treatment, plaining, galvanization, shot blasting,
chromate plating, power coated and anodizing
|
Machining
| CNC Machining Center, Boring Machine, Milling Machine, Lathe, And Radial Drilling Machine
|
Size and design
| As the customer's drawings and requirements
|
| As the customer's samples
|
Drawings
| Pro/E, auto CAD, UG, CAD, PDF and ADSTEFAN (Advanced Solidification
Technology for Foundry Aided by Numerical simulation) for flow analysis
|
Packing
| Bubble bag+Carton+Wooden pallet
|
| As customers' requirements
|
Transportation
| Ocean Shipping, By air, Express ( DHL, Fedex, UPS, TNT, EMS)
|
Inspection
| Foundry in-house
|
| Third Party inspection available upon customers requirements
|
Qingdao Chifine Machinery Co., Ltd is One Famous Company in China Which Specialized in Various Metal Casting Products with Over 10 Years Experience Located in Qingdao China. It Covers a Comprehensive Range of Forging, Stamping, Sand Casting, Investment Casting, Die Casting and Machining and Was Widely Used in Agriculture Machinery, Motor Vehicle, Architecture, Railway and Engineering Chifine Has Accumulated Important and Valuable Experience in Design, Manufacturing and Customer Service Over These Years We Will Continue to Integrate Our Technical Superiority, Improve Process and Quality to Increase Market Share and Create More Brilliant Future.
Automative Casting Line:
• Material: Grey iron(GG20-GG35); Ductile iron(GGG40-GGG60);
Malleable cast-iron(GTS35-10/45-06/55-04/65-02, CTW35-04/05/06/07).
• Product Size: 0-1000mm.
• Weight: 0.2kg-100kg
Resin Sand Casting
• Material: Grey iron(GG20-GG35); Ductile iron(GGG40-GGG60);
Malleable cast-iron(GTS35-10/45-06/55-04/65-02, CTW35-04/05/06/07).
Steel casting(ASTM/UNS; DIN; JIS; NF; BS; ISO)
• Product Size: 0-1500mm.
• Weight: 10kg-5000kg
Shell Mould Casting
Shell casting is one of resin sand casting process.
It is suitable for thin-wall casting parts, be free from porosity.
• Material: Grey iron(GG20-GG35); Ductile iron(GGG40-GGG60);
Malleable cast-iron(GTS35-10/45-06/55-04/65-02, CTW35-04/05/06/07).
Steel alloy; Aluminum alloy; Copper alloy.
• Product Size: 0-500mm.
• Weight: 50g-100kg.
• Wall thickness: 4-20mm
Lost Wax Casting
• Advanced wax-injection-machine and tool to ensure accurate wax-patten.
• Stable temperature and humidity environment make the wax-patten no deformation.
• Material:
Carbon steel; Stainless steel; Alloy steel.
Grey iron(GG20-GG35).
Ductile iron(GGG40-GGG60);
Malleable cast-iron
(GTS35-10/45-06/55-04/65-02, CTW35-04/05/06/07).
Aluminum alloy; Copper alloy.
• Casting size: 0-500mm.
• Casting weight: 50g-100kg
Stamping and Forging Line
• Stamping and forging equipment: 16T-300T press machine
• Automatic transport forging line
• Material: Carbon steel; Stainless steel; Alloy steel.
Aluminum alloy; Copper alloy.
Machining Shop
Our machining shop located in Qingdao, using the latest CNC equipment to provide our customer with high quality products.
• Horizontal and Vertical Machining Center
• CNC lathe and normal lathe
• CNC drilling and milling Center
• Other assistant equipment
