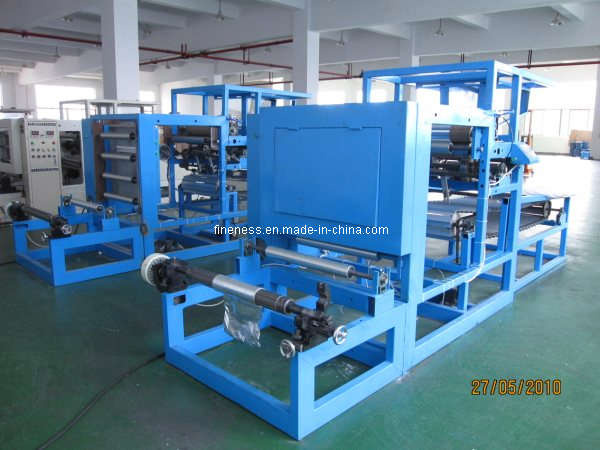

The machine is the fully automatic shunt winding and cutting machine with foil-type materials. It is researched by Zhangjiagang Fineness Aluminum Foil Co., Ltd. In the latest time and applied to the shunt winding processing work of the soft foil materials.
Because of this machine adopts advanced PLC as control system, realize the complete machine run, automatic feeding and baiting; Aluminum foil cut long settings and display; Stepless speed adjusting and display of the aluminum foil run line speed; Shutoff control; Fault auto-diagnosis etc. Function. Aluminum foil transmit, the squirrel-cage rotation is adopt inverter and servo motor driver. Thus this machine has simple operation, safe and reliable, high automation degree and the highest production efficiency.
II. Main technical parameter
1. (Thickness of Raw Material): 0.009_0.025mm
2. (Width of Raw Material): 250_600mm
3. (Maximun Unwinding Diameter): φ 600mm
4. (Inner Diameter of Raw Material Roll Core): φ 75mm\φ 150mm
5. (Inner Diameter of Finished Product Roll Core): φ 25mm\φ 30mm\φ 38 mm
6. (Cutting Length of Roll): 5_300m
7. (Production Efficiency): 2-3m/sec
8. (Decoil Centering Stroke): +/-20mm
9. (Air Pressure): 0.5Mpa
10. (Engine Model):
(Traction Motor): Y100L _4 (Asynchronous Motor) 2.2Kw
(Squirrel-cage Rotary Motor): P60B 8200 (Servo Motor) 1.5Kw
(Rotary Glue Motor): 100YCJ120-3AP (Reduction Motor) 120W
11. (Magnetic Powder Brake): 25N. M
12. (Magnetic Powder Cluch): 12N. M
13. (Overal Dimension): (Length)4000mm (Width)1550mm (High) 1750mm
14. (Total Power): Approx 4.5KW
15. (Total Weight): Approx 1700Kg
III. Main structure and adjustment
FULL-850 model household aluminum foil cutting machine, The major components of decoiling department, roller and foil materials traction system; Rotary automatic received foil system, tube feeding system, winding system, ultraviolet disinfection system, due to its reasonable layout, thus complete machine is compact structure, beautiful appearance. Each part of the function, structural features and adjustment as follows:
(1)\:
1. Decoiling department:
± 20mm.
The mechanism for centering and horizontal adjustment is established in this part to rotate the adjustable hand wheel in different mechanisms for the purpose of centering the volume and paralleling the volume axis and post roller axis. The stroke range of both centering and horizontal adjustment is ± 20mm.
(2)\:
2. Stretch roller:
A group of post rollers and several stretching processes are established from the rolling-up to the traction roller so as to eliminate the tension pulsation and wrinkling phenomenon when the volume is out-of-round and ensure the flat and wrinkling free aluminum foil when the foil materials enters the winding parts.
