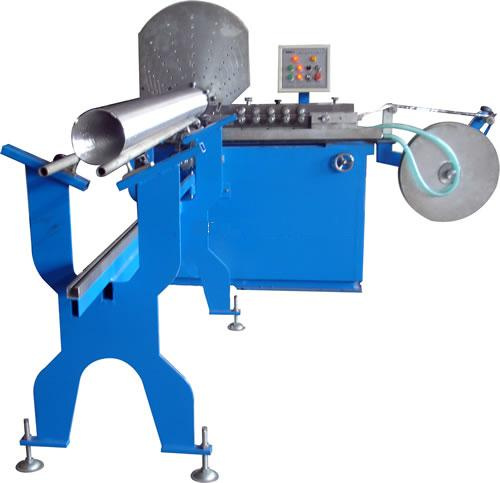

Aluminum Foil Flexible Duct Forning Machine

Aluminum Foil Flexible Duct Forning Machine
Price: Negotiable
Trade Terms: by sea
Min Order: 1set
Pay Type: L/C,T/T
Technical Parameter
Diameter: 80---500mm
Length: 100---4000mm
Material Thickness: 0.06---0.15mm(Aluminum foil strip)
Raw material width: 60mm
Compression ratio: 1: 3.5 (means make the 3.5m tube to 1m)
Surface corrugation: 7 corrugation
Lock way: Double-decked tabby locking
Feeding speed: 0---46m/min
Electricity control: PLC
Refrigeration system: Emulsified liquid cooling
Electrical power: 380V, 3PH, 50Hz.

Main motor power: 1.5kw
Power of Pump: 0.04kw
Power of cutting: 0.12kw
Diameter of raw material coil: Min=70mm(inside), max=500mm(outside)
Weight of raw material coil: 50Kg
Mainframe dimension: 2210× 830× 1530mm (L× W× H)
Weight of Mainframe: 440kg
Run-out table diamesion: 2300× 1200× 650mm (L× W× H)
Weight of run-out table: 50kg.
Zhangjiagang Mingjie Automation Equipment Co., Ltd., is professional manufacturer which specialized in making:
1. Aluminum foil container machine
2. Aluminum foil roll rewinding machine
3. Mould
