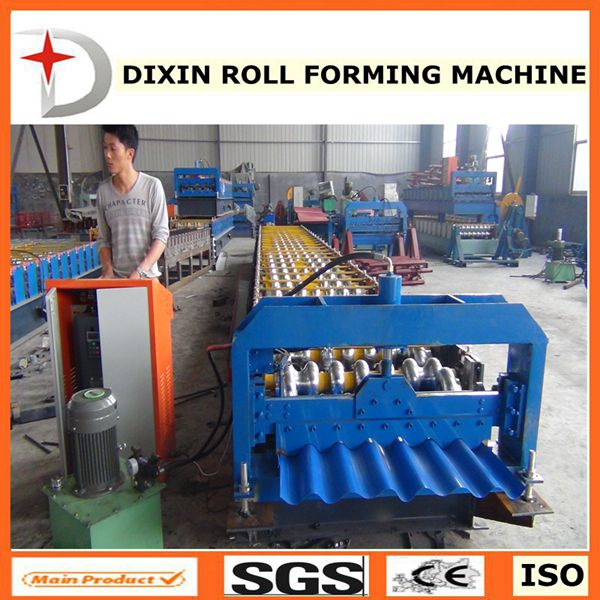

Aluminium Roofing Sheet Corrugating Iron Sheet Making Machine

Aluminium Roofing Sheet Corrugating Iron Sheet Making Machine

1	Name	aluminum corrugated roofing sheet machine
2	Main motor power	5.5kw
3	Hydraulic motor power	4kw
4	Hydraulic Pressure	10-12MPa
5	Voltage	380V /3phase/ 50 HZ (or as your requirement)
6	Control System	PLC Delta Inverter
7	Main Frame	400mm H-Beam
8	Backboard Thickness	16mm
9	Chain Size	1.2inch
10	Feeding Material	color steel coils
11	Feeding Thickness	0.3-0.8mm
12	Feeding Width	1000mm
13	Effective width	750mm
14	Productivity	8-12m/min
15	Roll Station	26 rollers
16	Roller Diameter	75mm
17	Roller material	45# steel
18	Cutter material	Cr12 , quenched
19	Cr-Plating Size	0.05mm
20	Overall Size	15000×1400×1500mm
21	Total Weight	6.0T
22	Components	Manual Uncoiler-------------------1 set Guiding Platform------------------1 set Coil Strip Leveler------------------1 set Main Machine of Roll Forming------1 set Electric-Motor---------------------1 set Cutting Device--------------------1 set Hydraulic Station------------------1 set PLC Control-----------------------1 set Supporter Table-------------------1 set
23	Workflow	Manual decoiling----feeding and guiding----roll forming----cut to length----run out table
24	Package	Main machine is nude in the container
25	Minimum order quantity	1 set
26	Payment terms	T/T(30% T/T pay in advance, the remaining 70% pay before ship)
27	Delivery time	30 working days later after receiving the deposit

Company Introduce:
Our enterprise, Cangzhou Dixin Roll Forming Machine Co., Ltd, as the professional and leading manufacturer, can manufacture, design, installation and debug various roll forming machines and metal processing sheet equipments, which produce metal roof wall panel, glazed roof tile, CZ steel  purlin, floor decking, roof ridge cap, sandwich panel, roof truss, shutter panel, shutter slat, door frame, guardrail, and metal sheet uncoiler, bending, slitting, cutting, flattening, punching, crimping.
Backed by reasonable design, precision machining and selected material, both our standard and customized machines are characterized by long life span, precise forming and easy operation. With our customers' trust, our machines have been sent to America, Australia, Russia, India, Sri Lanka, Nigeria, Pakistan, Uzbekistan, Mozambique, Angola, Turkey, Brazil, etc.
Warmly welcome to China to visit our factory and select the machines you need. Our address,Fuzhuang Industrial Development Zone, Botou City, Hebei Province, China

Why Choose us/Simple advantage in words


1	Direct Factory in China Since 2008
2	Good design and professional engineers more than 20 years experience
3	CE SGS BV AS--- authentication available
4	Overseas service available/one year quality guarantee
5	Good credit
6	Many other designs available and special design available

Our Service
First,we can produce the special machine,send your drawing to us,we can design for you.

Second,if you buy our products,we also can help you to purchase the material,like color roll,the price is lower than you buy by yourself.

Third, we provide a one year warranty and lifelong technical support,we can send our technicians to you to give you on-site training.

Four,engineers available to service machinery overseas.

Five, if you come to visit our factory,we can book the room for you,car pick up to send.

We supply you 24-hour online service, welcome you contact online.

Pls do not be hesitated to contact with us
