Alumina Alloy Rod Continuous Casting Machine with Furnace

Alumina Alloy Rod Continuous Casting Machine with Furnace
Price: US $ 200000-500000/Set
Trade Terms: FOB,CFR,CIF
Min Order: 1/Set
Pay Type: L/C,T/T
Type UL+Z-1500+255/14 Aluminum Alloy Rod Continuous Casting And Rolling Machine

I.Application and Composition

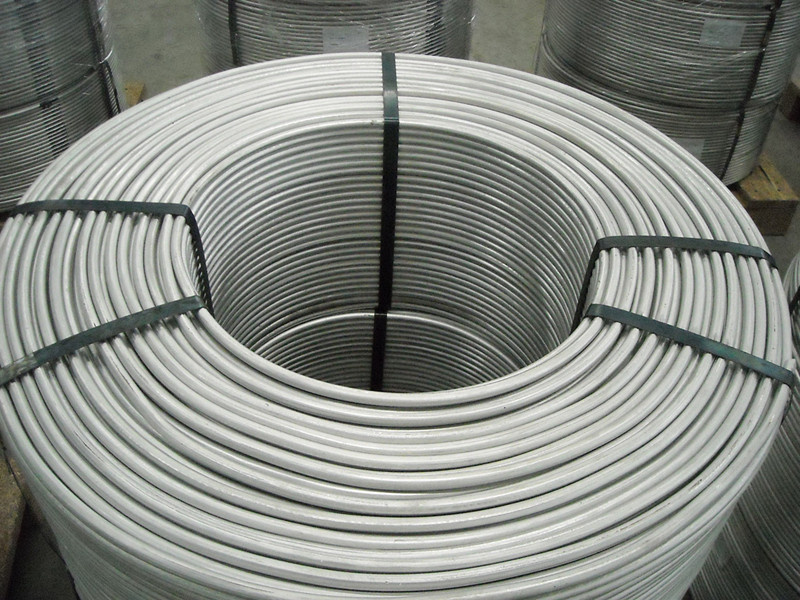

This set of CCR line is applied to produce 9.5mm,12mm,15mm aluminum rod and Al-Mg-Si high? strength thermal-resistant alloy rod by adopting continuous casting and rolling processing technique, which is competitive with the similar products in international standard.

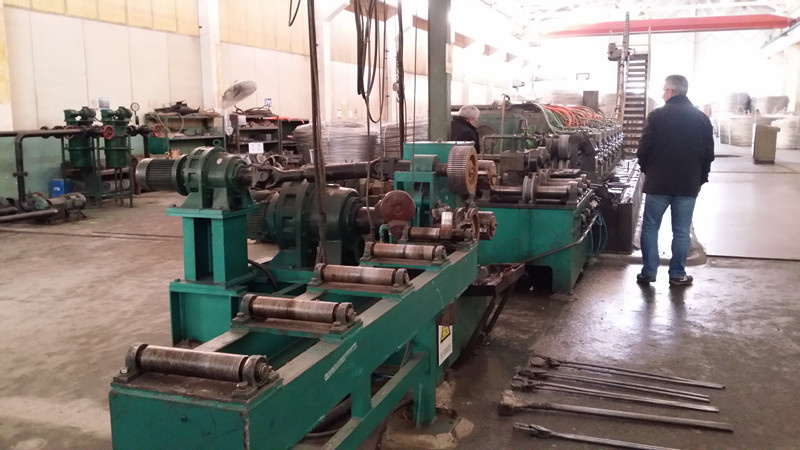

The production line consists of 5-ton shaft melting furnace,two-8ton holding furnace,150m3 water cooling tower(prepared by user),on-line degassing/filter device,5-wheel casting machine,haul-off scrolling shearer,straightening device,frequency multiplication induction heater(includes fiber optical sensing thermometer),continuous rolling machine,alloy rod quenching coiler and so on.

II.Brief process flow
Raw material melting furnace holding furnace launder degassing filtering box casting ladle casting machine haul-off scrolling shear straightening device frequency multiplication induction heater initiative feeding device continuous rolling mill rod quenching device haul-off device continuous rod coiler(pre-forming)centrifuge take-up device.

III.Main technical specifications
1.Diameter of crystallizing wheel:1500mm
2.Outlet ingot speed:8-12m/min
3.Cross section of casting ingot:2300mm2
4.Final rolling speed:4-6.2m/min
5.Production capacity:2.7-5.0t/h
6.Outlet diameter:Φ9.5mm,φ12mm,φ15mm
7.Crystallizing wheel drive motor:Y132M1-6? 4KW  960r/min
8.Rolling mill motor:Z4-355-32? 355KW? 600r/min
9.Quantity of stand:Total 14 stands
(1 set of horizontal roller stand;1 set of vertical roller stand;6 sets of 'Y' type upper- transmission stands and 6 sets of lower-transmission stands)
10.Mode of rod coiler:Centrifuge head-swinging type
11.Roll pass schedule:"oval-circle" +"spherical triangle-circle"
12.Specified size of roller:Φ255mm
13.Diameter of looping take-up:Φ1500-φ2300mm
14.Total power approximately:800kw
15.Total weight approximately:75T
16.Length ×width× height approximately:33 X 9.2 X 11m (includes furnace 47m)
17.Layout of machine (see attached figure)

For more information, Pls feel free to contact us!
Prod Model: UL+Z-1500+255/14 (9.5mm)
Markets: South America,Eastern Europe,Southeast Asia,Africa,Mid East,Eastern Asia
Melting Furnace: 5 T/H (Customized)
Holding Furnace: 2X9 T (Customized)
Final Product: Aluminum Magnesium Silicon
Certification: SGS
Heating System: Electric
Function: Abrasion Resistance
Mould Life: 300,000-1,000,000 shots
Automatic Grade: Automatic
Condition: New
Customized: Customized
Warranty: 12 Months
Demoulding: Mechanically
The Deyang Dedong Electrotechnical Machinery Manufacture Co., Ltd is located in Deyang city, Sichuan Province where is a processing center with heavy industries. The company has been engaging in manufacture of specialized wire & cable equipments for 35 years. It is a private joint-stock enterprise which puts design, machining, manufacture, installation and commissioning into integrity.

Getting support from its technicians with high quality and high academic credentials and teams with advanced management ideas and market administration ability, with the persistent standpoint of market-oriented development, the company strives for promptly providing customers with high-tech products and services characterized as "prompt services for new products with super quality and competitive price".

Company's machining capabilities cover an extensive range, with a well-equipped machining workshop, assembly, assembly workshop, welding workshop, heat treatment workshop, tool workshop, gear processing workshops, and fixture workshop attached to the production department, the annual output value reached more than 30 million.

"Dedong Electrotechnical", which is the council member unit of China electrotechnical professional association, passed through the certification of national GB/T19001-2000 quality management system and obtained an honorary title of Sichuan quality credibility enterprise in 2007. The company owns an independent export right.

The main products in our company have aluminum, alloy/copper rod continuous casting and rolling line, aluminum/copper wire drawing machine, wire stranding machine, continuous lead sheathing extruder etc., which have been exported to many countries, gotten high evaluations from customers all over the world.

Sincerely inviting you to hold us together to win the market and create a bright future.
