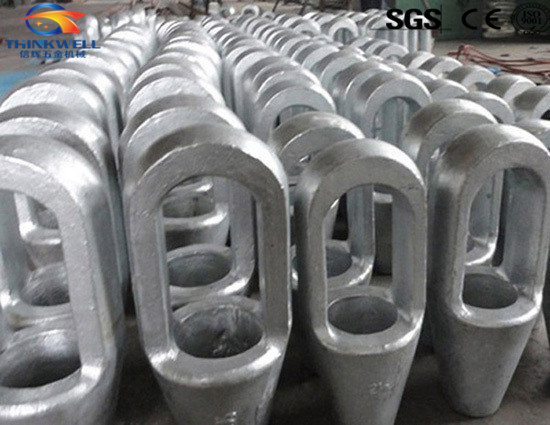

Alloy Steel Galvanized Closed Spelter Socket for Wire Rope
1.Hot dipped galvanized.
2.While attaching spelter sockets to wire rope it is extremely important to follow recommended procedures. Such as outlined by the American Iron and Steel Institute.
3.Drop forged steel up to 1-1/2 trade size. 1-5/8 and larger are cast alloy steel.
4.Meets performance requirements FED SPEC RR-550-D Type A, unless stated otherwise.
5.In accordance with ANSI B30.9, all slings terminated with spelter sockets shall be proof-tested.
6.When attached properly, these sockets will meet 100% of the wire rope capacity.
Material: Carbon Steel/Alloy Steel
Process: Drop forged
Packing: Carton, Pallet,Bag or according to customers'requirements
Color: Silver
Size:1/4''-----33/4-4"
FOR SIZE(inch) | DIMENSIONE(in) |
| A | C | D | F | G | H | J | L | M | N |
| 1/4 | 4.56 | 0.75 | 0.69 | 0.38 | 0.69 | 1.56 | 2.25 | 1.56 | 1.31 | 0.31 |
| 5/19-3/8 | 4.84 | 0.81 | 0.81 | 0.5 | 0.81 | 1.69 | 2.25 | 1.75 | 1.5 | 0.44 |
| 7/16-1/2 | 5.56 | 1 | 1 | 0.56 | 0.94 | 1.88 | 2.5 | 2 | 1.88 | 0.5 |
| 9/16-5/8 | 6.75 | 1.25 | 1.19 | 0.69 | 1.13 | 2.25 | 3 | 2.5 | 2.25 | 0.56 |
| 3/4 | 7.94 | 1.5 | 1.38 | 0.81 | 1.25 | 2.62 | 3.5 | 3 | 2.62 | 0.62 |
| 7/8 | 9.25 | 1.75 | 1.63 | 0.94 | 1.5 | 3.25 | 4 | 3.5 | 3.13 | 0.8 |
| 1 | 10.56 | 2 | 2 | 1.13 | 1.75 | 3.75 | 4.5 | 4 | 3.75 | 0.88 |
| 1-1/8 | 11.81 | 2.25 | 2.25 | 1.25 | 2 | 4.12 | 5 | 4.62 | 4.12 | 1 |
| 11/4-13/8 | 13.19 | 2.5 | 2.5 | 1.5 | 2.25 | 4.75 | 5.5 | 5 | 4.75 | 1.13 |
| 1-1/2 | 15.12 | 3 | 2.75 | 1.63 | 2.75 | 5.25 | 6 | 6 | 5.38 | 1.19 |
| 1-5/8 | 16.25 | 3 | 3 | 1.75 | 3 | 5.5 | 6.5 | 6.5 | 5.75 | 1.31 |
| 13/4-17/8 | 18.25 | 3.5 | 3.5 | 2 | 3.13 | 6.38 | 7.5 | 7 | 6.5 | 1.56 |
| 2-21/8 | 21.5 | 4 | 3.75 | 2.25 | 3.75 | 7.38 | 8.5 | 9 | 7 | 1.81 |
| 21/4-23/8 | 23.5 | 4.5 | 4.25 | 2.5 | 4 | 8.25 | 9 | 10 | 7.75 | 2.13 |
| 21/2-25/8 | 25.5 | 5 | 4.75 | 2.88 | 4.5 | 9.25 | 9.75 | 10.75 | 8.5 | 2.38 |
| 23/4-27/8 | 27.25 | 5.25 | 5 | 3.12 | 4.88 | 10.5 | 11 | 11 | 9 | 2.88 |
| 3-31/8 | 29 | 5.75 | 5.25 | 3.38 | 5.25 | 11.12 | 12 | 11.25 | 9.5 | 3 |
| 31/4-33/8 | 30.88 | 6.25 | 5.5 | 3.62 | 5.75 | 11.88 | 13 | 11.75 | 10 | 3.12 |
| 31/2-35/8 | 33.25 | 6.75 | 6 | 3.88 | 6.5 | 12.38 | 14 | 12.5 | 10.75 | 3.25 |
| 33/4-4 | 36.25 | 7.5 | 7 | 4.25 | 7.25 | 13.62 | 15 | 13.5 | 12.5 | 3.5
|
Customized requirements are welcome!
Origin: China
FOB Port: Qingdao Port
Lead time: 15~45 Days or according to required quantity
Main export market: US, Australia, European countries, India or others
Standard: CE, ISO
Advantages:
1. Rich experience for international business
2.Prompt delivery
3.Quality control
4.Small orders are acceptable
5.Strong ability for R&D.
Qingdao Thinkwell also manufactures hooks, shackles, turnbuckles, wire rope clips, load binders ,auto parts,electric powder fitting and other rigging hardware accessories.
Qingdao Thinkwell Hardware & Machinery Co., Ltd is the manufacturer deals in Rigging Hardware, Forged Engine Connecting Rod and Automobile Forging Parts over 10years.
Our rigging hardware factory covers an area of 8, 000 square meters and its architectural area is 5, 000 square meters. It has over 100 staff, including 3 engineers, 10 specialized technican, owned advanced machinery and equipment.
Rigging Hardware Equipment:
1)1000 T forged pressing machine,
2)160T/300T/400T/630 T forged pressing machine,
3)2 production line, include a set of punch, thread rolling machine, tapping machines, lathes, milling machines.
"Our Service, Your Safety", "Customers Demand, Our Pursuit ". To provide the most suitable products and pragmatic services is our firm belief. We can design and manufacture varies of products according to customers requirements. We have been putting the priority to the QUALITY, SINCERITY, EFFICIENCY, and SERVICE.
Sincerely wish long-term cooperation between you and us. Warmly welcome to our company for a visit.
Qingdao Thinkwell Hardware & Machinery Co., Ltd is the manufacturer deals in Rigging Hardware, Forged Engine Connecting Rod and Automobile Forging Parts over 10years.
Our rigging hardware factory covers an area of 8, 000 square meters and its architectural area is 5, 000 square meters. It has over 100 staff, including 3 engineers, 10 specialized technican, owned advanced machinery and equipment.
Rigging Hardware Equipment:
1)1000 T forged pressing machine,
2)160T/300T/400T/630 T forged pressing machine,
3)2 production line, include a set of punch, thread rolling machine, tapping machines, lathes, milling machines.
In 2009, our company invest over five millions to our cooperate company and bulit two new advanced intermediate frequency induction heating, forging forming, heat quenching forging production lines to produce Automobile forging parts and Engine Connecting Rod. In April of 2010, get TS16949 international quality system certification. Our Auto forging parts and Connecting Enjoying good reputation in domestic and world market because of good quality and competitive price.
Main Equipment for Automobile Forging parts and Connecting Rod:
1)1600T/1000T/630T Forged Pressing Machine
2)800 kw intermediate frequency induction furnace
3)The pusher-type continuous tempering furnace
Rigging Hardware Products: Load Binders, Turnbuckles, Shackles, Hooks, Wire Rope Clip, Wire Rope Thimbles, Eye Bolts&Nuts, Connecting Links, Anchor, Chain Accessories...etc.
Automobile Forging Products:
1. Automobile, engineering machinery forging parts.
2. Automobile steering arm, rack forging parts
3. Automobile, engineering machinery engine connecting rod assembly
Customized forging parts welcomed
"Our Service, Your Safety", "Customers Demand, Our Pursuit ". To provide the most suitable products and pragmatic services is our firm belief. We can design and manufacture varies of products according to customers requirements. We have been putting the priority to the QUALITY, SINCERITY, EFFICIENCY, and SERVICE.
Sincerely wish long-term cooperation between you and us. Warmly welcome to our company for a visit.
