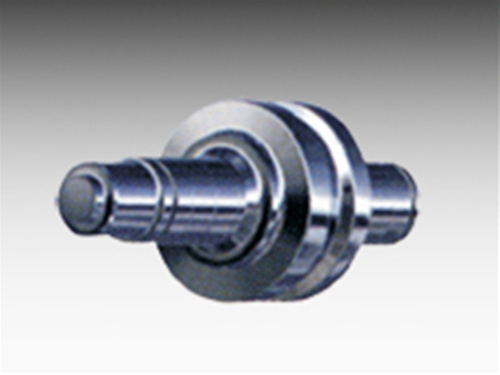

Alloy chilled cast iron rolls are one kind of cast iron rolls, which contain almost no free graphite in the matrix of working layer of the barrel. They have hardness and excellent wearabillity, are suitable to finish stands of light bar and wire rolling mills and narrow strip mills. Its microstructure is fine pearlite and carbides.
Chemical Element %:
Brand C Si Mn Cr Ni Mo
CC 1 3.00-3.50 0.20-0.80 0.20-1.00 0.20-0.60 0.50-1.00 0.20-0.60
CC 2 3.00-3.50 0.20-0.80 0.20-1.00 0.30-1.20 1.01-2.00 0.20-0.60
CC 3 3.00-3.50 0.20-0.80 0.20-1.00 0.50-1.50 2.01-3.00 0.20-0.60
CC 4 3.00-3.50 0.20-0.80 0.20-1.00 1.00-2.00 3.01-4.80 0.40-0.80
Properties and Application:
Brand Barrel Hardness(HS) Tensile Strength(Mpa) Bending Strength(Mpa) Application
CC 1 60-70 ≥ 150 300-400 Small profiled bar, stick and narrow steel finishing mill frame
CC 2 60-75 ≥ 160 300-400
CC 3 65-80 ≥ 300 500-700
CC 4 70-85 ≥ 300 500-700
