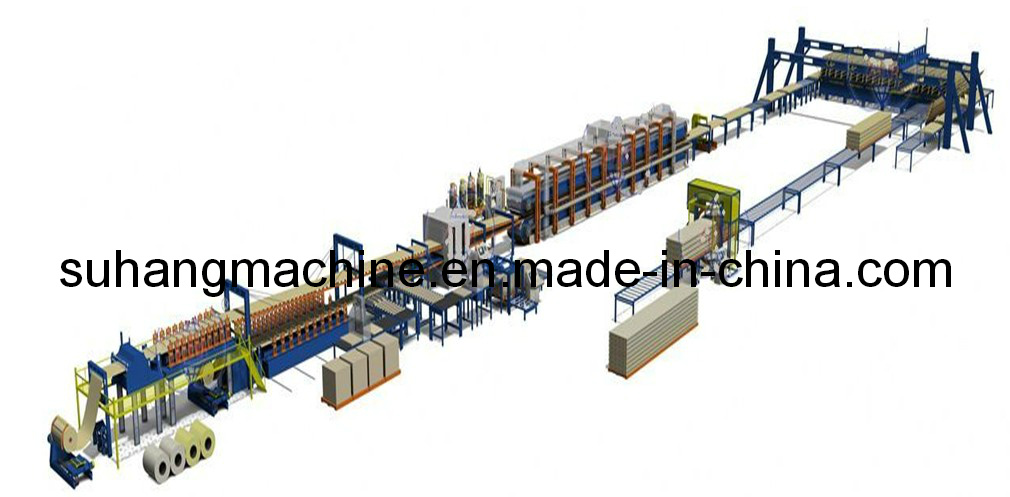

0.7-1.2mm Ceiling Panel PU Sandwich Panel Machine

0.7-1.2mm Ceiling Panel PU Sandwich Panel Machine
Price: US $ 80000set
Trade Terms: FOB,CIF,EXW
Min Order: 1set
Pay Type: L/C,T/T

0.7-1.2mm Ceiling Panel PU Sandwich Panel Machine

Technical Specifications:


1)The effective working length:24m (adjust according to customer's requirement)
2)Length & width of double belt:1400mm*267mm
3)Material of double belt:Alloy steel
4)Thickness of double belt:14mm
5)Speed of double belt:3-10m
6)Heat treatment of double belt:HRC25º
7)Diameter of pin of double belt:φ40mm
8)Material of pin:Alloy steel
9)Hardness of pin:HRC500
10)The plane precision of double belt: static ±0.05mm ;dynamic±0.10mm
11) Up and down synchronous precision of double belt:1/10000
12)Synchronous gear modulus of double belt:M=10
13)Diameter of synchronous  lift cylinder:φ80mm ,work pressure:16MPa
13)Adjust method of side module:electro motion adjust,auto lock ,number indicate
14)Material of side module:project plastic(Nylon 1010)
15)Standard cushion block thickness specification:40mm,120mm
17)Supply 50mm one set for roof side module, supply bottom module one set, supply 50mm one set for wall module
18)chain section distance of side module:3/4 inches
19)Up belt lift range:40mm -250mm

20)Power of hydraulic motor: 7.5KW



Our Honorable Prize
1Styleroller shutter machine
2Machine dimension (mm)7500*900*1400
3Total wight (Kg)6500
4Forming steps17
5Forming speed (m/min)Approx.10
6Hydraulic station power(Kw)13
7Diameter of shaft (mm)45
8Electric condition380V/3Phase/ 50HZ
9Power for hydraulic decoiler(Kw)2.5 and 3
10Decoiler max capacity (Kgs)5000
11Control system PLC
12Raw material thickness (mm)0.5-1.2
13Effective width(mm)80
14Material width(mm)125
15Main applicationroll shutter door
16Serial numberG2011007

Prod Model: SH-PU
Markets: North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe
Brand Name: Suhang
After-Sales Service Provided: Engineers Available to Service Machinery Overseas
Control System: PLC
Forging Forming Method: Mold Forging
Wuxi Suhang Machinery Manufacturing Co., Ltd. is a comprehensive enterprise combining production, sales and services. We are mainly engaged in providing machineries and equipments.

Owing to a professional teamwork, we are experienced in manufacturing, import and export, customers' design, installation and test, technical solution and after-sale services. We have shipped out our machines to more than 70 countries, and keep good business relationships with a large amount of worthy customers, contributing to our great business records and reputation.

We have our customers in different districts and continents. We sell products in the Middle East, Turkey, East Europe, Russia, South and East Asia and South America. Our factories are in Wuxi, which is just 100 km from Shanghai, just 45 min by the fast train. We have rich technology in design and manufacture for different requirements.

Our goal is to supply high quality products. We also try to guarantee timely delivery, all around services at reasonable cost. We have already established favorable relationships with many clients around the world. Working to extend our presence internationally, we are looking forward to cooperating with your company for mutual benefit. Please feel free to contact us.

Main product: C Purlin Roll Forming Machine; Z Purlin Roll Forming Machine; C/Z Iinterchangeable Purlin Roll Forming Machine Standing Seam Forming Machine; Bemo Sheet Forming Machine; Cold Roll Forming Machine; Roof Deck Forming Machine; Floor Deck Forming Machine; Guardrail Forming Machine; Glazed Tile Forming Machine; Corrugated Forming Machine; Double Layer Forming Machine; K Span Forming Machine; Hat Purlin Forming Machine; Hydraulic Curving Machine; Roller Shutter Production Line; Garage Door Production Line; Tapered Sheet Forming Machine, welcome to visit our factory!
