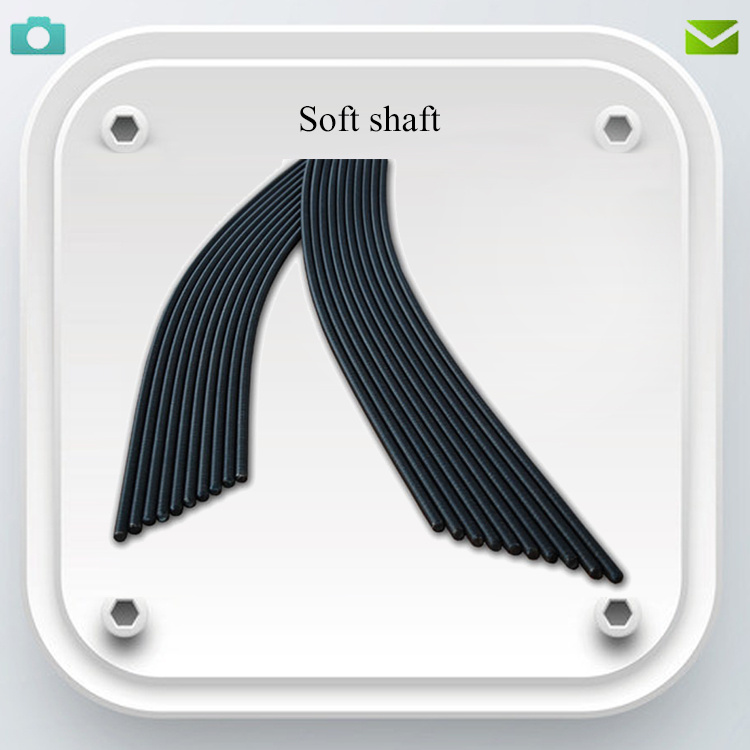

Product Description
Material: 60 #, 70#, 65Mn, high-carbon steel wire
Direction of Twist: Levorotation and Dextrorotation
Scope of Application: Vibrating machine, automobile, motorbike, counter, revolution counter, electric tools, gardening machinery mower, and various mechanical flexible rotations, etc.
Characteristic: Smooth, flexible, highly-elastic, and wear resistant
Technical Specifications:
Flexible shaft is composed of multilayer long spring, interlayer close by, and that by two layers of coil in the opposite direction. The center for steel wire core.
Diameter 3-20 mm
Wire 70 high spring steel wire
Five layer structure
Material: 70, 65 mn high carbon spring steel wire;
Lay: Left-handed and right-handed
Scope of application: Construction machinery, garden tools, automobile industry, aviation industry, Marine equipment, railway locomotives, machine tools, mold manufacturing, metal processing, medical equipment and various kinds of remote control of the non linear mechanical transmission.
Performance: Smooth, flexibility, high elastic, wear-resisting.
|
Diameter (mm) |
Tolerance (mm) |
Number of Layers |
Torque Moment
(N @ m)
(Sample 500mm Long) |
Weight
(kg/ 100m) |
|
2.0 |
+0.02
-0.02 |
3/5 |
0.8 |
1.8 |
|
2.5 |
3/5 |
1.0 |
2.8 |
|
3.2 |
3/5 |
1.3 |
4.6 |
|
3.8 |
3/5 |
1.5 |
6.5 |
|
5.0 |
+0.00
-0.05 |
3/4/5 |
1.8 |
11.3 |
|
6.0 |
3/4/5 |
2.4 |
16.2 |
|
6.5 |
4/5/7 |
2.9 |
18.7 |
|
8.0 |
|
5/7 |
7.5 |
28.8 |
|
10 |
4/5/6 |
22.5 |
45.5 |
|
12 |
5/7 |
39.0 |
66.5 |
|
13 |
5/7 |
50.5 |
77.5 |
|
16 |
5/7 |
115.0 |
114 |
|
18 |
5/7 |
160 |
145 |
|
The flexible shafts not listed in the chart can be customized |
