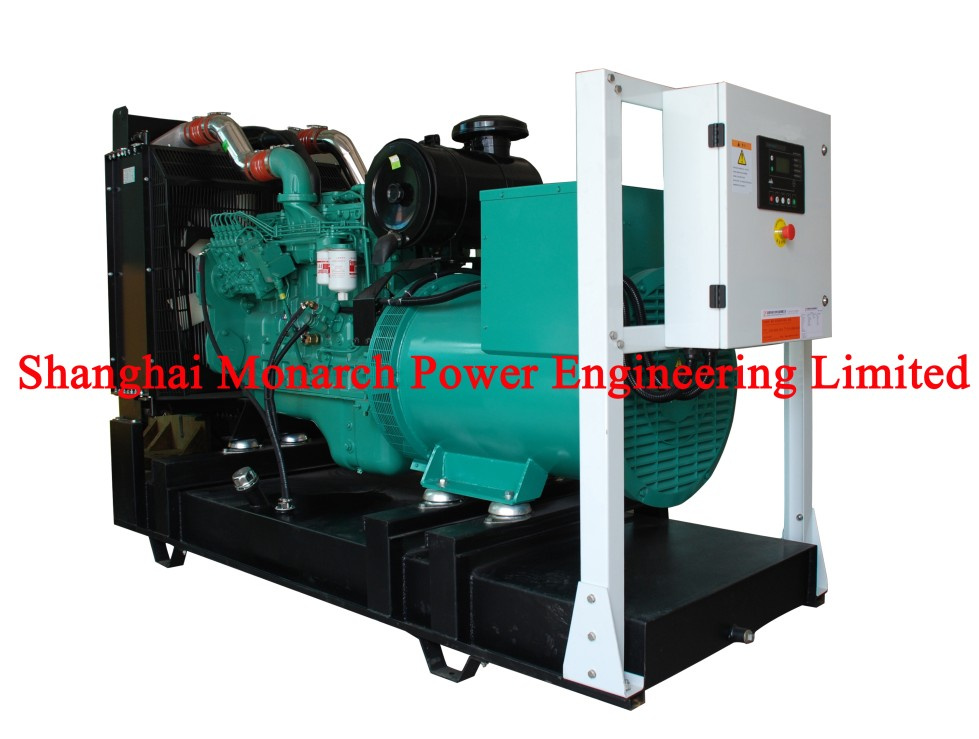

60Hz (20~251kw) Dcec Cummins Power Generator Set
| Price: |
US $ 10000/Piece |
| Trade Terms: |
FOB,CFR,CIF |
| Min Order: |
1/Piece |
| Pay Type: |
L/C,T/T |
DCEC series generator
* Durable cylinder design, low vibration and noise, smooth running, and high efficiency.
* To use high quality air filter to insure and prolong the engine life time.
* Unique PT fuel system.
* Endure the injection pressure to be 1000kg.
* Low pressure of fuel feeding, reduce the fuel leakage of fuel pipeline.
* To use high pressure turbocharger.
* Integral type forging crankshaft and connecting rod provide more durability.
* Increase the use of fluoride coolant additives to enhance the capacity of the engine's anti-cavitation pitting.
* Disposable using water, fuel and lubricant filter cleaner/core, facilitates the maintenance with much more reliability.
* Each cylinder has 4 valves. Water coolant, exhaust turbo, 4 strokes, direct fuel injection system.
* EFC electrical governor composed with PT fuel injection system, engines' steady speed adjusting rate can be set between 0~5% freely, implements the remote control and auto-control easily.
* The electrical heater built in the air branch pipeline increases the starting speed at the low temperature circumstance and also reduce the exhaust, which is designed to comply the related national standards.
* The latest technology optimizes the burning process, evidently reduces the fuel consumption with more reliability, don't need any overhaul within 15000 hours which is the most developed technology in the world. Lower fuel consumption, lower cost, more economical and more security.
Note:
1. Above that technical specifications are all 50Hz, rated voltage is 400/230V, the power factor is 0.8(lag), and the connecting type is 3 phase and 4 wires. The 60Hz diesel generator sets can be supplied according to the customers' requirements.
2. Specifications may change without notice. | DCEC engine powered genset 60HZ |
| Shanghai monarch power engineering limited |
| Monarch power | Generator Model | Engine model | ENGINE POWER (KW) | GENERATOR POWER (KW) | ALTERNATOR BRAND | SPEED |
| Monarch power | PRIME | STANDBY | PRIME | STANDBY |
| Monarch power | DCEC POWER |
| Monarch power | SMPC-DC25-1-2 | 4B3.9-G1 | 25 | 28 | 23 | 25 | Stamford Or Marathon | 1800 |
| Monarch power | SMPC-DC25-2-2 | 4B3.9-G2 | 25 | 28 | 23 | 25 | Stamford Or Marathon | 1800 |
| Monarch power | SMPC-DC38-1-2 | 4BT3.9-G1 | 38 | 42 | 34 | 37 | Stamford Or Marathon | 1800 |
| Monarch power | SMPC-DC38-2-2 | 4BT3.9-G2 | 38 | 42 | 34 | 37 | Stamford Or Marathon | 1800 |
| Monarch power | SMPC-DC53-2-2 | 4BTA3.9-G2 | 53 | 58 | 47 | 52 | Stamford Or Marathon | 1800 |
| Monarch power | SMPC-DC88-1-2 | 6BT5.9-G1 | 88 | 97 | 79 | 87 | Stamford Or Marathon | 1800 |
| Monarch power | SMPC-DC88-2-2 | 6BT5.9-G2 | 88 | 97 | 79 | 87 | Stamford Or Marathon | 1800 |
| Monarch power | SMPC-DC115-2-2 | 6BTA5.9-G2 | 115 | 127 | 104 | 114 | Stamford Or Marathon | 1800 |
| Monarch power | SMPC-DC125-2-2 | 6BTAA5.9-G2 | 125 | 138 | 113 | 124 | Stamford Or Marathon | 1800 |
| Monarch power | SMPC-DC169-2-2 | 6CTA8.3-G2 | 169 | 186 | 152 | 167 | Stamford Or Marathon | 1800 |
| Monarch power | SMPC-DC190-2-2 | 6CTAA8.3-G2 | 190 | 209 | 171 | 188 | Stamford Or Marathon | 1800 |
| Monarch power | SMPC-DC228-2-2 | 6LTAA8.9-G2 | 228 | 251 | 205 | 225 | Stamford Or Marathon | 1800 |
| Markets: |
South America,Southeast Asia,Africa,Mid East |
| Type: |
Self-Starting Diesel Generator |
| Installation Method: |
Fixed |
| Stroke: |
Four Stroke |
| Cooling Method: |
Water Cooling |
| Output Type: |
AC Three Phase |
Shanghai Monarch Power Engineering Limited has already established very close relationships with Cummins, Deutz, Isuzu, Lovol, Iveco, Nissan, Toyota and other manufacturers. We can also provide you with the complete series of engines with the brands above. The engines are used for marine propulsion, marine generators, industrial generators, construction engines, vehicle engines, agriculture engines, etc.
We has already established cooperation relationships with customers all over the world, with an experienced and professional staff group, as well as senior engineers, technicians and salesmen. Now our company is known as a leading manufacturer in supplying of diesel generators (for both industrial use and marine use).
We can provide you with generators which are approved by China Classification Society CCS. Our marine generator can be approved by CCS, ABS, BV, DNV, GL, LR, GL, RS, etc. With steady quality, quick and professional service, our company gains the general recognition from users at home and abroad.
We are sincerely looking forward to establishing business relationships with you for our mutual benefit.
Products of Monarch Power Limited dealing with
1) Diesel engine: CUMMINS B, C, ISBe, ISDe, ISLe, L, ISF2.8/3.8 and DEUTZ BFM1015, FL413 & FL513, TBD234 and 226B for vehicle; CUMMINS B, C, KTA, N and DEUTZ TBD234, 226B for marine; CUMMINS B, C and DEUTZ FL413&FL513, FL912&913, TBD234 and 226B for genset; CUMMINS B, C, M11 and DEUTZ FL413&FL513, FL511, FL912&FL913, 226B, BF4M1013&BF6M1013, BF1015, TBD234 for industry.
2) Engine spare parts and machinery components: Genuine, OEM and aftermarket parts for the CUMMINS, DEUTZ, KOMATSU and some Japanese serial car. Genuine and Chinese-made machinery parts for the heavy mchine. Cummins Marine Engine Parts.
3) Generator set: CUMMINS diesel generator set for landuse and marine; CUMMINS natural gas and biogas generator set. DEUTZ diesel generator set
Monarch Power Limited welcome to customers from all around the world to visit and expect to build long and friendly business relations with you and your company in the near future!
