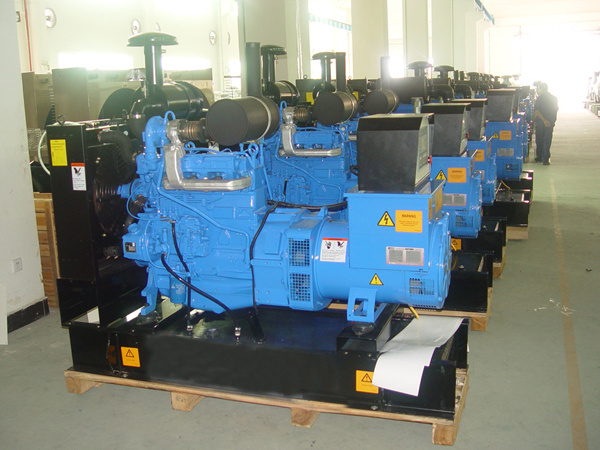

50KW DEUTZ Range Generating sets/Generator sets/Gensets(20KW-132KW)
AVESPEED/Deutz Diesel Genset is a set of complete equipment of electrical Power supply.
Adopting Modular design, the engine features compact structure, large power output, economy, reliability, high universality of the spare parts and easy maintenance. Deutz engines, high-quality generator and advanced full-automatic control system are produced through strict test, which together provides reliable power no matter as standby, prime or continuous use.
Deutz Engine
1Structure
a)Cylinder Heads: high strength nodular iron casting
b)Connecting Rods: high carbon alloy steel Forged
c)Crankshft: High Alloy Steel
Forged, bolt-on counterweights
d)Cylinder liner: replaceable
2 Electronic governor has been used to adjust the governing ratio between 0 and 5%
3. Intake system
a)Dry element air filter with visual restriction indicators, turbocharged(Intercooler)
4. Fuel control system
a) A-type multi-cylinder-combined injection pump and closed multi-hole injector have been used in the fuel systems of Deutz series diesel Engines, two pole fuel filter ensures the cleanness of fuel in injection pump, and increase the lifetime of injection pumps.
b)P-type low pressure chamber Euro-Asian extrusive and grinding injector has been used to improve the quality of fuel atomization.
Main Engine Model
D226B-3D, TD226B-3D, TD226B-4D, TD226B-6D, TBD226B-6D, TBD226B-6D5, D226B-3D^
| D20-D48 SERIES AIR-COOLED DEUTZ GENRATOR SETS |
GENSET
| Continuous model | D20 | D30 | D40 | D50 |
| Continuous output(KW/KVA) | 20/25 | 30/38 | 40/50 | 50/60 |
| TECHNICAL DATA |
| DIESEL ENGINE MODEL | F3L912 | F4L912 | F6L912 | F6L913 |
| Engine Characters | Vertical type, 4-stroke, air-cooled, direct injection, 1500rpm |
| Constant Output(KW) | 24 | 32 | 48 | 51 |
| Standby Output(KW) | 26 | 35 | 52 | 54 |
| Aspiration | Naturally |
| Bore(mm)xStroke(mm) | 100x120 |
| Cubic Capacity(Liters) | 2.8 | 3.8 | 5.7 | 6.1 |
| Compression Ratio | 17:1 |
| Speed Characteristic | The Speed stability bandwidth≤±0.25%, the steady governing rate≤1% |
| Fuel Consumption(g/kw.h) | ≤215 | ≤218 | ≤221 | ≤234 |
| Lube Consumption(prime) | ≤1.36g/KW.h |
| ALTERNATOR MODEL | YHG184F | YHG184H | YHG224D | YHG224E |
| Continuous Output(KW/KVA) | 22/28 | 30/38 | 40/50 | 48/60 |
| Power Efficiency | 90% | 90% | 90% | 90% |
| Voltage Regulation | ±1.0% with 4% engine governing |
| Waveform Distortion | No load≤1.5% and non-distorting balanced linear load≤5% |
| THF/TIF | ≤2%/≤50 |
Beijing Avespeed Commercial & Trading Co., Limited is the leading manufacturer and supplier of diesel engines for marine propulsion, marine Gen-sets, stationery Gen-sets and power plant applications in China. AVESPEED manufactures diesel engines with unit output from 150KW to 4500KW, which can be used as propulsion of merchant vessels and special vessels from 1000 to 30000 tons DWT. AVESPEED manufactures marine auxiliary diesel generators with unit output from 150KW to 4500KW and stationery HFO generators with unit output from 500KW to 8000KW.
AVESPEED designs and builds turn-key power plant with an output up to 100MW as base load power plant, peaking power plant or industrial self-captive power plant in cement, textile, mining or oil and gas industries etc. The power fuel can be diesel oil, bio-diesel, heavy fuel oil (HFO) or bi-fuel. AVESPEED has been set up more than 200 heavy fuel oil (HFO) power plant projects in the world in recent years, especially in Nigeria, we have set up more than 60 HFO power plant projects there.
All of our marine diesel engines have achieved type approvals and work test approvals of, CCS, China Ships Inspection Bureau, and China Fishing Ships Inspection Bureau. Many products are rated as "National Grade New Products" and "Industry Brand Products" and awarded with "National Prize for Progress in Science and Technology", Now AVESPEED diesel engines are widely used for deep sea fishery, inshore fishing ships, ocean shipping, inland water navigation, passenger cargo ship transport, harbor tug, engineering ships, enforcement ships, naval auxiliaries etc.
New energy products developed in recent years including natural gas generator sets, biomass generator sets, tyre oil/vegetable generator sets and dual-fuel generator sets with unit output from 50KW to 1000KW.
AVESPEED also involves in the development and manufacture of the crystal silicon (mono and poly) solar panel/module, photovoltaic system, and other photovoltaic products. We supply solar panels ranging from 45W to 290W. AVESPEED's on-grid and off-grid inverters are the sole in China certified by TUV. The PV inverters range from 1KW to 1000KW.
Our products and manufacturing processes fully comply with product safety requirements, including TUV/IEC61215 & 61730, CSA/UL1703, MCS, CE and UKAS. Additionally, we have implemented best practices to protect the environment and conserve energy.
So far, our customers spread dozens of countries and regions in Europe, Middle East, Africa, South America, Southeast Asia and West Asia. AVESPEED is willing to cooperate with relevant famous enterprises and far-sighted, strong-willed and talented people at home and abroad by supplying our high-quality products and excellent service.
