45# Forged Shaft
Price: |
US $ 40-80000/Piece |
Trade Terms: |
FOB,CFR,CIF |
Min Order: |
1/Piece |
Pay Type: |
L/C,T/T |

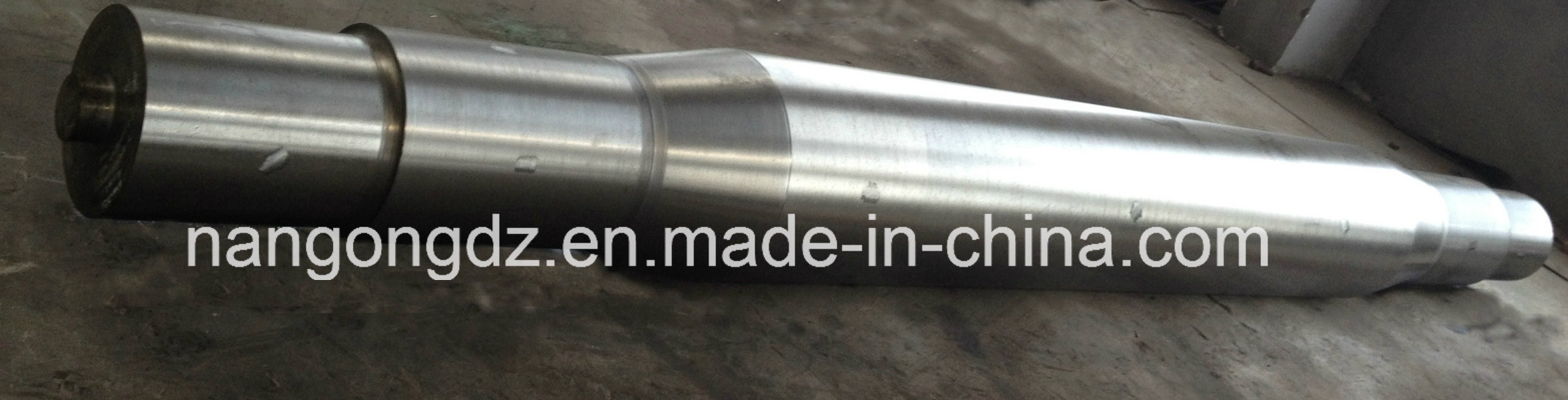

45# forged part
Specification of the shaftThis type of 45# forged part
is Nangong's usual forging products which can be produced according to customer's drawings. Of course, more details can be well discussed after email or call us. Company IntroductionJaingyin Nangong Forging Co., Ltd is a factory with more than 20 years experiences in forging industry which can provide all kinds of forgings from 5kg to 60tons. Our products ranges from wind turbine shaft, step-down shaft, rotor, gear, flange, hub, plate, valve block, bar, disc, ring, sleeve, pipe etc. All of our products are widely used in many areas as follows: wind power, hydropower, thermal power, metallurgy, mining, petrochemical, ship building, energy, transportation, pressure vessel etc. Our production line comprise smelting, forging, rough machining, heat treatment and final machining. The major forging facilities including hydraulic pressure machines(2000T, 4000T and 6000T), electro-hydraulic hammer(3T, 5T)and air hammer(560kg, 750kg,1T)We have acquired ISO9001:2000, ISO14000, ISO18000, and has been authorized by world class ship classification society such as BV, LR and PED certificate issued by European Union.More information are offered as follows.Nangong's brief information for your reference |
Products Description | Grade of Raw Material | Equipement | Size |
Forged parts: shaft, roller, rotor, bar, rod, pin, ring, flange, hub, bushing, coupling, sleeve, nut, disc, valve block, pump body, support, pinion, gear, wheel, tube, piston, pipe and plate. | Alloy steel, stainless steel, corrosion resistant alloy, supper alloy, special stainless steel, die steel, Nickel-based alloy. | 6300T/4000T/2000T free hydraulic pressure machine, 5T/3T/2T/1T/750KGS/560KGS electro hydraulic hammer, smelting furnace, heat treatment furnace | 5kgs~65,000kgs/PC |
Customer | Certification | Application | Employee |
Alstom, Danieli, Envision, DEC , SMS, Siemens | BV, PED, AD2000-w0, API Q1, ASME, CCS, ISO9001, OHSAS 18001, ISO14001 | Oil&Gas, Wind power, Biomass, Ship builing, Pressure vessel, Mining machinery, Paper machinery, Transportation, Military project. | 700 |
Prod Model: |
forged shaft |
Markets: |
North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe |
Diameter: |
50-4000mm |
Length: |
80-13000mm |
Machining Degree: |
Rough Maching, Semi Finish or Final Machining |
Geometric Tolerance: |
According to Customer's Drawing |
Surface Roughness: |
12.5, 6.3, 3.2, 1.6, 0.8 |
Ulstrasonic Test Level: |
En10228-3 |
Magnetic Particle Test: |
En10228-1 |
Liquid Penetration Test: |
En10228-2 |
Certificate: |
En 10204-3 3.1 or 3.2 |
Load: |
Drive Shaft |
Stiffness & Flexibility: |
Stiffness / Rigid Axle |
Axis Shape: |
Straight Shaft |
Shaft Shape: |
Stepped Shaft |

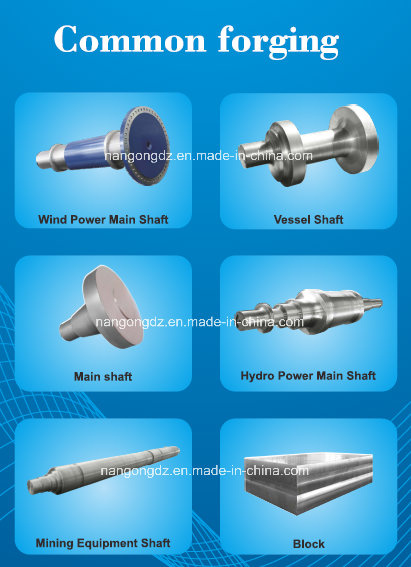

Nangong Forging is a forging factory with more than 20 years experiences in this field which can provide all kinds of forgings from 5kg to 60tons. The products ranges from wind turbine shaft, step-down shaft, rotor, gear, flange, hub, plate, block, bar, disc, ring, sleeve, pipe, coil, wire, etc.
All of the products are widely used in many areas as follows: Wind power, hydropower, thermal power, metallurgy, mining, petrochemical, ship building, energy, transportation, pressure vessel etc.
The production line comprise smelting, forging, rough machining, heat treatment and final machining.

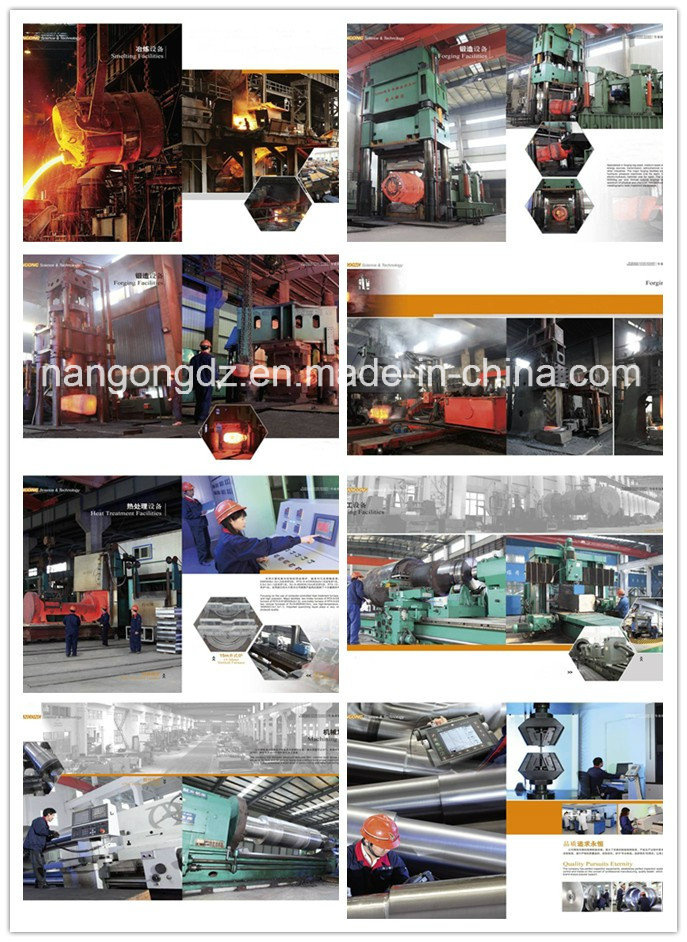

The major forging facilities including hydraulic pressure machines(2000T, 4000T and 6300T), electro-hydraulic hammer(3T, 5T), air hammer(560kg, 750kg, 1T), heat treatment furnaces and turning machines.
Nangong has acquired ISO9001: 2000, ISO14001: 2004, OHSAS18001: 2007, AD2000 W0, API Q1 and has been authorized by world class ship classification society such as BV, GL, CCS and PED certificate issued by European Union.
Nangong Forging are expecting to establish a long term business relationship with you.
