| Price: | US $ 1000-25000/Set |
|---|---|
| Trade Terms: | FOB,CFR,CIF |
| Min Order: | 1/Set |
| Pay Type: | L/C,T/T,D/P,Paypal,Money Gram |

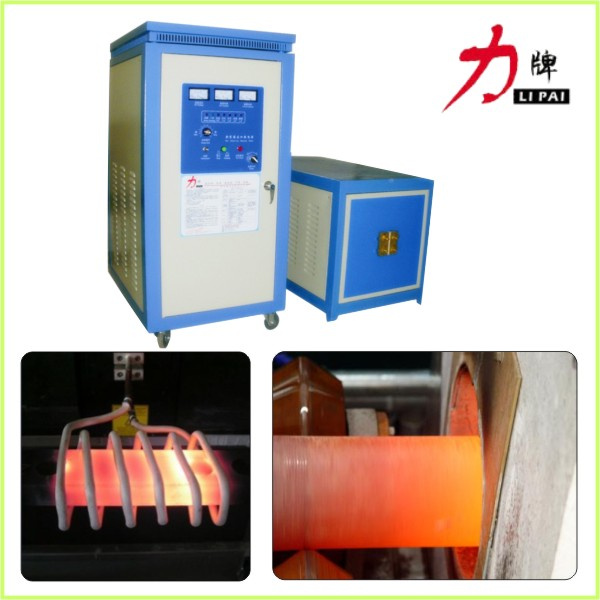

Advantages of Zhengzhou Gaos Induction Forging Machine:
1)Heating fast
this is the heating rate of less than 1 second (speed adjustable speed control)
2)Heating wide
wide range of metal parts can be heated (according to the different shape of the workpiece replacement of removable induction loop)
3)Easy installation
connect the power, induction loop and out of the water can be used; small size, light weight, easy to use
4)Simple operation
a few minutes to learn
5)Start fast
you can start with water after the heating power
6)Low power consumption
high-frequency device than the old-fashioned tube about 70% energy saving, the smaller the power consumption of the smaller parts
7)Good effect
the heating is very uniform (also by regulating the induction coil density, so that all parts of the workpiece to obtain their desired temperature), heating up fast, less oxide layer after annealing without waste
8)Adjustable power
The Promise adjust the output power
9)Protection all
with over voltage, over current, overheating, lack of water and other alarm indicator, and automatic control and protection
Applications of WH-VI-40kw Induction Forging Machine:
This model of WH-VI-40 induction heating furnace is particularly suitable for :
1.smaller bolt of hot forging.
2. forged hand tools.
3.gears,sprockets quenching.
4.cutter,geological drill welding.
5. non-ferrous metals,graphite crucible melting.
One---Heat treatment industry
1, a variety of steam, Motorcycle high-frequency hardening heat treatment, such as: crankshaft, connecting rod, piston pin, camshaft, valves, various gears within the gearbox, a variety of fork, all kinds of spline shaft, drive axle, various small shaft crank pin, a variety of rocker, rocker shaft, high-frequency hardening heat treatment.
2, the hardware high-frequency hardening heat treatment, such as pliers, hammers, strong pliers, wrenches.
3, hydraulic components such as: piston pump plunger, rotor pump rotor, conversion shaft of the valves, gear of gear pump high frequency quenching.
4, various electric tools gear shaft of the high-frequency hardening heat treatment.
5, a variety of carpentry tools, such as: axes, planing and other heat treatment.
Two---Forging industry
1, plate heating, bending and forming.
2, standard parts, fasteners through the hot forming.
3, the hardware tools through heat, such as pliers, wrenches and other heat through hot forming.
4, taper shank drill rod extrusion prospecting.
5, the pipe through the hot forming, such as bends and so on.
Three---Brazing
1, carbide cutting tools welding. Such as turning, milling, cutter knife.
2, the diamond saw blade welding. Such as diamond saw blade, abrasive, jagged welding. Exploration drill bit used in welding, such as word drill, drill welding horns.
3, brass, copper
Four---Smelting
Steel,iron, non-ferrous metals,graphite crucible smelting
10~40KHZ Series Induction Forging Machine Technology Parameter:
Model | Oscillation Frequency | Work Power | Cooling water flow (transformer) | Cooling water flow(host) | Max out put power | Max input current | Host weight (kg) | Transformer weight(kg) |
WH-VI-40 | 10-40KHZ | Three phrase380V50-60Hz |
18L/min (0.1MPa) | 15L/min(0.1MPa) | 40Kw | 62A | 40±5% | 29±5% |
WH-VI-50 | 20L/min (0.1MPa) | 50KW | 75A | 55±5% | 35±5% | |||
WH-VI-60 | 25L/min(0.1MPa) | 60KW | 90A | 65±5% | 50±5% |
Heat Treatment Euipment Selection Reference:
Model | Oscillation Frequency | hardening layer depth | Heating depth of metal bar steel billet diameter |
High Frequency | 50KHz~150KHz | 1.2~1.5mm | Less than 13mm |
Supersonic Frequency | 10KHz~50KHz | 2.0~2.5mm | 13~45mm |
Medium Frequency | 500Hz~10KHz | 3.5~6mm | 45~90mm |
Main Characteristics:
1 IGBT module and soft switching inverting technologies are as in the production of the generator, higher reliability can be do.
2 Small and portable ,compared with SCR controlled machine only 1/10 working space is needed.
3 High efficiency to save energy, high efficiency and power far can be maintained.
4 The generator is adaptable in a large frequency range from 1KHZ to 20KHZ,installation can be done very easily according to our manual.
5 100%duty cycle ,continuous working ability at maximum power.
6 Constant power or constant voltage control mode.
7 Display of output power, output frequency, and output voltage.
application range of industrial machine for queching/hardening :
It is mainly through the process of heating the workpiece , hardness of the metal then changes.Specific applications are as follows:
1:various hardware tools, hand tools. Such as pliers, wrench, hammer, ax, screwdriver, scissors (gardening scissors) and the quenching;
2:Various automotive, motorcycle accessories. Such as crankshaft, connecting rod, piston pin, wheel, aluminum wheels, valves, rocker shaft, drive axle, a small shaft, fork, etc. quenching;
3:various power tools. Such as gear, shaft;
4:the machine tool industry . Such as machine tool bed, Machine Tool, etc. quenching;
5:various hardware metal parts, machining parts. Such as shaft, gear (sprocket), cam, clamps, fixtures, etc. quenching;
6:the metal mold industries. Such as small mold, die attachment, die quenching the hole, etc.
parameters
| Model | WH-VI-40 | WH-VI-50 | WH-VI-60 |
| Work power | Three phrase 380v/50-60Hz | Three phrase 380v/50-60Hz | Three phrase 380v/50-60Hz |
| Max input current | 62A | 75A | 90A |
| Max output power | 40 kw | 50 kw | 60 kw |
| Cooling water pressure | 0.1-0.3mpa | 0.1-0.3mpa | 0.1-0.3mpa |
| Host weight | 45kg+/-5% | 55kg+/-5% | 65kg+/-5% |
| Transformer weight | 29kg+/-5% | 35kg+/-5% | 50kg+/-5% |
| Efficiency | 100% | 100% | 100% |
| Temperature protection | 50 degree | 50 degree | 50 degree |
advantages of industrial machine for queching\/hardening :
1. Heat source on the workpiece surface, fast heating, high thermal efficiency
2. As Artifacts are not whole heating, little deformation
3. The workpiece heating time is short, surface oxidation decarburization quantity is little
4. The surface hardness quality high, small notch sensitivity, impact toughness, fatigue strength and wear resistance are greatly improved. Conducive to play the potential of materials, saves the material consumption, improve the service life of the parts
5. Equipment is compact, easy to use, good working conditions
6. Easy to mechanization and automation
7. not only used in surface hardening can also be used in through the heat and chemical heat treatment, etc.
We can offer different services :
1. Reply your inquiry within 24 working hours
2. Experienced engineer instruct and sales communicate with you in fluent English.
3. According to work pieces specifications, heating requirements, propose best solutions,also reference your ideas.
4. Machine details and working video link for your reference
5. Competitive price ,compare with the same industry
6. Production: strict quality standard, to produce machine and induction coils.
7. Debugging machine and only good machine will be sent.
8. Tracking goods shipping and provide bill of lading,invoice,packing list and other documents what you need
Under all staff work hard, our products are more and more popular in domestic and foreign market. So far, LIPAI induction heating equipment has been exported to USA,Finland,Denmark,Poland,Portugal,Russia,Ukraine,Australia,New Zealand,Malaysia,Indonesia,Vietnam, India, Iran,Iraq,Uzbekistan, Kazakhstan,Turkey, Azerbaijan, Bulgaria, Macedonia, Brazil,Mexico,Chile, Argentina,,Ecuador, Algeria, Morocco, etc. other countries and regions.
We will be more efforts, more active, increasing promotion of products in the international market, make induction heating technology better do a due contribution to the development of human industry.
Warmly welcome customers from all over the world to order online or visit us for further negotiate cooperation
FAQ
1. What's your MOQ ?
At present we haven't strict policy for this,so welcome orders with any quantity.
2. Are you a manufacturer or trade company ?
Yes,you can assured that we are a producer with full experience doing business in domestic and oversea.
3. We are not professional for your machine....................
While it is not a stumbling block,our machine is easy to operate,no need to professional training,and the instruction manual and vedio sent to you are enough.What's more,we have professional engineers and they can solve all qoestions
4. How about packaging ?.......if machine damaged,what should I do ?
Usually machine is packed with wooden case and standard export carton,plywood carton or as your requirement.Damage haven't happened before,if happen,we will arrange replacement
5. We haven't do business before,how can I trust your company and machine ?
We have been GOLD supplier for three years with no complaints on Alibaba.and our machine have exported to Pakistan,Russia,Brazil,Egpt,India,South Africa and other countries and have a good feedback,If you need,we can provide their company names for your reference.
6. Have you done business with Chinese before ?
If yes,welcome to visit our factory
If not,donot worry about transportation,and we can arrange for you.
| Prod Model: | WH-40KW |
|---|---|
| Markets: | North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe |
| Model Number: | Wh-VI-40 |
| Voltage: | Three Phrase 380V/50-60Hz |
| Frequency: | 10-60kHz |
| Power(W): | 40kw |
| Max.Input Current: | 62A |
| Warranty: | 12months |
| Temperature Protection: | 50 Degree |
