4 Cloumn Hydraulic Presses, Hydraulic Press Machine (YQ27-1600)

Name: 4 Cloumn Hydraulic Presses, Hydraulic Press Machine (YQ27-1600)
Brand: china-castingforging.com
SKU: 679706795
Availability: InStock
Rating: 4.3 (62 reviews)

Price:	Negotiable/Piece
Trade Terms:	FOB,CFR
Min Order:	1/Set
Pay Type:	L/C,T/T

Contact Supplier

Jadestone Machine Tool Co., Ltd.

Showroom Product Company Profile

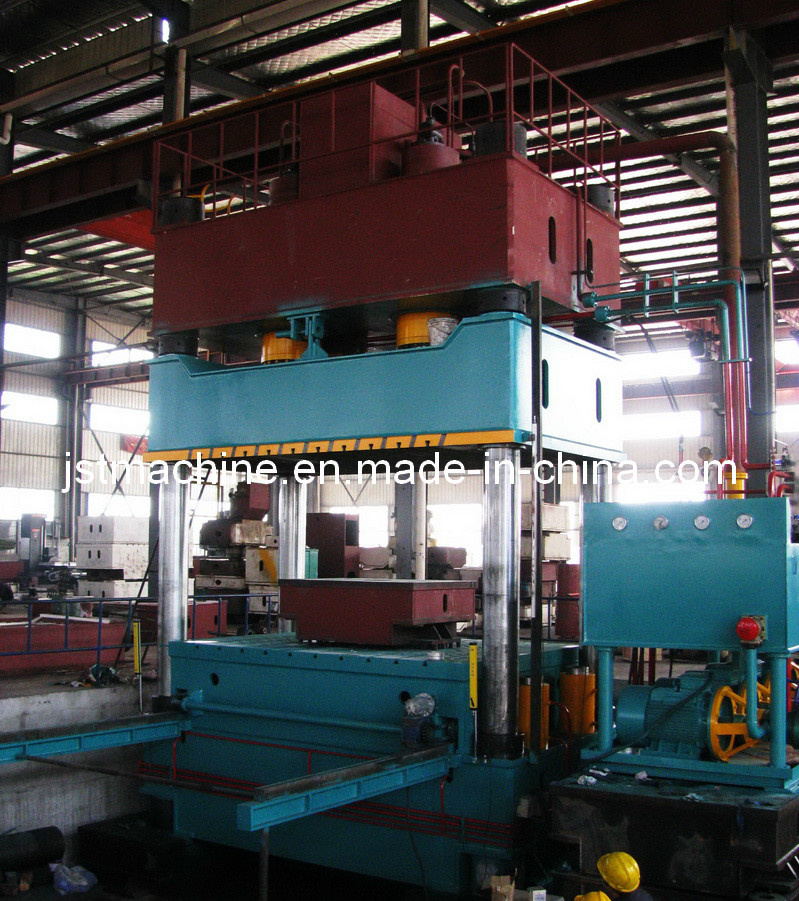

4 cloumn Hydraulic Presses, Press, Hydraulic Press Machine (YQ27-1600)

*4 Cloumn Hydraulic Presses(YQ27 series) is for stretching, bending, folding and punching metals. It can Specially apply for thin sheet Plate.

*Computer optimized structure design.

*Four-column structure: Simple, economic and practical.

*Cartridge valve equipped for hydraulic control system, reliable, durable and less hydraulic shock, shorter connection pipeline and fewer release points, Hydraulic integrated system is adopted separate control unit.

*Independent electrical control, reliable, audio-visual and convenient for maintenance.

*Centralized button control system (or by PLC), with adjustment, hand and semi-auto operateion modes at operator's choice(semi-automatic has two type tech: Set-stroke single and set-pressure single).

*The operating force, no-load traveling and, low-speed movement and travel range can be adjusted subject to technological requirements.

Model Specifications of Hydrauilc Presses. Press, Hydraulic Press Machine:

Description			YQ27-100	YQ27-160	YQ27-200	YQ27-250	YQ27-315	YQ27-400	YQ27-400A	YQ27-500	YQ27-500A
Rated force		kN	1000	1600	2000	2500	3150	4000	4000	5000	2500 2
Return force		kN	160	210	240	400	600	500	500	900	400 2
Ram stroke		mm	510	560	710	710	800	800	800	900	900
Max.daylight		mm	800	900	1120	1120	1250	1250	1250	1500	1500
Cushion force		kN	400	630	630	1000	1250	1250	1250	2000	2000
Cushion return force		kN	147	250	250	320	360	360	360	780	780
Cushion stroke		mm	200	200	250	250	300	300	300	350	350
Ram speed	Idle stroke	mm/s	100	110	150	130	100	130	130	120	150
	Pressing	mm/s	7-15	4-10	5-12	7-15	5-12	4-10	4-10	7-15	7-15
	Return	mm/s	85	65	95	90	60	70	70	80	90
Cushion speed	Knock out	mm/s	35	25	38	40	30	30	30	37	37
Cushion speed	Return	mm/s	100	65	95	110	100	100	100	95	95
Table size	L-R	mm	690	800	1000	1100	1260	1250	1750	1400	2200
Table size	F-B	mm	630	800	940	1000	1160	1250	1250	1400	1600
Cushion area	L-R	mm	350	500	670	670	820	820	1270	970	1720
Cushion area	F-B	mm	350	500	670	670	820	820	820	970	1120
Outline dimensions	L-R	mm	2500	2890	3100	3250	3100	3150	3700	5800	6600
	F-B	mm	1150	1250	1350	1350	2100	2300	2300	2600	2600
	Height above floor	mm	3400	3700	4000	4200	4800	5100	5250	5350	5550
Main motor capacity		kW	7.5	11	15	22	22	22	22	2 22	2 22

Prod Model:	YQ27-1600
Markets:	North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe
Color Refernce:	Blue
Forging Forming Method:	Mold Forging

Jadestone Machine Tool Co., Ltd is a high Technology Enterprise specializes in the Field of Metal Sheet Fabricating Industry with Highest Quality Standards 9001: 2001 and Powerful Facility and Productivity.

With Years of Exporting Experiences, we Devote and leading in Manufacturing, Research, Marketing and Puissant Ocean Freight capacity global in Metal Cutting, Bending Machine, CNC Punching Machine, Cast Iron and Moulds Design. Our sales network stretches all over the world, with our business conception of Honesty, Creation. Quality. And after Service. To optimize maximum benefits for various Customers with those High performance products, which awards highly praises and repeat orders continuously from different regions.

Apply Territory:
Our products are widely used in Decor, Metallurgy, Boat & Auto Industries. Elevator, and outside construction building.

Products Ranges:
CNC Press Brake
CNC Shearing Machine
Hydraulic Guillotine Shear
(Option with: Estun, Delem, Cybelec, Italy controller )
Punch Press( CNC punch and Power Press. Hydrauic Press)
Tooling Set for Machine model (Amada. Durma. LVD. Haco. Trumpf...)
Drilling Machine and Milling Machine
Production Line, Uncoiled, Cutting, Bending and Punching. Or can be separated ordered.

Shipments:
Shipments to European, North America. South America. Middle East, South-East Asian and Ocean Countries globally.

After Services:
Provide with technical Services. Training service. Maintenance services. Spare parts in Warranty.
Within 24 hours online Service
