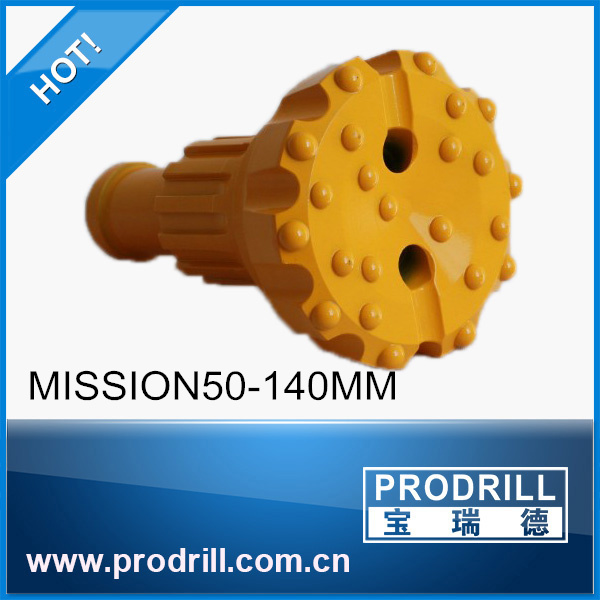

The characteristics of high air pressure DTH Button Bit:
1.Deliver maximum energy to drilling bit, fast drilling speed and low air consumption due to inner structure of HD series DTH hammer designed according to newest rock drilling theory.
2.Smooth performance and long service life of HD series DTH hammer due to high quality alloy steel materials and advanced processing technology adapted.
3.Low problem rate and easy to maintenance due to simple , reliable and easy assemble and disassemble inner structure of hammer.
4.Easy to depart bit from hammer due to multi-head thread connecting chuck and cylinder of hammer.
5.Interchangeable with DTH bit and dill pipe manufactured by Atlas copco and Ingersoll-rand.
Bit face shape selection:
1. Drop Center Bit
For high penetration rates in soft to medium hard and fissured rock formations. Low to medium air pressures. Maximum hole deviation control.
2. Concave Face
The all-round application bit face specifically for medium hard and homogenerous rock formations. Good hole deviation control and good flushing capacity.
3. Convex Face
For high penetration rates in soft to medium-hard with low to medium air pressures. It is the most resistance to steel wash, and may reduce the load and wear on the gauge buttons, but poor hole deviation control.
4. Double Gauge Face
This kind of face shape is suitable for fast penetration rates in medium to hard rock formations. Designed for high air pressures and good resistance to steel wash step gauge bit.
5. Flat Face Bit
This kind of face shape is suitable for hard to very hard and abrasive rock formations in applications with high air pressures. Good penetration rates an resistance to steel wash.
Carbide button shape selection:
1. Domed/Round Button
2. Parabolic/Semi-Ballistic Buttons
3. Ballistic Button
4. Sharp Button
5. Flat Button
Specification: | Diameter: (mm) | Weight: (kg) |
| Low air pressure DTH bits CIR type | 68 ~ 200 | 2.6 ~ 48 |
| Middle air pressure BR & COP type | 76 ~ 110 | 3.8 ~ 15 |
| 3 inch high Air pressure DTH bits | 85 / 90 / 95 / 100 / 105 | 4.2 ~ 5.5 |
| 4 inch high Air pressure DTH bits | 105 / 110 / 115 / 120 / 127 | 9 ~ 12 |
| 5 inch high Air pressure DTH bits | 133 / 140 / 146 / 152 / 165 | 15 ~ 18.5 |
| 6 inch high Air pressure DTH bits | 152 / 165 / 178 / 190 / 203 | 26 ~ 36 |
| 8 inch high Air pressure DTH bits | 195 / 203 / 216 / 254 / 305 | 33 ~ 95
|
-----------------------------------------------
Terms & Conditions of Ordering:
1 .Payment Terms: T/T (Telegraphic Transfer) or Western Union
2. Delivery Term:
Based on order quantity, normally it takes 25 days for production.
Only 2 or 3 days if we have stock on your request size.
3. Transportation:
Sample order: we suggest Courier express or by air
Bulk order: we suggest by air or by sea.
4. Quality & Service:
A. There will be strict inspection and testing for every order before shipping out.
B. Our sales team and Technical Support will response for your question within 24 hour.
C. Free replacement will provide once the failure confirmed caused or our product quality;
Not satisfied with a refund.
-----------------------------------------------
